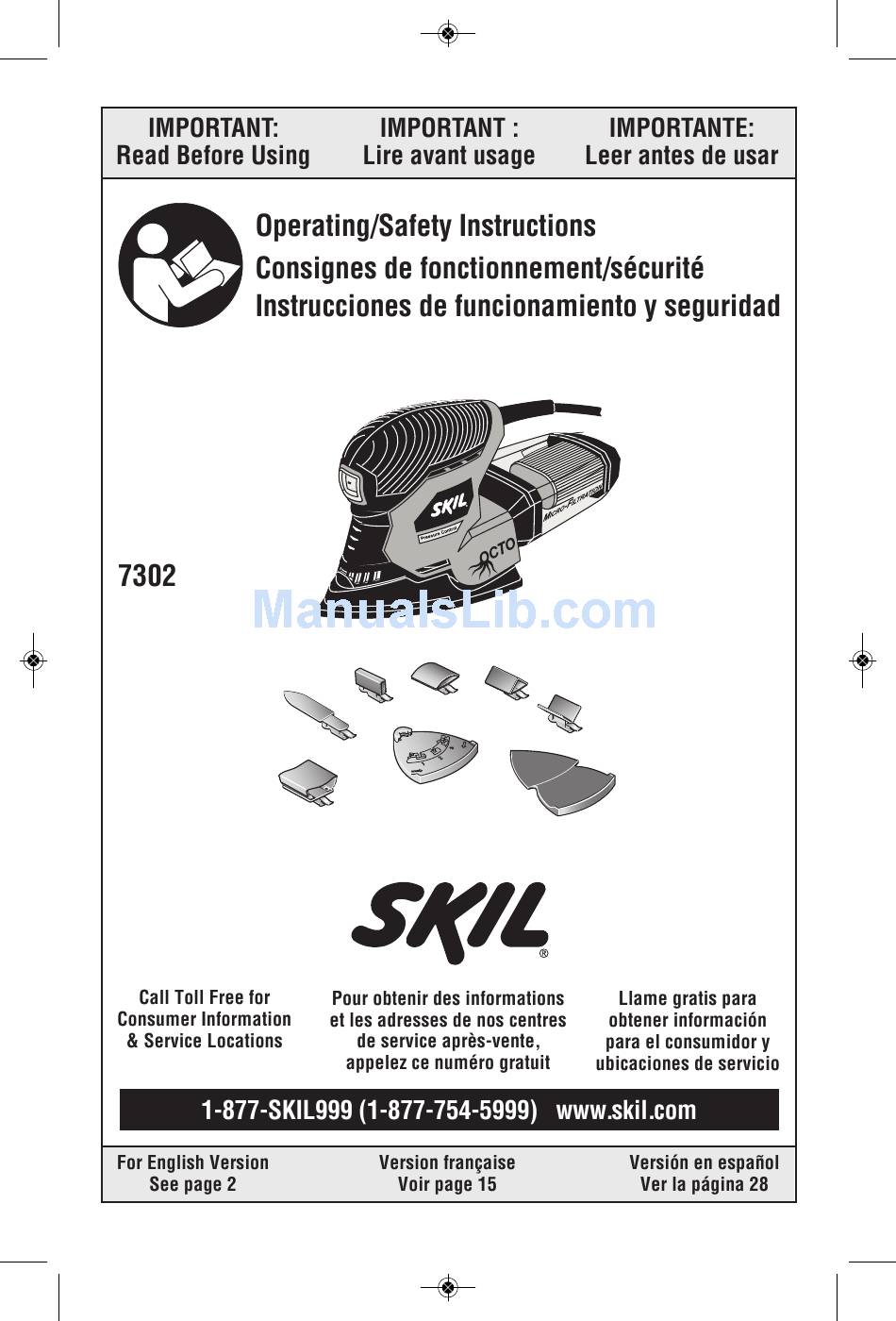

SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 1

Advertisement

Table of Contents
loading

Related Manuals for Skil 7302

Summary of Contents for Skil 7302

  • Page 1 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 1...

  • Page 2: General Power Tool Safety Warnings

    SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 2 General Power Tool Safety Warnings Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool”...
  • Page 3 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 3 Disconnect the plug from the power source poorly maintained power tools. and/or the battery pack from the power tool Keep cutting tools sharp and clean. Properly before making any adjustments, changing maintained cutting tools with sharp cutting accessories, or storing power tools.

  • Page 4: Additional Safety Warnings

    Certain cleaning agents such as gasoline, to filter out microscopic particles. carbon tetrachloride, ammonia, etc. may damage plastic parts. Risk of injury to user. The power cord must only be serviced by a Skil Factory Service Center or Authorized Skil Service Station.
  • Page 5 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 5 Symbols IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
  • Page 6 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 6 Symbols (continued) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

  • Page 7: Functional Description And Specifications

    SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 7 Functional Description and Specifications Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Multi-Finishing Sander Model number 7302...
  • Page 8 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 8 Assembly Disconnect the plug from be removed and attached without the need of additional tools. the power source before making any assembly, adjustments or To remove, press the pad/plate unlock button changing accessories.

  • Page 9: Attaching Accessories

    SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 9 EXTENSION PLATE backing pad and attach the extension plate When sanding in extremely tight areas, such as provided (Fig. 5). louvered panels, remove the hook-and-loop ATTACHING THE 3-POSITION To change position of attachment, simply lift ATTACHMENT SUPPORT PLATE release tab, swing attachment to desired notch Your sander also features a 3-position...

  • Page 10: Operating Instructions

    SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 10 Operating Instructions ROCKER “ON/OFF” SWITCH PRESSURE CONTROL TO TURN THE TOOL "ON" depress the Your tool is equipped with pressure control dust-protected switch to the number “I” position indicator lights. The indicator lights will let you (Fig.

  • Page 11: Tool Tips

    SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 11 Tool Tips This tool is particularly suitable for one handed overlap the strokes by as much as 75%. DO operation, and access to corners and edges NOT apply excessive pressure — let the tool that are otherwise difficult to reach and require do the work.
  • Page 12 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:11 AM Page 12 Application Advise Use the tool with its standard backing pad for The flexible sanding attachment is intended for large work surfaces, corners and edges rounding edged surfaces (Fig. 13a). (Fig. 11). The flexible sanding can also be used on all Use the tool with special sanding attachments rounded surfaces with a maximum diameter of...

  • Page 13: Tool Lubrication

    Cleaning by a Skil Factory Service Center or Authorized To avoid accidents always Skil Service Station. disconnect the tool from the power supply before cleaning or TOOL LUBRICATION performing any maintenance. The tool may...

  • Page 14: Troubleshooting

    Authorized Skil Service Center or Service Station.) 3. Inspect cord for damage. If damaged, have cord replaced by an Authorized Skil Service Center or Service Station.
  • Page 15 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 15...
  • Page 16 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 16...
  • Page 17 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 17...
  • Page 18 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 18...
  • Page 19 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 19...
  • Page 20 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 20...
  • Page 21 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 21...
  • Page 22 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 22...
  • Page 23 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 23...
  • Page 24 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 24...
  • Page 25 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 25...
  • Page 26 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 26...
  • Page 27 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 27...
  • Page 28 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 28...
  • Page 29 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 29...
  • Page 30 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 30...
  • Page 31 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 31...
  • Page 32 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 32...
  • Page 33 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 33...
  • Page 34 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 34...
  • Page 35 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 35...
  • Page 36 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 36...
  • Page 37 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 37...
  • Page 38 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 38...
  • Page 39 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 39...
  • Page 40 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 40...
  • Page 41 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 41...
  • Page 42 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 42...
  • Page 43 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 43...
  • Page 44 SM 2610011103 03-10:SM 2610011103 02-10 3/30/10 10:12 AM Page 44 2610011103 03/10 Printed in China...
