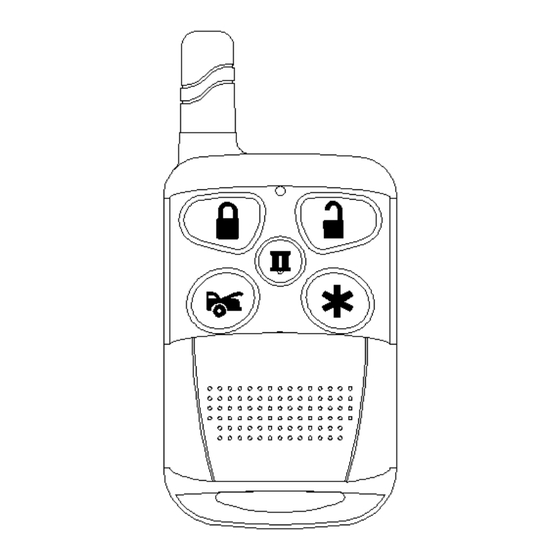

C3-RS-900LCD PROFESSIONAL 915 MHz. 2-WAY LCD REMOTE CAR STARTER & ALARM SYSTEM With Built in Temperature sensor And Two-way Serial Port Data Link Compatible Please see page 23 of this manual for more details OPERATION MANUAL Please register your product at: www.autopageusa.com THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY...
TABLE OF CONTENTS: LCD REMOTE TRANSMITTER: BATTERY REPLACEMENT THE REMOTE LCD ICONS WITH FUNCTION PROGRAMMING OF THE LCD REMOTE TRANSMITTER 1. Screen Lamp ON 2. Power Save Mode 3. Clear The Flash Icon and Melody Sound 4. Stop The Melody Sound. 5.
Page 3
TRIGGER THE SYSTEM Clear The Trigger Icons and Melody Sound Stop The Melody Sound Only Noise Abatement Circuit ANTI CAR- JACKING Active Anti Car Jacking Passive Anti Car Jacking Trigger The Anti Car Jacking Mode Override The System To Turn Off Anti Car Jacking SYSTEM’S TRIGGER CHECK SYSTEM’S STATUS CHECK DRIVER PAGING (OPTION)
Auto Page, Inc. has over 25 years of experience in the vehicle security industry in the United States and is a wholly owned subsidiary of Iwata Electric Co., of Tokyo, Japan. Iwata has been an industry leader for over 50 years, establishing a reputation for ingenuity in its engineering capability and innovative communication products.
WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3.
B. THE REMOTE LCD ICONS WITH FUNCTION: Door Lock Door Unlock Your vehicle doors are Your vehicle doors are locked unlocked and the system is disarmed Armed Mode Valet Mode Your vehicle is in armed All the function are mode temporarily on hold.
C: PROGRAMMING OF THE LCD REMOTE TRANSMITTER: Transmitter Button Description Operation LCD screen lamp turns on Press and hold for 1 second (1 second) 1 melody sound to confirm 5 seconds. enters. Time set mode. This is Press hold (3 seconds) used to set the clock and seconds timers on the remote...
4. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen will alert user through melody sound and flashing trigger icon. Press any button on the LCD remote transmitter to stop melody sound only. 5. Button Lock: This may be useful if you want to disable the transmission function of the remote control temporarily to prevent the inadvertent pressing of the buttons.
b. Press button for real time indication of when the timer is counting down. Out Of Range and Temperature Indication: If this feature is selected, the system will automatically check if you are within transmitting range and check the temperature every 30 minutes.
Page 10
3. Press the button once again, the “Minute” digit flashes for adjusting. 4. Press the button to decrease or increase the “Minutes” digit until AM 10:30 Press the button for 2 seconds with one-melody sound to confirm exiting the timer program mode. 2.
will show on the LCD screen. Press the button to stop the count down timer, and the “OFF” icon will show on the LCD screen. 8. Press the button for 2 seconds with one-melody sound to confirm exit of the timer program mode. Note: Maximum is 19 hours.
Page 12
Channel # 5 Timer Output (5) Channel # 6 Timer Output (6) LCD DISPLAY TRANSMITTER OPERATION ONLY: Transmitter Button System Function Remark System’s Trigger Record Press within 3 seconds Check System’s Status Check Press within 3 seconds Press within 3 seconds and Hold Button Lock button for 2 seconds...
C. LED display: Function Function Disarmed Zone 1 / Warn-Away Trigger 2 flashes... Slow Flash Armed Zone 2 / Trigger on Trunk/Hood pause 3 flashes... Flash Passive Starter Disable Zone 3 / Trigger on Door Switch pause 4 flashes... Zone 4 / Trigger on Shock Fast Flash Passive Arming pause...
System Arm Door Ajar Trunk / Hood Ajar Clear The Flash Icon: Pressing button 3 times within 3 seconds will clear the flash icon on the LCD screen transmitter. DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
and dome light will turn on for 30 seconds upon disarming when interfaced with the security system. System Disarm Doors Trigger Trunk/Hood Warn away Trigger Shock Sensor Ignition Trigger Trigger Trigger Clear The Flash Icon: Pressing the button 3 times within 3 seconds will clear the flash icon on the LCD screen transmitter.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE: Because the valet switch can be easily found, and defeated. This security system allows the consumer to program a password pin code offering a higher level of security. 1. Enter the vehicle and turn the ignition switch to the 'ON’ position. (Alarm will sound.) 2.
L. CAR LOCATOR Under armed mode, press the button to activate the car locator function. The siren will chirp 6 times. The parking light will flash 12 times, for you to easily locate your car. M. PANIC FUNCTION: The transmitter can be used as a remote panic switch to manually trigger the alarm in case of an emergency.
Ignition Trigger CLEAR THE FLASH ICON AND MELODY SOUND: While triggering the alarm the LCD screen will alert user through melody sounds and flashing trigger icons. Pressing the button 3 times within 3 seconds will clear the flashing icons and stop melody sound on the LCD screen transmitter.
a. The siren still be sounding and the parking lights remain flashing. b. The starter disable will activate to prevent the vehicle from starting. c. It will remain active until the vehicle's battery power exhausted or until the valet switch has been pushed with the ignition ON. OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING: Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will stop and the system will be disarmed...
sound shall be emitted from the vehicle. The paging melody sound continues sounding from your Remote LCD Transmitter and the“ ” indication flashes on the LCD screen. 3.Turn ON the ignition switch; OR press the button to arm the system; OR press the button to disarm the system.
W. CHANNEL 5 TIMER CONTROL OUTPUT Pressing the transmitter (5) and (5) buttons at the same time will activate the Channel 5 function. Channel 5 is user-programmable timer output. You may program the built-in timer to send a ground signal for any time duration from 1 second to 120 seconds.
button of the LCD screen transceiver. Back to 1st Car Operation: 1. Press the first, within 3 seconds press and hold buttons at the same time for 2 seconds. One long beeping sound and the “ ” timer icon will be displayed on the LCD screen indicating the system is back to the first transceiver pin code.
1. The user must press the transmitter button twice within 3 seconds to start the vehicle. or 2. The user must press the transmitter buttons at the same time to start the vehicle. B. TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START: To operate the vehicle while the engine is running on the remote start: 1.
3-hour timer start with Temperature-control OFF: This feature is designed for an extreme cold climate usage. The system will auto start the vehicle every 3 hours, to prevent engine from freezing. A MAXIMUM OF SIX CYCLES CAN OCCUR. 3-hours timer start with Temperature-control: If the temperature Sensor is active, the system can be programmed to automatically start the vehicle’s engine whenever the temperature inside the vehicle reaches or drops below the preprogrammed temperature level.
If the product proves defective (according to Auto Page's testing) within the first year, the defective unit may be exchanged or repaired free of charge.
Page 26
Auto Page with a money order in the amount of $30.00 to cover shipping and handling charges. Note: The product needs to be registered online at time of installation. www.autopageusa.com This WARRANTY will be considered void if the equipment has been misused, neglected, improperly serviced or installed, altered, dropped or damaged by water, contrary to the Auto Page OPERATIONS MANUAL.
Page 27
It is recommended to have a minimal digital service plan on your cell phone Your RS-900 is CI3 compatible and will open your world to the true power of two way communication. Complete tracking and full cell phone functionality can be added to your system. For more information please visit your local authorized Autopage dealer or go to www.autopageusa.com...
Page 28
Compatible 2-Way Communication to the Power of 3 960 Knox Street Unit B, Torrance, CA 90502 Tel: (310) 323-1800 or (800) 262-2527 www.autopageusa.com...
