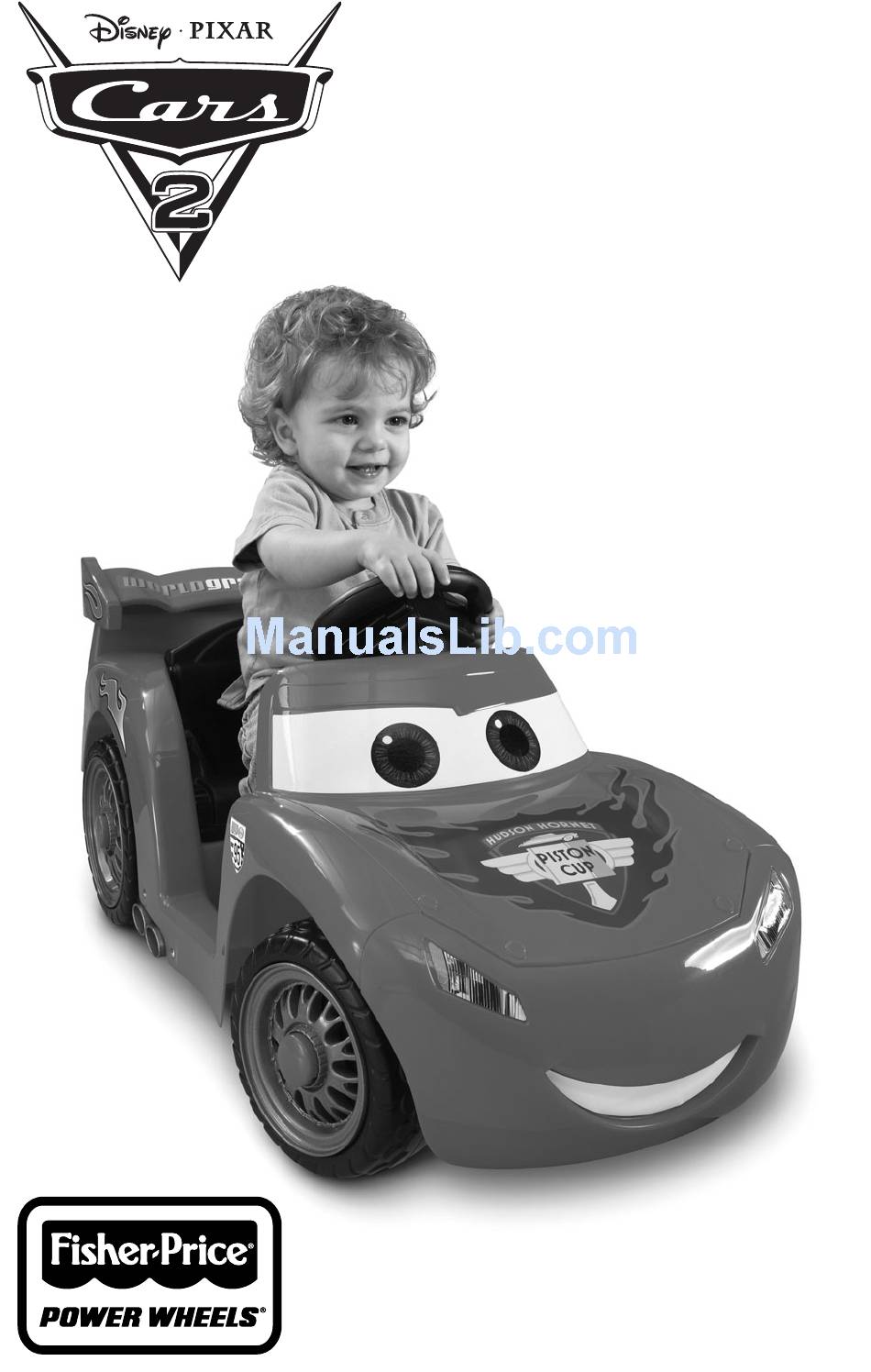

Lil' Lightning
M
QUEEN
C
• •
Please read this manual and save it with
Please read this manual and save it with
your original sales receipt.
your original sales receipt.
• •
Tools needed for assembly: Phillips
Tools needed for assembly: Phillips
Screwdriver, and slotted screwdriver
Screwdriver, and slotted screwdriver
(tools not included).
(tools not included).
• •
Use only with a Power Wheels
Use only with a Power Wheels
(4,0 Amp/Hr.) Rechargeable Battery with
(4,0 Amp/Hr.) Rechargeable Battery with
Built-in Thermal Fuse and a Power Wheels
Built-in Thermal Fuse and a Power Wheels
6 Volt (4,0 Amp/Hr.) Charger (both included).
6 Volt (4,0 Amp/Hr.) Charger (both included).
• •
Requires one "AA" (LR6)
Requires one "AA" (LR6)
(not included) for sound box operation.
(not included) for sound box operation.

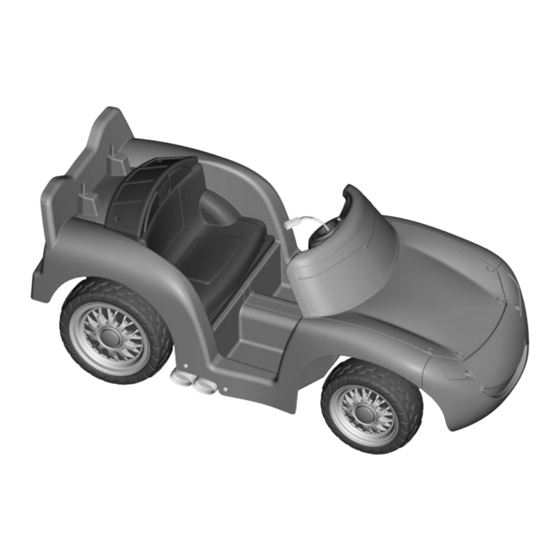

Product features may vary from the picture above.
Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
® ®
6 Volt
6 Volt
alkaline battery
alkaline
battery
For Model W2603
For Model W2603
® ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lil Lightning McQueen W2603 and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher-Price Lil Lightning McQueen W2603

Summary of Contents for Fisher-Price Lil Lightning McQueen W2603

  • Page 1 Lil’ Lightning QUEEN • • Please read this manual and save it with Please read this manual and save it with your original sales receipt. your original sales receipt. • • Tools needed for assembly: Phillips Tools needed for assembly: Phillips Screwdriver, and slotted screwdriver Screwdriver, and slotted screwdriver (tools not included).

  • Page 2: Electrical Hazard

    IMPORTANT INFORMATION ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fi re or explosion resulting in serious injury.
  • Page 3 ONLY outdoors. Most interior floor- representantes que hablan español para atender ing can be damaged by riding this vehicle indoors. su llamada. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. •...
  • Page 4 PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

  • Page 5: Parts Picture

    PARTS PICTURE Note: Fastener not shown. W2603pr-0920...

  • Page 6: Battery Charging

    BATTERY CHARGING ELECTRICAL HAZARD CAUTION WARNING Use the charger in dry locations only. • Battery can fall out and injure a child • Make sure you charge the battery for at least 18 hours if vehicle tips over. Always use using the enclosed Power Wheels ®...
  • Page 7 BATTERY CHARGING Battery must be upright while charging. • Remove the #8 x ¾" screw from the battery retainer. Lift to remove the battery retainer from the vehicle. • Plug the battery connector into the charger connector. • Lift to remove the battery from the battery compartment. •...
  • Page 8 ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 9 ASSEMBLY 1,5V x 1 “AA” (LR6) Screws Screws • Loosen the screw in the battery compartment door with a Phillips screwdriver. Remove the door. • Insert a "AA" (LR6) alkaline battery. Hint: We recommend using an alkaline battery for longer battery life. •...
  • Page 10 DECORATION • Wipe the vehicle with a clean, dry cloth to remove any oils before applying labels. • Apply labels exactly as shown in the illustrations. For best results, avoid repositioning the label after it has been applied. • Starting at the center of a label rub firmly with a dry cloth, and smooth towards the outer edges to remove air bubbles.

  • Page 11: Battery Installation

    BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels ® 6 volt (4,0 Amp/Hr) rechargeable battery. Use of any other battery will damage your vehicle. Battery Retainer Loosen these screws. • Remove the #8 x ¾" screw from the battery retainer. Lift to remove the battery retainer from the vehicle.
  • Page 12 BATTERY INSTALLATION Tighten these screws • Replace the battery retainer over the battery. Insert the #8 x ¾" screw through the battery retainer and into the vehicle. Tighten the screw. • Re-assemble the seat to the vehicle. Tighten the screws in the seat back with a Phillips screwdriver.

  • Page 13: Battery Care

    BATTERY CARE VEHICLE CARE If a battery leak develops, avoid contact with the • Check all screws and their protective coverings leaking acid and place the damaged battery in a plastic regularly and tighten as required. Check plastic parts bag. See next section for proper disposal. on a regular basis for cracks or broken pieces.

  • Page 14: Safe Driving Rules

    SAFE DRIVING RULES Before children use this vehicle, an adult should RIDING HAZARD carefully evaluate the driving area as well as the child’s skill level and ability to drive the vehicle safely. Teach WARNING appropriate safety rules to your child before allowing operation of this vehicle.

  • Page 15: Vehicle Operation

    VEHICLE OPERATION Sounds and Sounds and Sound Button Drive Button Language Switch Language Switch • Press the drive button on the steering wheel. The vehicle drives forward at a maximum speed of 2 mph. • Slide the language switch to: 1 for engine sounds;...

  • Page 16: Limited Warranty

    LIMITED WARRANTY FCC STATEMENT Bumper-to-Bumper* Limited Warranty (United States Only) This equipment has been tested and found to comply *One year limited warranty from the date of with the limits for a Class B digital device, pursuant to purchase on the Power Wheels ®...

  • Page 17: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. Consumer Relations, toll-free at 1-800-348-0751. If you still experience a problem, please contact Power Wheels ® Or, contact your local Power Wheels authorized service center.
  • Page 18 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle was running but Loose wires or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor connector, and that there are no loose wires around the motors. Tripped thermal fuse The built-in thermal fuse may "trip"...
  • Page 19 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the fi rst time. After fi rst-time use, recharge the battery for at least 14 hours after each use.
  • Page 20 ©Disney/Pixar Visit the Disney website at www.disney.com Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2011 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. unless otherwise indicated. PRINTED IN MEXICO...
