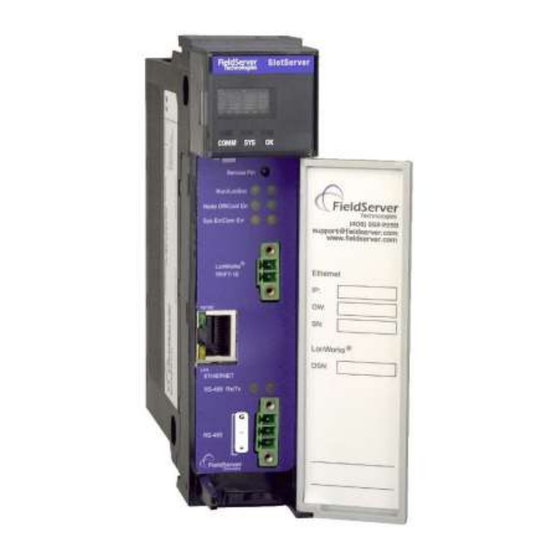

APPLICABILITY & EFFECTIVITY
This manual provides instructions for the following FieldServer products:
Description
PS56-BAS-xxx
PS56-FIR-xxx
PS56-PRO-407
The instructions are effective for the above as of January 2011
SlotServer Start-Up Guide
Kernel Version:
Document Revision:
A Sierra Monitor Company
6.04
1
Advertisement
Table of Contents
Related Manuals for FieldServer PS56-BAS-xxx
Summary of Contents for FieldServer PS56-BAS-xxx
- Page 1 A Sierra Monitor Company SlotServer Start-Up Guide APPLICABILITY & EFFECTIVITY This manual provides instructions for the following FieldServer products: Description PS56-BAS-xxx PS56-FIR-xxx PS56-PRO-407 The instructions are effective for the above as of January 2011 Kernel Version: 6.04 Document Revision:...
-
Page 2: Table Of Contents
SlotServer Start-up Guide Table of Contents TABLE OF CONTENTS Equipment Set-up ............................3 Supplied equipment............................3 Third Party Components (Not Supplied by FieldServer Technologies) ............3 Mounting ............................... 3 SlotServer Ports and Displays ........................4 Technical Specifications ..........................5 Installation ..............................6 Power up the device ............................ -
Page 3: Equipment Set-Up
All FieldServer Driver Supplements Support Utilities Any additional folders related to special files configured for a specific FieldServer Additional components as required - See Driver Manual Supplement for details Accessories: 2-way combi-comb connector for LonWorks port ... -
Page 4: Slotserver Ports And Displays
Network Manager. These fields are there to be utilized at the User’s discretion. Figure 1: Diagram of SlotServer showing ports and displays ProSoft Technology, Inc. is the exclusive provider of FieldServer SlotServers. For Technical Support call +1 661.716.5100... -
Page 5: Technical Specifications
ControlLogix 1756 Rack LonWorks Connection type: TP/FT-10 Ethernet port 10/100 MB/sec. RS-485 port 2-wire, half duplex. UL 60950-1:2003 Approvals CAN/CSA-C22.2 No.60950-1-03 Table 1: Product Specifications ProSoft Technology, Inc. is the exclusive provider of FieldServer SlotServers. For Technical Support call +1 661.716.5100... -
Page 6: Installation
Run the Install option and follow the installation instructions. Once installed, the FieldServer Utilities can be located in the Windows Start menu and as a desktop icon. Connect the PC to the SlotServer over the Ethernet port. ... -
Page 7: Upload The Default Configuration
The Remote User Interface Utility will fetch the default configuration and put it into the Configuration File folder (Start|Programs|FieldServerUtilities|Configuration File folder). Change the Configuration File to Meet the Application FieldServer Technologies offers training on this topic as well as a configuration service to complete this portion of the work. See www.fieldserver.com for specific details. ... -
Page 8: Appendix A. Useful Features
(Receive) light will flash red if the FieldServer is receiving data. The Tx (Transmit) RS-485 light will flash red if the FieldServer is sending data. (Note that due to the nature of (R1) 2-wire RS-485 the Rx light will flash every time the Tx light flashes too). The frequency of the flashing is directly related to the frequency of data transfer. -
Page 9: Appendix B. Troubleshooting
Using wrbc in these instances is more sensible and matches the method of writing through the entire process. ProSoft Technology, Inc. is the exclusive provider of FieldServer SlotServers. For Technical Support call +1 661.716.5100... -
Page 10: Appendix B.5. Asic Error On Soft Restart
Send this log together with the configuration file to support@fieldserver.com for evaluation. Note that while all necessary documentation is shipped with the FieldServer on the USB flash drive, these documents are constantly being updated. Newer versions may be available on the web at www.fieldserver.com. -
Page 11: Appendix C. Vendor Information
Note: When configured in remote rack applications, the SlotServer does not support the use of EN2T-A cards, but is compatible with EN2T-B cards. The principles for connecting other 1756 bridging cards to the SlotServer are similar. ProSoft Technology, Inc. is the exclusive provider of FieldServer SlotServers. For Technical Support call +1 661.716.5100... -
Page 12: Appendix D. Limited Warranty
In all cases FieldServer Technology’s responsibility and liability under this warranty shall be limited to the cost of the equipment. The purchaser must obtain shipping instructions for the prepaid return of any item under this warranty provision and compliance with such instruction shall be a condition of this warranty.
