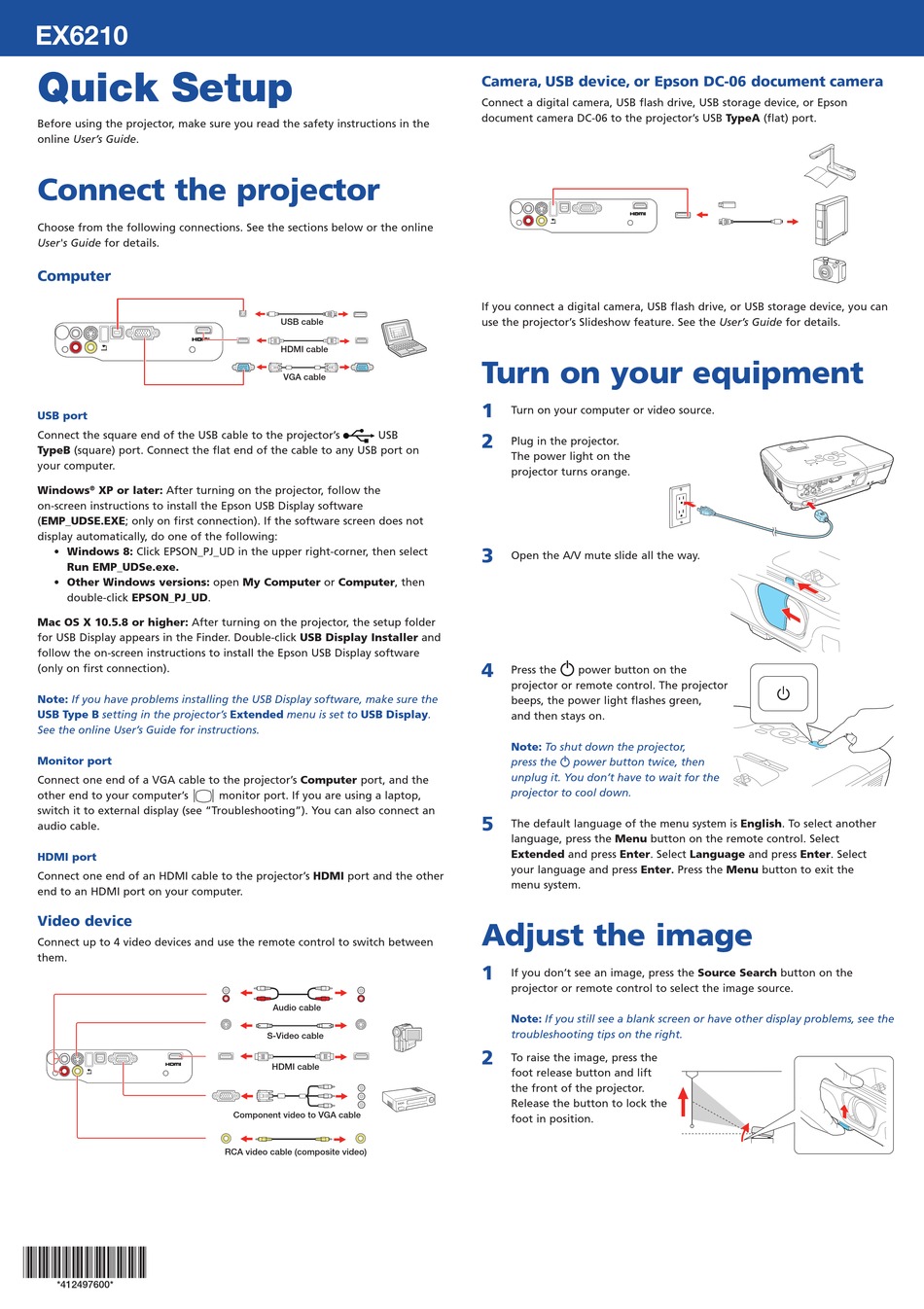

Epson EX6210 Quick Setup

EX6210

Quick Setup

Before using the projector, make sure you read the safety instructions in the
online User's Guide.
Connect the projector
Choose from the following connections. See the sections below or the online
User's Guide for details.
Computer
USB port
Connect the square end of the USB cable to the projector's
TypeB (square) port. Connect the flat end of the cable to any USB port on
your computer.
Windows XP or later: After turning on the projector, follow the
®
on-screen instructions to install the Epson USB Display software
(EMP_UDSE.EXE; only on first connection). If the software screen does not
display automatically, do one of the following:
• Windows 8: Click EPSON_PJ_UD in the upper right-corner, then select
Run EMP_UDSe.exe.
• Other Windows versions: open My Computer or Computer, then
double-click EPSON_PJ_UD.
Mac OS X 10.5.8 or higher: After turning on the projector, the setup folder
for USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection).
Note: If you have problems installing the USB Display software, make sure the
USB Type B setting in the projector's Extended menu is set to USB Display.
See the online User's Guide for instructions.
Monitor port
Connect one end of a VGA cable to the projector's Computer port, and the
other end to your computer's
switch it to external display (see "Troubleshooting"). You can also connect an
audio cable.
HDMI port
Connect one end of an HDMI cable to the projector's HDMI port and the other
end to an HDMI port on your computer.

Video device

Connect up to 4 video devices and use the remote control to switch between
them.
*412497600*
*412497600*
USB cable
HDMI cable
VGA cable
USB
monitor port. If you are using a laptop,
Audio cable
S-Video cable
HDMI cable
Component video to VGA cable
RCA video cable (composite video)
Camera, USB device, or Epson DC-06 document camera
Connect a digital camera, USB flash drive, USB storage device, or Epson
document camera DC-06 to the projector's USB TypeA (flat) port.
If you connect a digital camera, USB flash drive, or USB storage device, you can
use the projector's Slideshow feature. See the User's Guide for details.
Turn on your equipment
1
Turn on your computer or video source.
2
Plug in the projector.
The power light on the
projector turns orange.
3
Open the A/V mute slide all the way.
4
Press the power button on the
projector or remote control. The projector
beeps, the power light flashes green,
and then stays on.
Note: To shut down the projector,
press the power button twice, then
unplug it. You don't have to wait for the
projector to cool down.
5
The default language of the menu system is English. To select another
language, press the Menu button on the remote control. Select
Extended and press Enter. Select Language and press Enter. Select
your language and press Enter. Press the Menu button to exit the
menu system.

Adjust the image

1
If you don't see an image, press the Source Search button on the
projector or remote control to select the image source.
Note: If you still see a blank screen or have other display problems, see the
troubleshooting tips on the right.
2
To raise the image, press the
foot release button and lift
the front of the projector.
Release the button to lock the
foot in position.
