Whirlpool GI7FVCXX Product Dimensions

Whirlpool bottom mount refrigerator
Hide thumbs Also See for GI7FVCXX:

Advertisement

Quick Links

PRODUCT MODEL NUMBERS
GI7FVCXX
Electrical: A 115-volt, 60-Hz, AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate
circuit serving only your refrigerator be
provided. Use an outlet that cannot be turned
off by a switch. Do not use an extension
cord.
NOTE: Before performing any type of
installation, cleaning, or removing a light
bulb, turn the control (Thermostat,
Refrigerator or Freezer Control depending on
the model) to OFF and then disconnect the
refrigerator from the electrical source. When
you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired
setting. See "Using the Controls."
Water: A cold water supply with water
pressure between 30 and 120 psi (207 and
827 kPa) is required to operate ice maker
and water dispenser. If you have questions
about your water pressure, call a licensed,
qualified plumber.
IMPORTANT: The pressure of the water
coming out of a reverse osmosis system
going to the water inlet valve of the
refrigerator needs to be between 30 and
120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a
reverse osmosis water filtration system is
connected to your cold water supply, the
water pressure to the reverse osmosis
system needs to be a minimum of 40 to
60 psi (276 to 414 kPa).
LOCATION REQUIREMENTS
¹⁄₂
" (1.25 cm)
3³⁄₄
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Bottom Mount Refrigerator

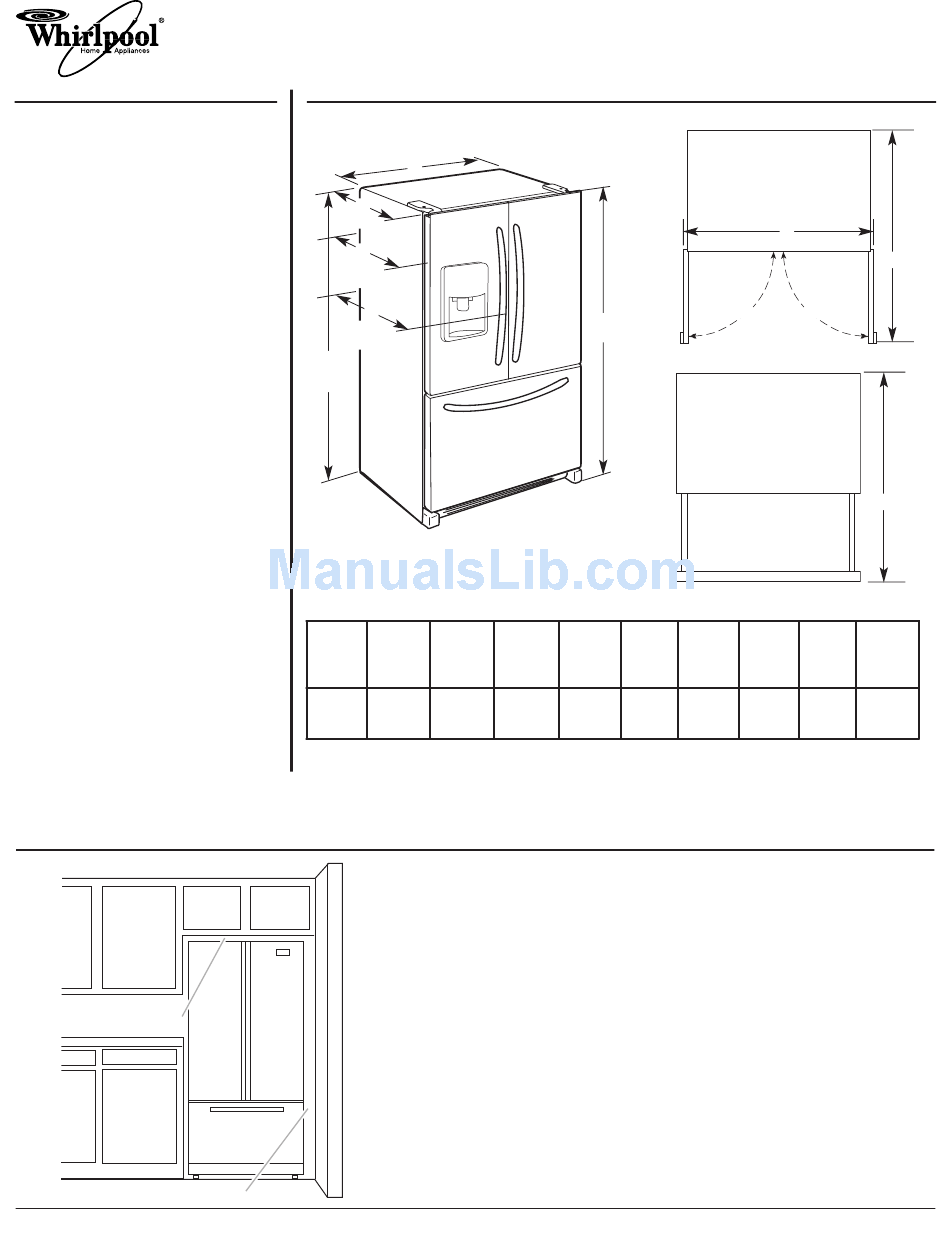

PRODUCT DIMENSIONS
G
cabinet
F
not incl.
handle
E
incl.
handle
B
top of
cabinet
Model Size
26.6 cu.ft.
(178.1 cm)
" (9.5 cm)
H
Height -
Depth -
Height -
Top of
Doors Open
Overall
Cabinet
90°
"A"
"B"
"C"
70
1
"
68
9
"
47
7
"
8
16
8
(174.2 cm)
(121.6 cm)
To ensure proper ventilation for your refrigerator, allow for a
each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If
your refrigerator has an ice maker, make sure you leave some extra space at the
back for the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 3
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source, nor in a location where the temperature will fall below
55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
90˚
A
overall
Depth -
Depth -
Depth -
Drawer
With
Without
Open
Handles
Handles
"D"
"E"
"F"
54"
35
1
"
32
7
"
4
8
(137.2 cm)
(89.5 cm)
(83.5 cm)
I
C
90˚
D
Depth -
Width -
Cabinet
Width -
Door Open
Only
Cabinet
90°
"G"
"H"
"I"
29
1
"
35
5
"
39
3
"
16
8
8
(73.8 cm)
(90.5 cm)
(100 cm)
1
" (1.25 cm) space on
2
" (9.5 cm)
3
4
Ref. W10322936A
12/21/10
