Agri-Fab 45-0357 Owner's Manual

3 pt. hitch landscape rake
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

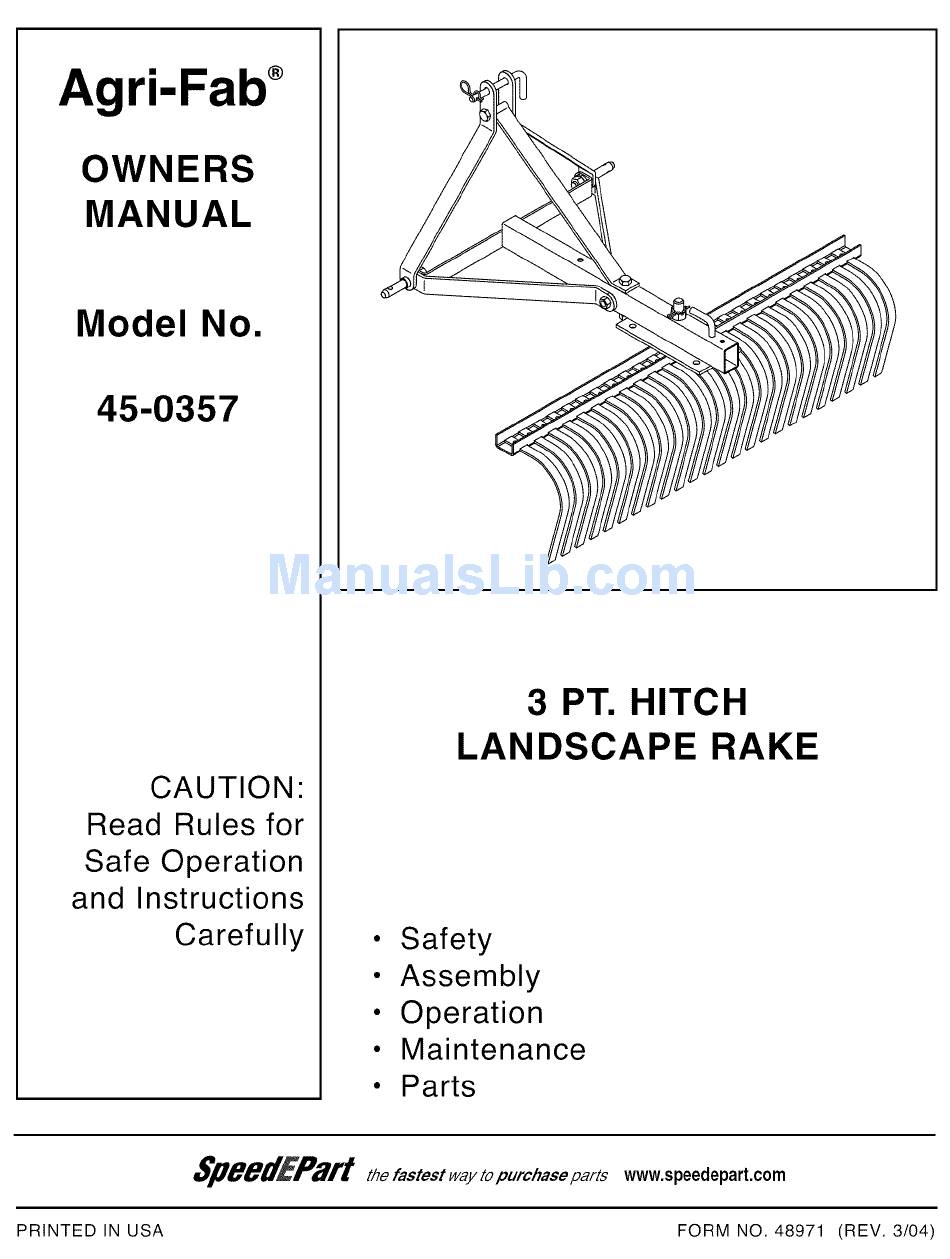

Agri-Fab ®
OWNERS
MANUAL
Model No.
45-0357
CAUTION
Read Rules for
Safe Operation
and Instructions
Carefully
3 PT. HITCH
LANDSCAPE
RAKE
• Safety
• Assembly
• Operation
• Maintenance
• Parts
SpeedEPart
the fastest way to purchase parts
www.speedepart.com
FORM NO. 48971
PRINTED
IN USA
(REV. 3/04)

Advertisement

loading

Related Manuals for Agri-Fab 45-0357

Summary of Contents for Agri-Fab 45-0357

  • Page 1 Agri-Fab ® OWNERS MANUAL Model No. 45-0357 3 PT. HITCH LANDSCAPE RAKE CAUTION Read Rules for Safe Operation and Instructions Carefully • Safety • Assembly • Operation • Maintenance • Parts SpeedEPart the fastest way to purchase parts www.speedepart.com FORM NO. 48971...

  • Page 2: Safety Rules

    SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. CAUTION: VEHICLE BRAKING IMPORTANT SAFETY PRECAUTIONS. ADDITION OF AN ACCESSORY OR AN MEANS - ATTENTION!
  • Page 3 PARTS PACKAGE CONTENTS - PARTS SHOWN ACTUAL SIZE QTY. DESCRIPTION QTY. DESCRIPTION Hex Bolt, 1/2" x 4" Lg. Hex Nut, Slotted, 1" Hex Bolt, 1/2" x 3-1/2" Lg. Nylock Nut, 1/2" Hex Bolt, 3/8" x 1" Lg. Cotter Pin, 3/16" x 2" Pivot Pin Lock Washer, 7/8"...

  • Page 4: Tools Required For Assembly

    ASSEMBLY Attach the mast assembly to the rake assembly sliding the mast assembly down over the threaded stud on the rake assembly. Put the forked end of the mast assembly on the front side of the rake TOOLS REQUIRED FOR ASSEMBLY assembly.
  • Page 5 Attach the mast support to the mast assembly Attach two mast sides to the mast support using a using a 1/2" x 4" hex bolt and 1/2" Nylock hex nut. 1/2" x 3-1/2" hex bolt and 1/2" Nylock hex nut. Use Use the hole located just in front of the threaded the end of the mast side with two holes, inserting stud.

  • Page 6: Operation

    To rotate the rake, first raise the rake so that the Lock the rake assembly to the mast assembly installing a pivot pin at the rear of the mast assem- tines of the rake are just off the ground. Remove bly.
  • Page 7 REPAIR PARTS FOR MODEL NO. 45-0357 3 PT. HITCH LANDSCAPE RAKE REF. PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION 48979 Mast Brace Category 1 Pin 25157 25158 Mast Side 64779 Mast Assembly 46526 Cotter Pin, 3/16" x 2" Hex Bolt, 1/2" x 3-1/2" Lg. 46855 43343 Haircotter...
  • Page 8 $#eedEPmrtthe _ as_es_ wa_ to purchase part_ w ww.speedepart.com REPAIR PARTS Agri-Fab, Inc. 303 West Raymond Sullivan, IL. 61951 217-728-8388 © 2004 Agri-Fab, Inc. www.agri-fab.com...
