Mr. Heater MH12T Operating Instructions And Owner's Manual

Enerco technical products/mr. heater in. operating instructions and owner's manual gas-fired infra-red portable heater mh12t, mh12ts
Hide thumbs
Table of Contents

Advertisement

Quick Links

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.

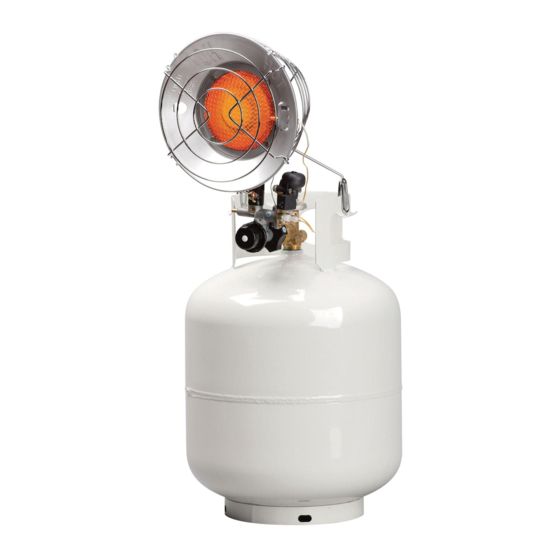

GAS-FIRED INFRA-RED
PORTABLE HEATER
CYLINDER NOT INCLUDED
If the information in this manual is not followed exactly, a fire or explo-
WARNING:
sion may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light appliance.
•
Extinguish any open flame.
•
Shut off gas to appliance.
— Service must be performed by a qualified service agency.
— DO NOT LEAVE HEATER UNATTENDED OR IN OPERATION WHILE SLEEPING
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to page 3.
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
MODEL
MH12T
MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500
Model #
MH12T
MH12TS
MODEL
MH12TS
06/03 Revision L1 #73103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH12T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mr. Heater MH12T

Summary of Contents for Mr. Heater MH12T

  • Page 1 This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to page 3. MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500 OPERATING INSTRUCTIONS AND OWNER’S MANUAL MODEL MH12T Model # MH12T MH12TS MODEL MH12TS...

  • Page 2: Table Of Contents

    WARNING: YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS, SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU OPERATE THIS HEATER. GENERAL HAZARD WARNING: FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOX- IDE POISONING, AND/OR ELECTRICAL SHOCK.

  • Page 3: Warnings

    HOOK-UP INFORMATION 1.1 Heater model MH12T and MH12TS are packaged completely. Propane cylinders (tanks) are not included with heater model. 1.2 Remove heater from carton. 1.3 Use only LP gas cylinders constructed for use with propane only (HD-5) and marked in accordance with the specifications for LP gas cylinders of the U.S.

  • Page 4: Odor Fade Warning

    1. GENERAL INFORMATION The Mr. Heater MH12T and the MH12TS are high pressure propane appliances and are designed to be connected to a bulk propane tank. Every unit is tested during manufacturing and shipped fully assembled except for bulk tank.

  • Page 5: Ventilation

    BTU/HR. RATING NORMAL CLEARANCES TO COMBUSTIBLES OPERATING MODEL FROM C.L. OF PROCEDURE HTR. TO FLOOR SIDES REAR CEILING PROPANE MH12T 14,000 Vertical 24” MH12TS Figure 4 Mr. Heater | Gas-Fired Infra-Red Portable Heater 5. ASSEMBLY PROCEDURE A. Make sure the regulator knob on the heater is “off” by turning knob clockwise to the “OFF”...

  • Page 6: Lighting Instructions

    Turn the heater’s “Hi-Med-Lo-Off” regulator knob to “Med” (counterclockwise). D. To light MH12T, place a lit match across the mesh screen where you see “light here” on reflector. (See Fig. 5) THEN push in valve button on Safety Shutoff Valve. After the heater is lit, continue to hold valve button in for 30 seconds, then release the button slowly.

  • Page 7: Parts List

    Mr. Heater • Gas-Fired Infra-Red Portable Heater • Model #MH12T and #MH12TS NOTE: WHEN LIGHTING BURNER WITH A MATCH OR TAPER, LIGHT AT SCREEN. (NOT AT ORIFICE) REPLACEMENT PARTS LIST FOR HEATER MODELS MH12T AND MH12TS REF.# ITEM# F273116 F273117...

  • Page 8: Parts Ordering Information

    MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500 Mr. Heater and Portable Buddy are registered trademarks of Enerco Group, Inc. © 2003, Enerco/Mr. Heater. All rights reserved Mr. Heater | Gas-Fired Infra-Red Portable Heater Operating Instructions and Owner’s Manual...

This manual is also suitable for:

Mh12ts
