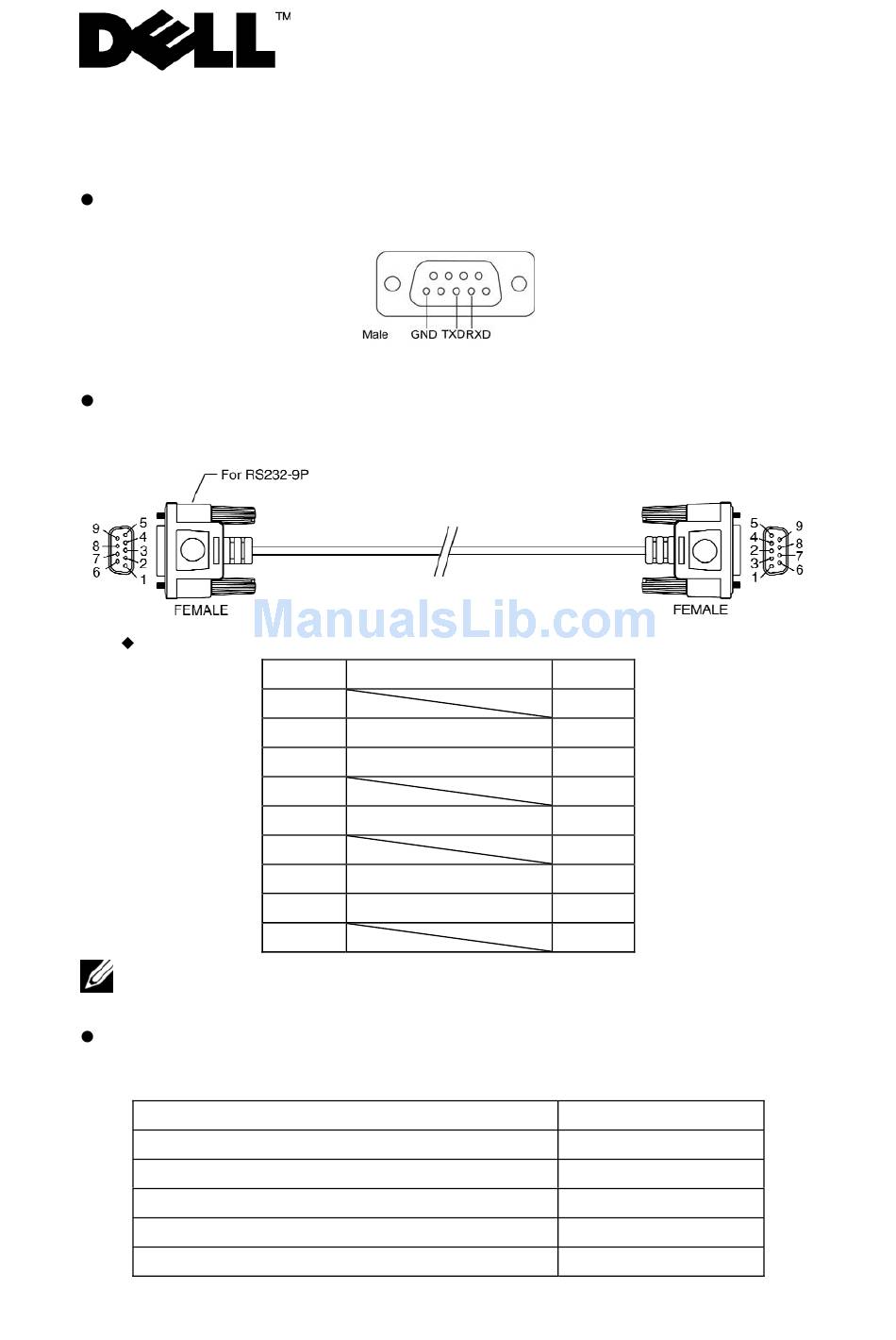

Dell™ S320/S320wi RS232 Protocol Document
RS232 Projector Pin Assignment (Facing Projector)
RS232 Serial Communication Cable Pin Assignment (Facing
Cable)
Pin Assignments
Note 1: The RS232 (pin2-3 swap) cable is not provided by Dell.
RS232 Protocol
Communication Settings
Connection Settings
Baud Rate
Data Bits
Parity
Stop Bits
Flow control
Command Types
RS232
PIN DESCRIPTION
1
2
TXD
3
RXD
4
5
GROUND
6
7
Not Used
8
Not Used
9
RS232
3
2
5
7
8
Value
19200 bps
8 bits
None
1 bit
None
