Panel Controls and Terminals

Panel Controls and Terminals
9
1 [STANDBY/ON] switch ................ page 11
For turning the power on or off.
2 [MASTER VOLUME] slider ........... page 13
For adjusting the volume level of the entire sound.
3 [METRONOME ON/OFF] button
..................................................... page 16
For using the metronome.
4 [SONG W W W W /A A A A ] button ................ page 14, 15
For playing the demo songs and the piano preset
songs.
5 [GRAND PIANO] button
.......................................... page 18-20, 22
For selecting voices from 10 internal sounds includ-
ing Grand Piano 1 and 2 (page 18). You can also
combine two voices (page 19) or add reverb effects to
the selected voice for your keyboard performance
(page 20).
10
NP-30/YNP-25 Owner's Manual
)

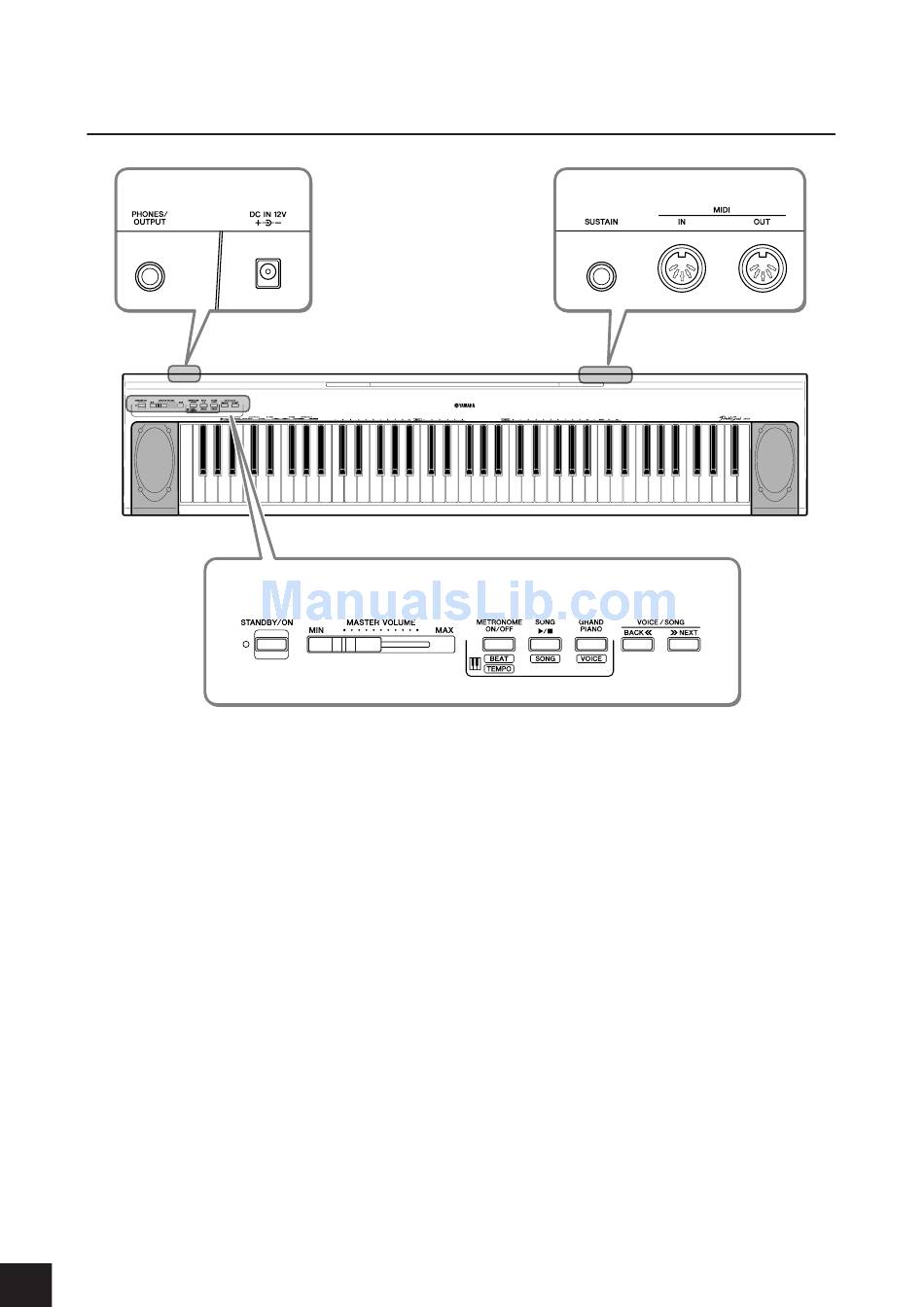

Shows the jacks and terminals
as seen when viewed from the
rear of the instrument.
1 2
7
Shows the jacks and terminals
as seen when viewed from the
rear of the instrument.
3 4 5 6
6 VOICE/SONG [BACK<<], [>>NEXT]
button ............................ pages 14, 15, 18
While playing a voice demo or piano preset song,
pressing these buttons can be selected next or previ-
ous song. These buttons can be also changed a voice.
7 [SUSTAIN] jack .............................page 13
For connecting an optional pedal (FC5), FC3 foot
pedal or FC4 foot switch.
8 MIDI [IN] [OUT] terminals ...........page 23
For connecting external MIDI devices, allowing the
use of various MIDI functions.
9 [PHONES/OUTPUT] jack ..............page 13
For connecting a set of standard stereo headphones,
allowing private practice.
) [DC IN 12V] jack...........................page 11
For connecting the power adaptor.
