Emerson W152 Specifications

Save space.
Save money.
Dimensions
T & P VALVE
(OPTIONAL)
COLD WATER INLET VALVE
(NOT SUPPLIED)
13.5"
W152
"
1 0 . 4
Job Specifications
HWD313-07A-45-02

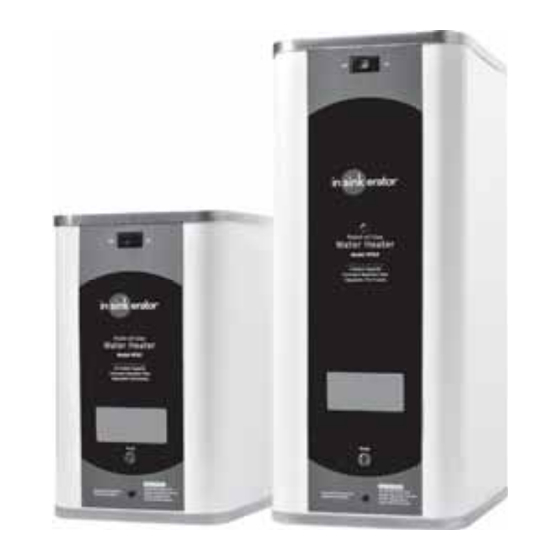

Point-of-Use Water Heaters
Model
W152 / W154
Economical, electric storage water heaters
that fit almost anywhere
Submittal Sheet
• Bronze, long-life storage tank.
Nothing to corrode or wear out.
• Screw-in copper heating element can be
easily replaced.
• Tank is insulated with expanded polystyrene,
then jacketed in steel for maximum heat
retention, minimum standby heat loss.
• Super fast recovery rate for better service.
• Drain provided for easy maintenance.
• Easy to install. Fits almost anywhere —
under sinks, in cabinets, etc.
• Adjustable temperature range of
110° to 170° F.
• Operates on ordinary house current.
• 3-1/2 foot cord and grounded plug.
• One year full warranty covers all parts,
labor and onsite repairs by an InSinkErator
service agency.*
Sample Specification
Point-of-use water heater(s) shall be
InSinkErator 2-1/2 gallon Model W152 or
4 gallon Model W154 with bronze storage
tank and adjustable temperature from 110°F
20.2"
to 170°F.
Warranty:
W154
1-year parts and on-site service. Limited 5-year
warranty against tank leakage.
* The complete InSinkErator warranty is included in the Care & Use
"
1 0 . 4 booklet packed with each unit.
1-800-558-5712
www.insinkerator.com
Printed in USA

Specifications

Tank Construction
Tank Volume
Voltage
Heating Capacity
Element Type
Temperature Range
Operating Pressure
Thermostat Type
First Hour Rating
(80°F Rise)
Water Connections
Pressure Relief
Connection
Overall Dimensions W152
must be InSinkErator compatible copper with bronze base.
x8025, 8030, 8083
Bronze
W152 / 2.5 gallons
W154 / 4 gallons
120 volts
1500 watts
Replaceable
Copper/Bronze
110°F – 170°F
150 psi (max.)
Resettable
W152 / 8.6 gallons
W154 / 10.4 gallons
1/2" NPT female
3/4" NPT female
W154
13.5"H 20.2"H
10.4"D 10.4"D
10.7"W 10.7"W
The Emerson logo is a trademark and
service mark of Emerson Electric Co.
InSinkErator is a division of
Emerson Electric Co.
© 2007 InSinkErator
