Summary of Contents for Electrolux EFP 629

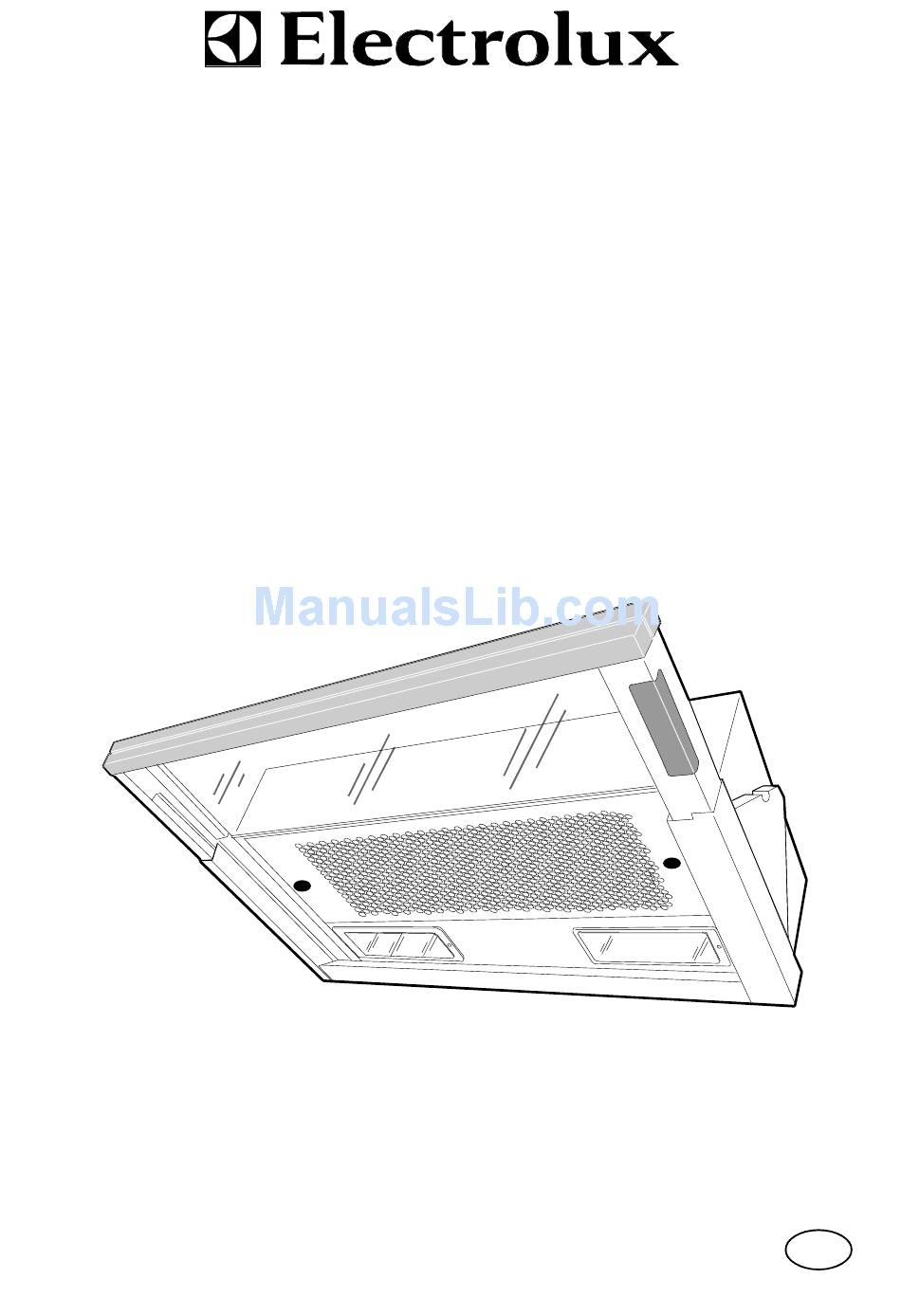

- Page 1 User Manual EFP 629...
-
Page 2: Table Of Contents
Contents Safety instructions ......................... 3 Description of the appliance ....................4 Function ...................................4 Special accessories ....................... 5 Active carbon filter ..............................5 Installation ..........................5 Unpacking ................................5 Placement ................................5 Electrical connection ............................... 5 Mounting under wall cabinet ........................... 5 Exhausting mode ..............................6 Recirculation mode (with carbon filter) ........................6 Using the hood ........................ -
Page 3: Safety Instructions
Congratulations to your new Cooker Hood Thank you for your choice of an Electrolux product. We are convinced that you will have great use and pleasure from your new cooker hood. Before you use the cooker hood we recommend that you read through the whole user manual giving a direct description of the cooker hood and its functions. -
Page 4: Description Of The Appliance
Description of the appliance 1. Motor speed switch 2. Light switch 3. Extractible drawer 4. Suction grid with grease filter 5. Hob light Standard accessories included: Template for mounting under cupboard Screws: Duct with no return valve Function The hood may be used as follows: Fig. -
Page 5: Special Accessories
Special accessories Active carbon filter When the hood is used in recirculation mode an active carbon filter should be used. Order by the retailer PNC 955 101 117 Installation Unpacking Check that the cooker hood has no damages. Transportation damages should immediately be 75 cm 65 cm reported to the one responsible for the transport... -
Page 6: Exhausting Mode
Exhausting mode Connect the air outlet to the smoke exhaust hose Fig. 7 Recirculation mode (with carbon filter) Open the grid (A - Fig. 7). Insert the filter into points I (Fig. 8) by making point L match up with point M and turn it in a clockwise direction, as indicated by the arrow D, until it is secured. -
Page 7: Maintenance
Important to know If the hood is run at the same time as a burner or fireplace that depend on ambient air (for example gas, Diesel, coal or wood heaters, water heaters, etc.) be careful, because the hood, when it exhausts the air, removes the ambient air required by the burner or fireplace for combustion. -
Page 8: If The Hood Does Not Function
If the hood does not function Before you make contact to service Check that the power plug is connected to the wall power outlet and that no fuse is blown. Do not do any operations that can cause hazard or damage to the product. -
Page 9: Technical Data
Technical data Model EFP 629 Capacity 240 m 185m Min. 175 m Dimension Height 175 mm Width 598 mm Depth 300 mm Light 2 x 40 W E 14 Grease filter 1 pc Mains Voltage 230 V Electric safety class Class 1 Power rating total 220 W... - Page 10 1007 AHS L 712 Ed. 03/96...
