Modular Cooking Range Line

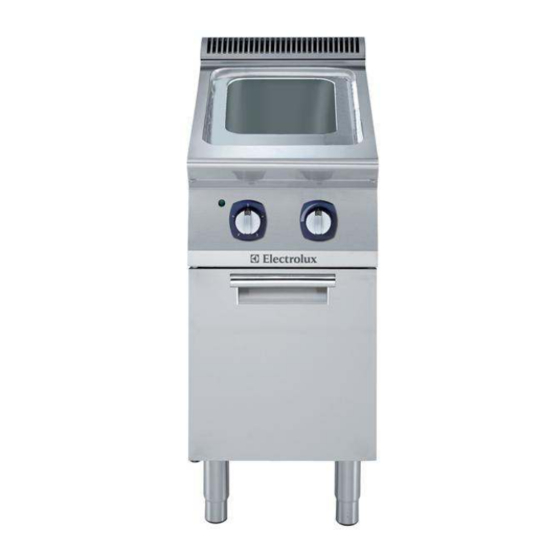

700XP Freestanding Electric
Pasta Cooker, 1 Well 24.5 litres
Modular Cooking Range Line
700XP Freestanding Electric Pasta
Cooker, 1 Well 24.5 litres
371098 (E7PCED1KF0)
Short Form Specification
Item No.
Infrared heating system positioned below the well. Constant starch removal
during the cooking process. Pressed tank in 316 AISI stainless steel to
protect against corrosion. Manual water tap. Height adjustable feet in
stainless steel. Exterior panels in stainless steel with Scotch Brite finish.
One piece pressed work top in 1.5 mm thick stainless steel. Right-angled
side edges to allow flush-fitting junction between units.
APPROVAL:
700XP FREESTANDING
ELECTRIC PASTA COOKER
24.5 LT WELL, 1 WELL - 400
V
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
In addition to cooking pasta, the appliance can be used for
noodles of every kind, rice, dumplings, vegetables and
soups for large or small servings.
Unit to have infared heating system positioned beneath the
base of the well.
Water basin in 316 type Stainless steel.
Water basin is seamlessly welded into the top of the
appliance.
Drainage surface is provided on which baskets can be placed
for draining purposes.
24.5 liters water basin.
Unit to feature skimming zone for starch removal: improved
water quality over time.
Easy-to-use control panel.
Safety thermostat to avoid operation without water.
Continuous water filling regulated through a manual water
tap.
Large drain with manual ball-valve for fast emptying of well.
ESD available as accessory (installed separately): energy
saving device uses heat produced by water drained through
the overflow to pre-heat tap-in water up to 60°C, for constant
water boiling.
EnergyControl: unique feature for fine power control to
control boiling level and optimize energy consumption.
Automatic lifting system (optional accessory): 200mm
wide unit with two stainless steel basket supports, holding
one GN 1/2 basket each, to be placed on either or both sides
of machine to provide automatic lifting for four small portion
baskets (to be ordered separately). Possibility to memorize
nine cooking times through digital control.
All major compartments located in front of unit for ease of
maintenance.
IPX4 water resistance certification.
Unit delivered with four 50 mm legs in stainless steel as
standard (all round Stainless steel kick plates as option).
Construction
Exterior panels in Stainless Steel with Scotch Brite
finish.
One piece pressed 1.5 mm work top in Stainless steel.
Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.
Included Accessories
Optional Accessories
Flanged feet kit
Kit 4 feet for concrete installation (not for
900 line free standing grill)
Pair of side kicking strips for concrete
installation
Water column with swivel arm (water
column extension not included)
Water column extension for 700 line
PNC 206136
PNC 206210
PNC 206265
PNC 206289
PNC 206291

Advertisement

Table of Contents
loading

  Related Manuals for Electrolux 371098 (E7PCED1KF0

  Summary of Contents for Electrolux 371098 (E7PCED1KF0

  • Page 1 900 line free standing grill) Pair of side kicking strips for concrete PNC 206265 installation Water column with swivel arm (water PNC 206289 column extension not included) Water column extension for 700 line PNC 206291 APPROVAL: Electrolux Professional www.electrolux.com/foodservice foodservice@electrolux.com...
  • Page 2 Modular Cooking Range Line 700XP Freestanding Electric Pasta Cooker, 1 Well 24.5 litres Support frame for 4 baskets for 24,5lt pasta PNC 921606 cookers Lid for 24,5lt pasta cookers PNC 921607 2 half size baskets 170x220 for 24,5lt pasta PNC 921610 cookers Full size basket for 24,5lt pasta cookers PNC 921611...
  • Page 3 Incoming Cold Water line size: 1/2" Total hardness: 5-50 ppm Electrolux recommends the use of treated water, based on testing of specific water conditions. Please refer to user manual for detailed water quality information. Key Information: Usable well dimensions (width):...
