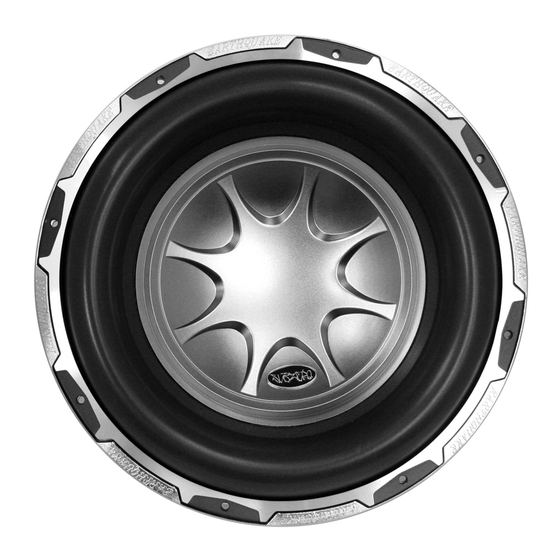

SUBZERO-15
2500 WATTS
Winner of the 2004
Design & Engineering Award
INNOVATIONS
INTERNATIONAL CES

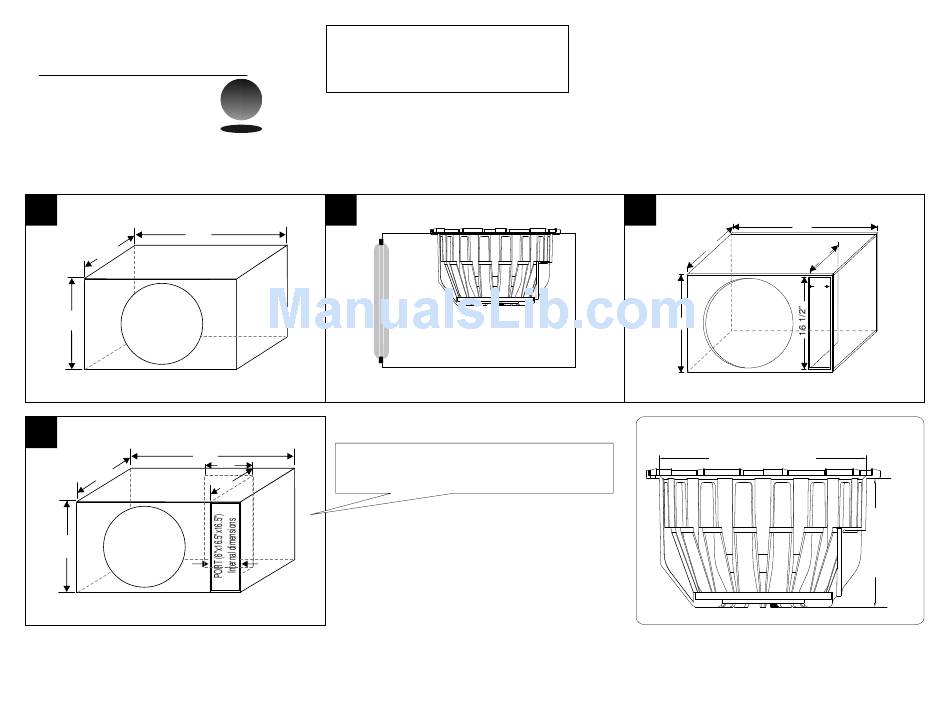

Sealed design for tight bass
#1
17"
15 "
18"
Subzero-15
Outer dimension shown using 3/4" thick MDF.
Bass head design for competition
#4
25"
20"
18"
Subzero-15
Outer dimension shown using 3/4" thick MDF.
Specifications are subject to change without notice
1" = 2.54 cm
1 cubic foot = 1728 cubic inches
Grille Clearance: 2"
Displacement: .3 Cube Feet
Passive tuned design for deep bass small volume
#2
Drone Tuned Box
VB = 3 ft3
FB = optimized with
SLAPS-15 passive
Outer dimension shown using 3/4" thick MDF.
FOR 44Hz Tuning: Port length equals 26"
3"
FOR 60Hz Tuning: Port length equals 16 1/2"
13 1/2"
Ported design
#3
14"
18"
Outer dimension shown using 3/4" thick MDF
SUBZERO-15
Cut out hole 369mm / 14 1/2"
HANDCRAFTED IN USA.
23"
10 1/2"
5"
Mounting
depth
220mm
8 3/4"
Advertisement
Related Manuals for EarthQuake Subzero-15
Summary of Contents for EarthQuake Subzero-15
- Page 1 SUBZERO-15 1” = 2.54 cm 1 cubic foot = 1728 cubic inches 2500 WATTS Grille Clearance: 2” Displacement: .3 Cube Feet Winner of the 2004 Design & Engineering Award INNOVATIONS INTERNATIONAL CES Sealed design for tight bass Passive tuned design for deep bass small volume Ported design 23”...
- Page 2 HOW TO WIRE / FUSE YOUR PSP (Parallel Series Parallel) Terminal SUBZERO TO AN AMPLIFIER 2-channel 2-channel 1-channel The Subzero subwoofer 2-ohm load 2 x 4-ohm load 8-ohm load comes equipped with 2 (voice coils in parallel) (voice coils separated) (voice coils in series) voice coils (dual 2x4 (using 2 fuses)
- Page 3 Electro Mechanical Parameters Name = EARTHQUAKE SUB-ZERO 15 (broken in) Xmax = 31.7500E-3 M Note = VI MEASURMENTS Krm = 35.4970E-3 Ohm Model = TSL Erm = 800.0000E-3 Domain = FreeAir Kxm = 209.1940E-3 H Shape = Round Exm = 677.0000E-3 Profile = Cone Rms = 4.4866 N·S/M...
