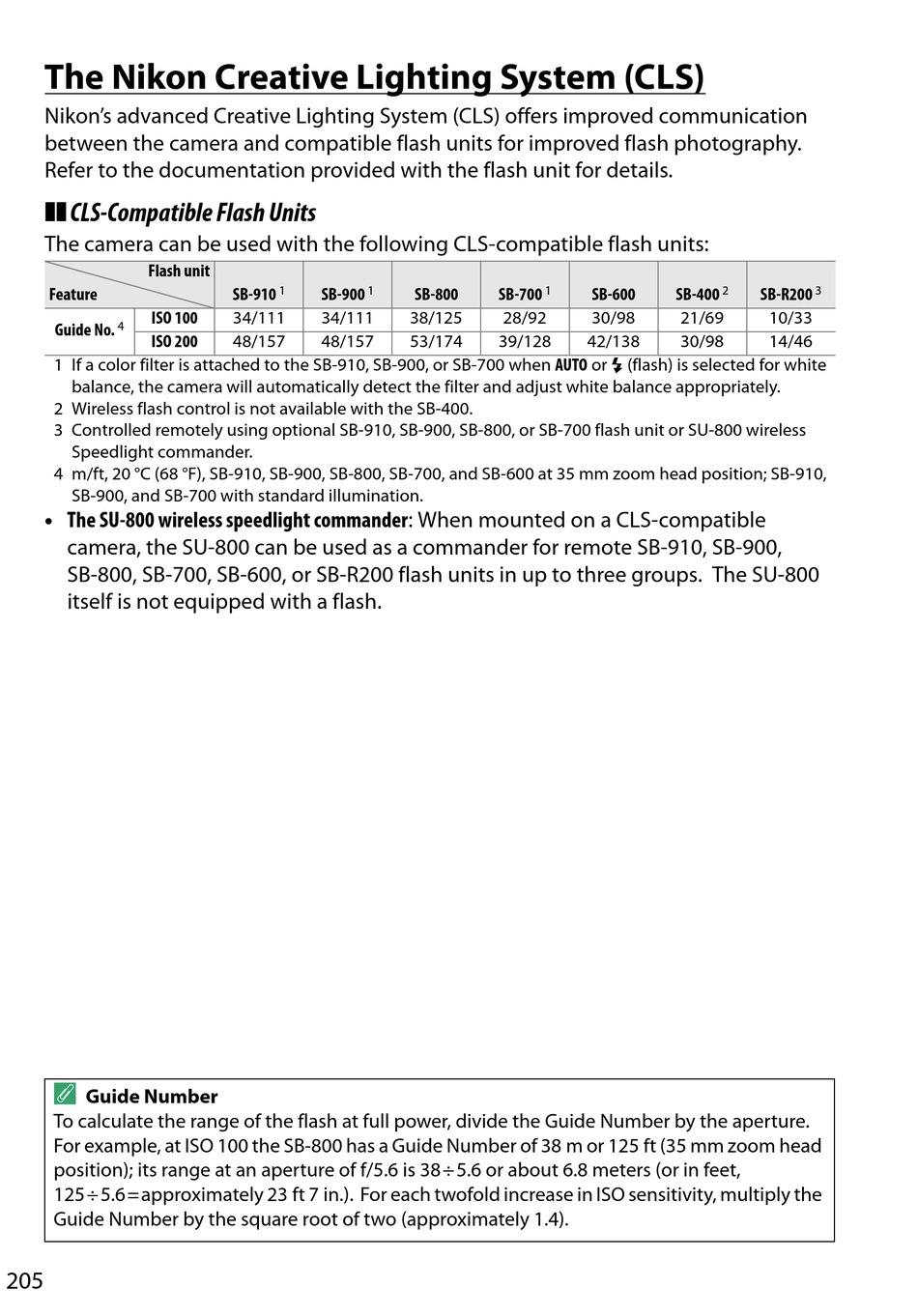

The Nikon Creative Lighting System (CLS)

Nikon's advanced Creative Lighting System (CLS) offers improved communication
between the camera and compatible flash units for improved flash photography.
Refer to the documentation provided with the flash unit for details.
CLS-Compatible Flash Units
The camera can be used with the following CLS-compatible flash units:
Flash unit
Feature
ISO 100
4
Guide No.
ISO 200
1 If a color filter is attached to the SB-910, SB-900, or SB-700 when AUTO or N (flash) is selected for white
balance, the camera will automatically detect the filter and adjust white balance appropriately.
2 Wireless flash control is not available with the SB-400.
3 Controlled remotely using optional SB-910, SB-900, SB-800, or SB-700 flash unit or SU-800 wireless
Speedlight commander.
4 m/ft, 20 °C (68 °F), SB-910, SB-900, SB-800, SB-700, and SB-600 at 35 mm zoom head position; SB-910,
SB-900, and SB-700 with standard illumination.
• The SU-800 wireless speedlight commander: When mounted on a CLS-compatible
camera, the SU-800 can be used as a commander for remote SB-910, SB-900,
SB-800, SB-700, SB-600, or SB-R200 flash units in up to three groups. The SU-800
itself is not equipped with a flash.
A
Guide Number
To calculate the range of the flash at full power, divide the Guide Number by the aperture.
For example, at ISO 100 the SB-800 has a Guide Number of 38 m or 125 ft (35 mm zoom head
position); its range at an aperture of f/5.6 is 38÷5.6 or about 6.8 meters (or in feet,
125÷5.6=approximately 23 ft 7 in.). For each twofold increase in ISO sensitivity, multiply the
Guide Number by the square root of two (approximately 1.4).
205
1 1
SB-910 SB-900
34/111 34/111
48/157 48/157
1
SB-800 SB-700
38/125 28/92
53/174 39/128
2
SB-600 SB-400
30/98 21/69
42/138 30/98
3
SB-R200
10/33
14/46
