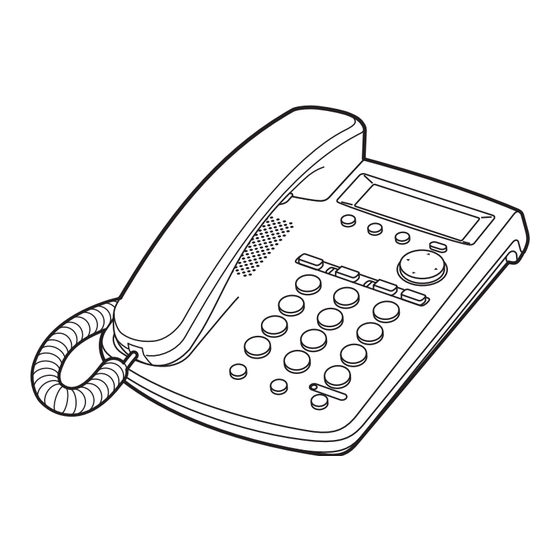

Quick Reference Guide
SIP Telephone
KX-HGT100
Model No.
Thank you for purchasing a SIP Telephone. Please read this
manual carefully before using this product and save this manual for
future use.
For more details, please refer to the manuals of the PBX.
Accessories (included)
*1
Handset
Handset Cord
Ferrite Core
One
One
One
*1
For AC adaptor (not included).
This model supports the following PBX version and CODEC
types:
KX-NCP500/KX-NCP1000: PBMPR Software File Version 1.0000 or later
KX-TDE600: PGMPR Software File Version 2.0000 or later
KX-TDE100/KX-TDE200: PMMPR Software File Version 2.0100 or later
CODEC: G.729A, G.711
Document Version 2008-08
Advertisement
Table of Contents
Related Manuals for Panasonic KX-HGT100B
Summary of Contents for Panasonic KX-HGT100B
-
Page 1: Quick Reference Guide

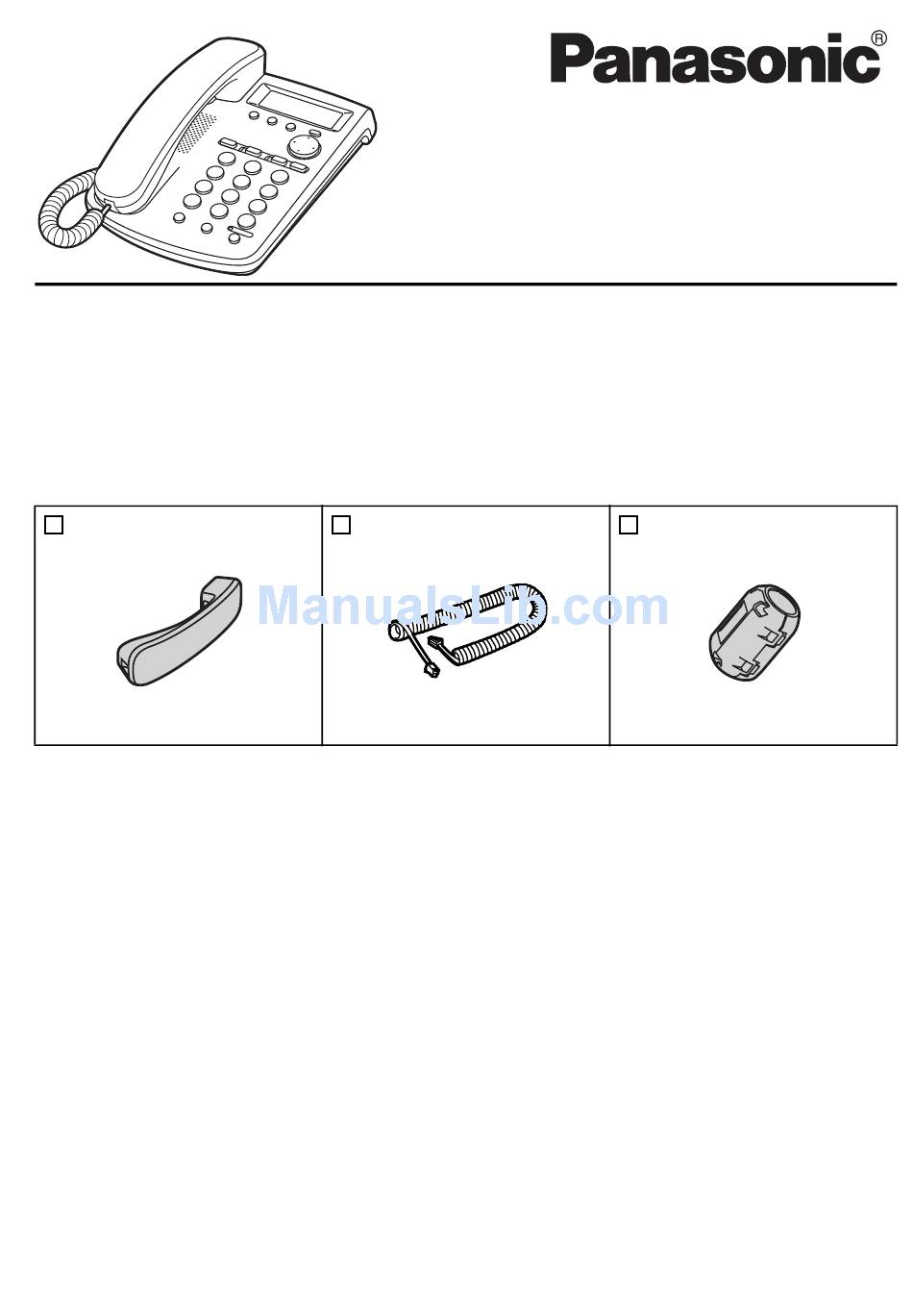

Quick Reference Guide SIP Telephone KX-HGT100 Model No. Thank you for purchasing a SIP Telephone. Please read this manual carefully before using this product and save this manual for future use. For more details, please refer to the manuals of the PBX. Accessories (included) Handset Handset Cord... -
Page 2: Location Of Controls
Location of Controls Location of Controls Document Version 2008-08... - Page 3 Location of Controls A LCD (Liquid Crystal J SP-PHONE (Speakerphone)/ Display) HEADSET : Used for performing hands-free B Headset Jack operations. Also used to C PROGRAM/EXIT: Used to make or answer calls if a enter and exit the personal headset is connected. programming mode.
-
Page 4: Initial Settings
Settings Settings Initial Settings You can program the following functions using the LCD display. Note: = Confirmation Tone C. Tone Program Settings See page 6. Save speed dial? While on-hook year (2 digits) Month.Day (4 digits) select Set date & time hour minute "AM/PM/... - Page 5 Settings Program Settings For DHCP Setting While on-hook C. Tone For STATIC IP Setting Set network While on-hook IP address (12 digits) subnet mask (12 digits) default gateway (12 d igits) C. Tone Speaker/Handset/Headset/Ringer Volume Speaker volume While in a hands-free conversation Handset/Headset While using the handset or...
-
Page 6: Features List
Features List Features List Icon Meanings = Off-hook = On-hook = Feature number = Talk = Confirmation Tone C. Tone Making Calls Calling To an extension To an outside party extension no. outside phone no. To temporarily change the default "My Caller ID" setting To prevent (not show) outside phone no. -
Page 7: During A Conversation
Features List System Speed Dialing To dial system speed dial no. (3 digits) Doorphone Call doorphone no. (2 digits) During a Conversation Call Hold To hold To retrieve a call at the holding extension Call Transfer extension no. To an extension To an outside outside phone no. - Page 8 Features List Making Use of the Voice Mail Service Note: VPS = Voice Processing System Listening to a message While the MESSAGE indicator is red * When the MESSAGE button is pressed, the latest recorded message may be heard, or a call back may be performed directly, depending on the type of message. From your own extension KX-TVA series Listen to Message...
- Page 9 Features List Leaving a message VPS extension no. From your own extension Mailbox Password* From someone else’s extension Mailbox Password* mailbox no. * If you have no password, you can skip the last step. Leave Enter the desired mailbox number a message (KX-TVA series) Follow the guidance...
- Page 10 Connection Connection <Back view> Attach the ferrite core to the AC adaptor cord. 7 cm 2- 3/4 in AC adaptor (not included) To a Switching Hub. To a PC. AC adaptor Headset (not included) Recommended: KX-TCA86, KX-TCA91, KX-TCA92 Do not use a KX-T7090 headset. •...
- Page 11 • This unit complies with the PoE Class 1 standard. AC adaptor (not included) • Use only a Panasonic KX-A239 (PQLV206) AC adaptor. • The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is located near the unit and is easily accessible.
-
Page 12: Installation Environment
KX-HGT100. If the known working KX- HGT100 operates properly, have the defective KX-HGT100 repaired by an authorized Panasonic factory service center. If the known working KX-HGT100 does not operate properly, check the PBX and the Ethernet cable. -
Page 13: Important Notice
• For information regarding network setup of the KX-HGT100 such as IP addresses, please refer to the Installation Manual for the Panasonic PBX. • If an error message is shown on your display, consult your dealer or the network administrator. -
Page 14: Important Safety Instructions
Important Information Important Safety Instructions When using this unit, basic safety precautions, including those below, should always be followed to reduce the risk of fire, electric shock and injury to persons. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. -
Page 15: Fcc Information
FCC Declaration of Conformity Trade Name: Panasonic Model Number: KX-HGT100 Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 U.S.A. Telephone No.: 1-800-211-PANA (7262) This device complies with Part 15 of the FCC Rules. -
Page 16: Customer Information
DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs. Product service: Panasonic factory service centers for this product are listed in the service center directory. Consult your authorized Panasonic dealer for detailed instructions. -
Page 17: Open Source Software
Important Information Open Source Software Parts of this product use Open Source Software. Relevant conditions apply to this software. Panasonic cannot accept inquiries regarding the content of the following copyright and license information. <<NetBSD kernel>> This product uses a part of NetBSD kernel. - Page 18 Important Information However, parts of the NetBSD Kernel are provided with the following copyright notices. Copyright (c) 1980, 1983, 1988, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1980, 1986, 1989, 1993 The Regents of the University of California.
- Page 19 Important Information Copyright (c) 1982, 1986, 1993, 1994, 1995 The Regents of the University of California. All rights reserved. Copyright (c) 1982, 1986, 1993, 1995 The Regents of the University of California. All rights reserved. Copyright (c) 1982, 1988, 1991, 1993 The Regents of the University of California.
- Page 20 Important Information Copyright (c) 1990, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1991, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1991, 1993, 1994 The Regents of the University of California. All rights reserved.
- Page 21 Important Information Copyright (c) 1997,98 The NetBSD Foundation, Inc. All rights reserved. Copyright (C) 1997-2000 Sony Computer Science Laboratories Inc. All rights reserved. Copyright (c) 1997-2002 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1998 The NetBSD Foundation, Inc. All rights reserved. Copyright (c) 1998 Todd C.
- Page 22 Important Information Copyright (c) 1996 Gardner Buchanan <gbuchanan@shl.com> All rights reserved. Parts of the NetBSD Kernel are provided with the licenses that are slightly different from the above Berkeley-formed license. Please refer the source code of the NetBSD Kernel about the details. The source code of the NetBSD Kernel is provided by the NetBSD CVS Repositories (http://cvsweb.netbsd.org/bsdweb.cgi/), and this product includes parts of the source code in the following directories.
- Page 23 Important Information * 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact penssl-core@openssl.org. * 5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL"...
- Page 24 Important Information * This library is free for commercial and non-commercial use as long as * the following conditions are aheared to. The following conditions apply * to all code found in this distribution, be it the RC4, RSA, lhash, DES, * etc., code;...
- Page 25 Important Information * NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE * USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY * OF SUCH DAMAGE. * The licence and distribution terms for any publically available version or * derivative of this code cannot be changed.
- Page 26 Important Information <<MT19937>> The MT19937 software that Takuji Nishimura and Makoto Matsumoto developed is contained, and this product shall be used subject to the following license conditions. Copyright (C) 1997 - 2002, Makoto Matsumoto and Takuji Nishimura, All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1) Redistributions of source code must retain the above copyright notice, this...
- Page 27 Important Information <<thttpd>> The thttpd software that ACME Labs developed is contained, and this product shall be used subject to the following license conditions. Copyright 1995,1998,1999, 2000 by Jef Poskanzer <jef@acme.com>. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1) Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Page 28 Carolina, Puerto Rico 00985 http://www.panasonic.com/csd Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
