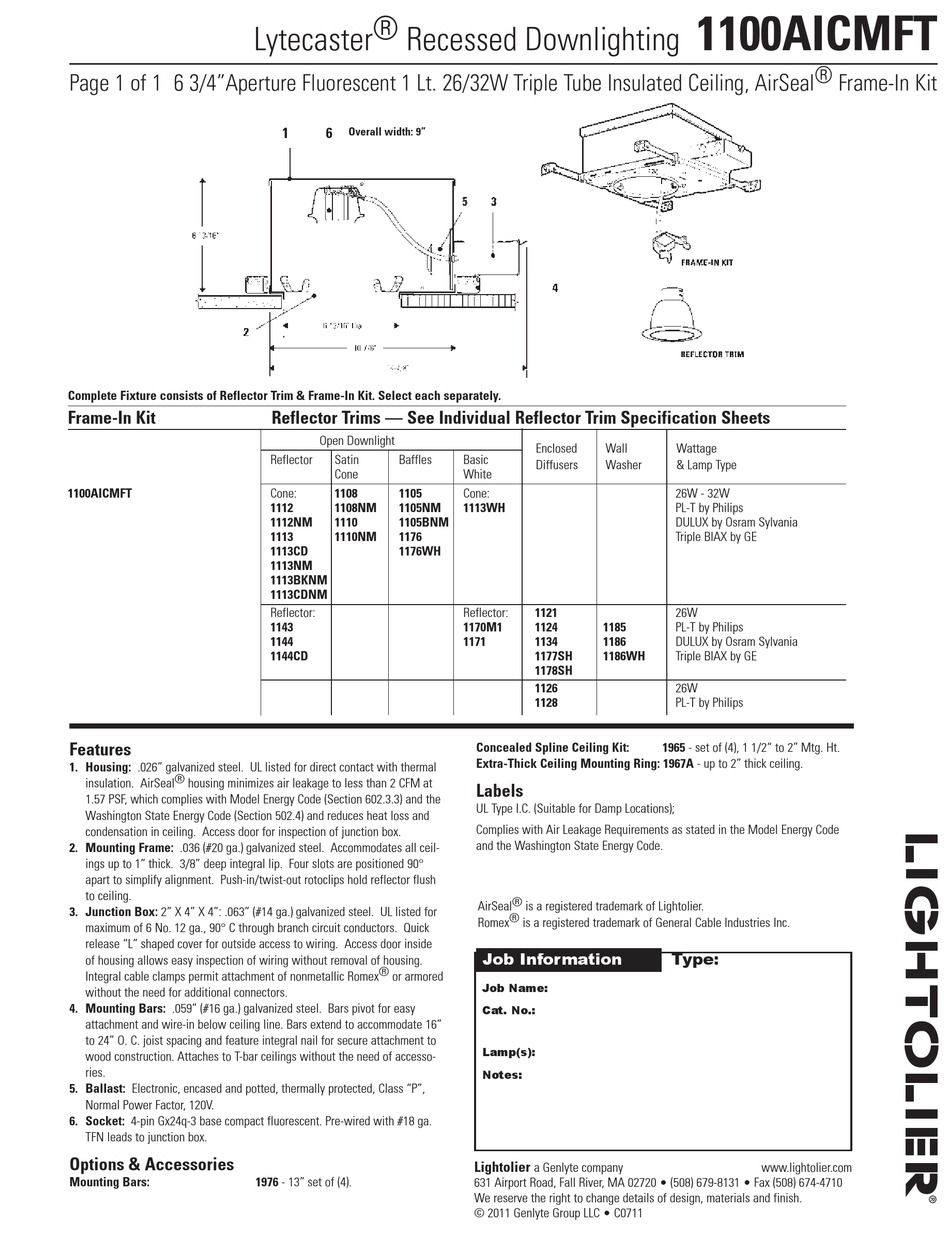

Lightolier Lytecaster 1100AICMFT Specification

Page 1 of 1 6 3/4"Aperture Fluorescent 1 Lt. 26/32W Triple Tube Insulated Ceiling, AirSeal ® Frame-In Kit
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
1100AICMFT
Features
1. Housing: .026" galvanized steel. UL listed for direct contact with thermal
insulation. AirSeal ® housing minimizes air leakage to less than 2 CFM at
1.57 PSF, which complies with Model Energy Code (Section 602.3.3) and the
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .036 (#20 ga.) galvanized steel. Accommodates all ceil-
ings up to 1" thick. 3/8" deep integral lip. Four slots are positioned 90°
apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush
to ceiling.
3. Junction Box: 2" X 4" X 4": .063" (#14 ga.) galvanized steel. UL listed for
maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick
release "L" shaped cover for outside access to wiring. Access door inside
of housing allows easy inspection of wiring without removal of housing.
Integral cable clamps permit attachment of nonmetallic Romex ® or armored
without the need for additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O. C. joist spacing and feature integral nail for secure attachment to
wood construction. Attaches to T-bar ceilings without the need of accesso-
ries.
5. Ballast: Electronic, encased and potted, thermally protected, Class "P",
Normal Power Factor, 120V.
6. Socket: 4-pin Gx24q-3 base compact fluorescent. Pre-wired with #18 ga.
TFN leads to junction box.
Options & Accessories
Mounting Bars:
Lytecaster ® Recessed Downlighting
1 6 Overall width: 9"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Reflector Satin Baffles
Cone
Cone: 1108 1105
1112 1108NM 1105NM
1112NM 1110 1105BNM
1113 1110NM 1176
1113CD 1176WH
1113NM
1113BKNM
1113CDNM
Reflector:
1143
1144
1144CD
1976 - 13" set of (4).
Enclosed Wall
Basic Pinhole
Diffusers Washer
White
Cone:
1113WH
Reflector:
Reflector: 1121
1170M1 1124 1185
1171 1134 1186
1177SH 1186WH
1178SH
1126
1128
Concealed Spline Ceiling Kit:
Extra-Thick Ceiling Mounting Ring: 1967A - up to 2" thick ceiling.
Labels
UL Type I.C. (Suitable for Damp Locations);
Complies with Air Leakage Requirements as stated in the Model Energy Code
and the Washington State Energy Code.
AirSeal ® is a registered trademark of Lightolier.
Romex ® is a registered trademark of General Cable Industries Inc.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
