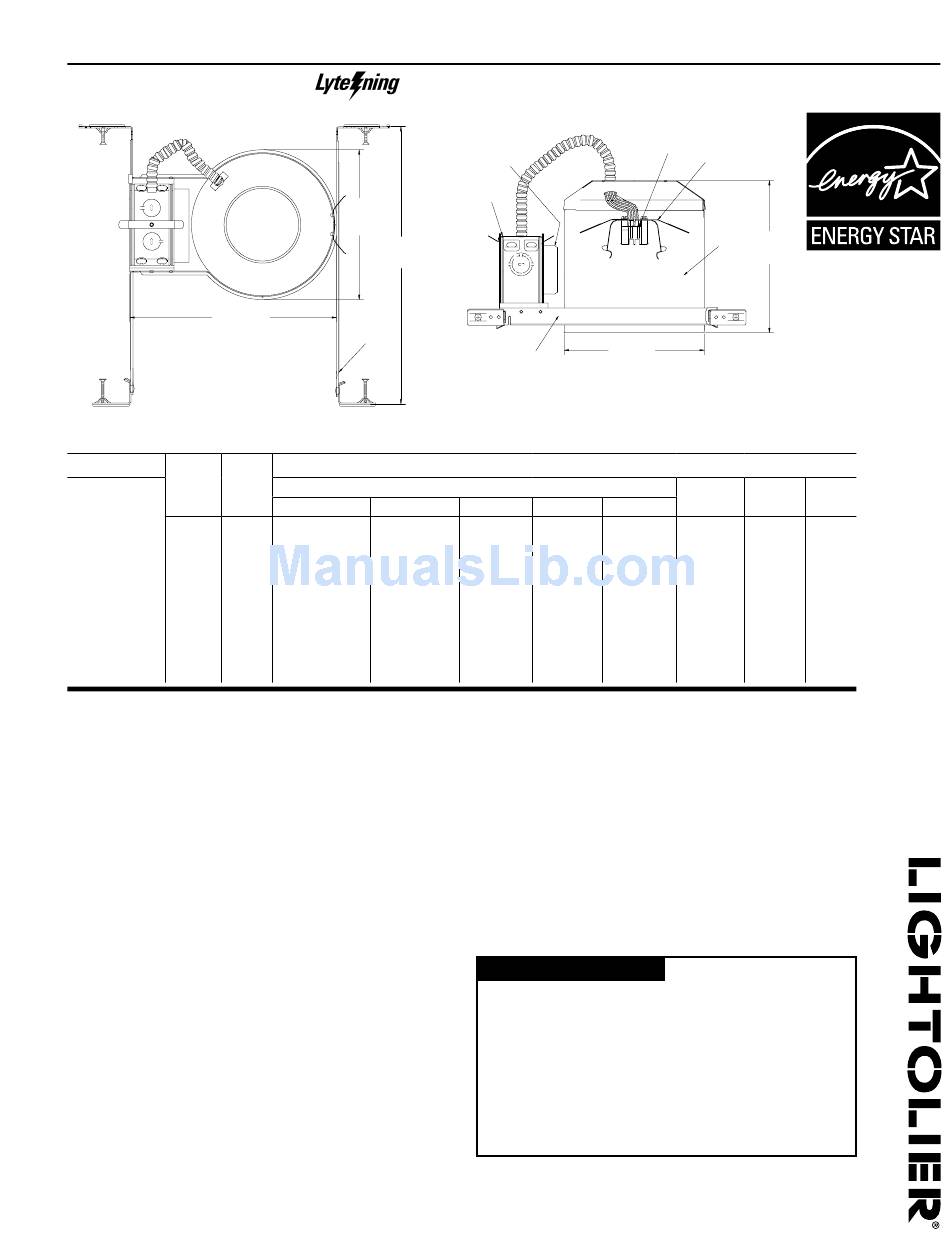

Lightolier Lytecaster 1104F13ES Specification

Page 1 of 1 6 3/4" Aperture
10 3/4"
OVERALL
LENGTH
Ceiling Opening 7" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage Lamp
120V 13W
1104F13ES
Quad or
1104F13ESN
Triple
Tube
Features
1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Mounting Frame: .048" (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
cable without tools or additional connectors.
4. Mounting Bars:. .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing
after a slight field modification (see Instruction Sheet). Features integral
self-tapping phillips screws or nails for secure attachment to wood or metal
construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
6. Socket: (4 Pin, GX24q-1) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
7. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
Electrical
Input Watts: 16 **Use Triple Tube Lamp Only.
Amps: .13
Ballast Factor: 1.0
Power Factor: .96
Lytecaster Recessed Downlighting
®
1 Lt 13W Quad/Triple Tube Compact Fluorescent IC Frame-In Kit
®
7 5/16"
OVERALL
WIDTH
13" MIN.
24" MAX.
4
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Anodized Reflector Anodized Cone
1143 1112
1144 1112NM
1144CD 1113
1113BK
1113BKNM
1113CD
1113CDNM
1113NM
1113WH
housing minimizes
®
®
qualified.
®
7
3
7"
APERATURE
2
Satin Cone Baffles Basic White
1108 1105 1171
1108NM 1105BNM 1170M1
1110 1105NM
1110NM 1105WH
1176
1176WH
1179M1
1179WH
Electrical (cont.)
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal Kit: LAS56 (Optional)
®
Note: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex is a registered trademark of General Cable Industries Inc.
®
US and Foreign Patents Pending.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C0906
