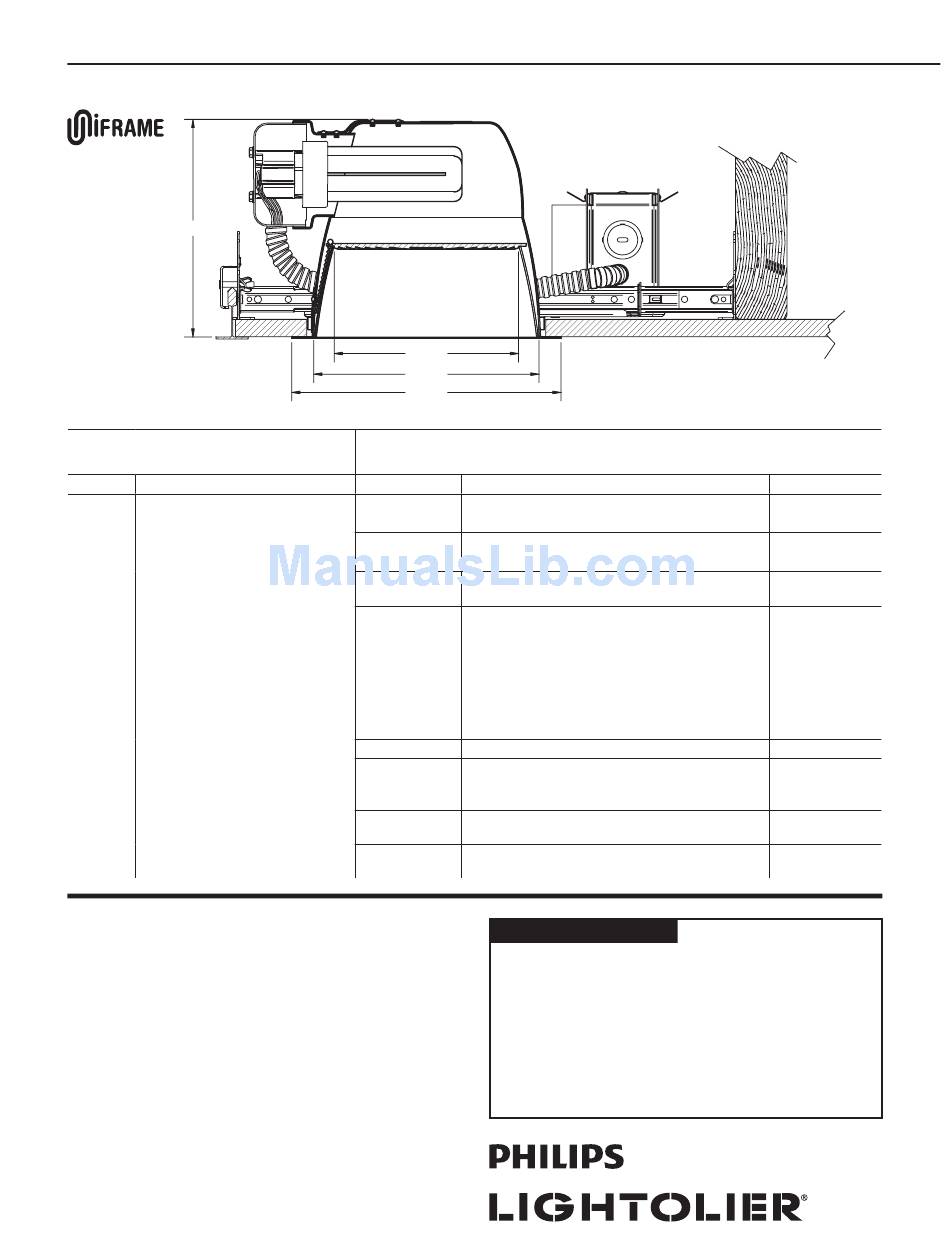

Lightolier Lytecaster 101HL Specification

Lytecaster
Page 1 of 2
6 3/8"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe Compact Fluorescent
™
Performance Series Reflector Trims
Catalog No. Description
1101HCLF 6-3/4" Horizontal Wet Location Fresnel –
Specular Clear
1101HCDF 6-3/4" Horizontal Wet Location Fresnel –
Clear Diffuse
1101HWHF
6-3/4" Horizontal Wet Location Fresnel –
Matte White
1101HCLC 6-3/4" Horizontal Wet Location Clear –
Specular Clear
1101HCDC
6-3/4" Horizontal Wet Location Clear –
Clear Diffuse
1101HWHC 6-3/4" Horizontal Wet Location Clear –
Matte White
1101HCLO 6-3/4" Horizontal Wet Location Opal –
Specular Clear
1101HCDO
6-3/4" Horizontal Wet Location Opal –
Clear Diffuse
1101HWHO 6-3/4" Horizontal Wet Location Opal –
Matte White
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: CL = Specular Clear (Iridescent Free coating)
CD = Clear Diffuse
WH = Matte White Paint
3. Lenses: Clear Acrylic, Textured Acrylic Fresnel, Opal Acrylic
4. Performance Data: 60° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Labels
cULus Listed. Suitable for Wet Locations. I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Performance Recessed CFL Downlighting
®
6 ¾" Aperture Horizontal Wet Location, CFL, Performance Series, Reflector Trim
5 3/8"
6 1/2"
7 7/8"
Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No. Installation Type
1101F18U Uniframe
1101FR18U Uniframe
1101FD26L1 Uniframe
1101FD26L2 Uniframe
1101FD32L1
Uniframe
1101FD32L2 Uniframe
1101F2642U Uniframe
1101FR2642U Uniframe
1101F2642UEM
Uniframe
1101FD2642MX1 Uniframe
1101FD2642MX2 Uniframe
1101FD2642M7U Uniframe
1101FR264MX1 Uniframe
1101FR264MX2 Uniframe
1101F18ICU/N
Performance IC 120/277v
1101F2642ICU Performance IC 120/277v
1101F2642IUN
1101FDICMX1/N Performance IC Advance Mark10 Dimming 120v
1101FDICMX2/N Performance IC Advance Mark10 Dimming 277v
Non-IC 120/277v
™
Non-IC Remodeler 120/277v
™
Non-IC Lutron Dimming 120v
™
Non-IC Lutron Dimming 277v
™
Non-IC Lutron Dimming 120v
™
Non-IC Lutron Dimming 277v
™
Non-IC 120/277v
™
Non-IC Remodeler 120/277v
™
™ Non-IC Emergency 120/277v
Non-IC Advance Mark10 Dimming 120v
™
Non-IC Advance Mark10 Dimming 277v
™
Non-IC Advance Mark7 Dimming 120/277v
™
Non-IC Advance Mark10 Dimming 120v Rem.
™
Non-IC Advance Mark10 Dimming 277v Rem.
™
