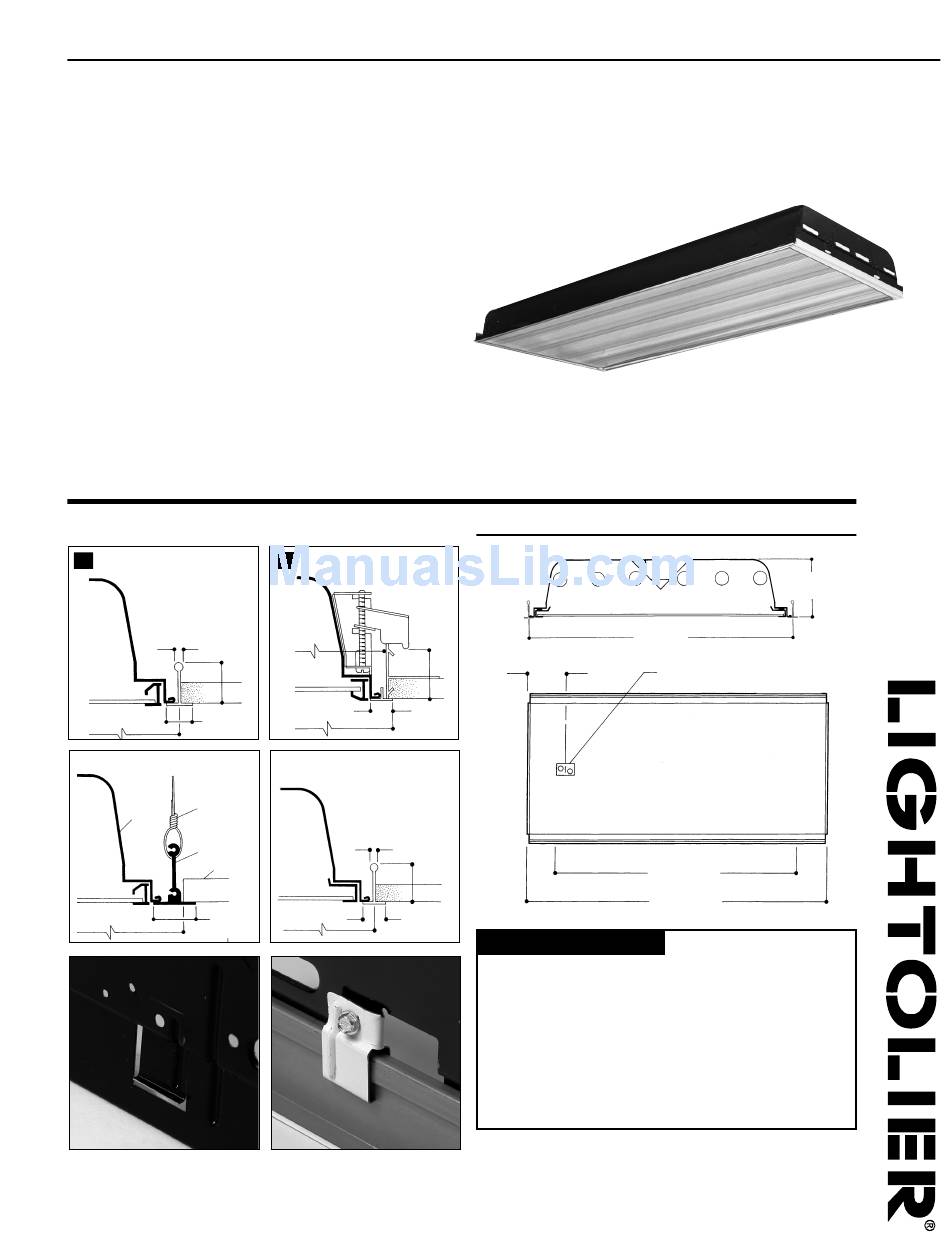

Lightolier SUS SERIES 432 Specification

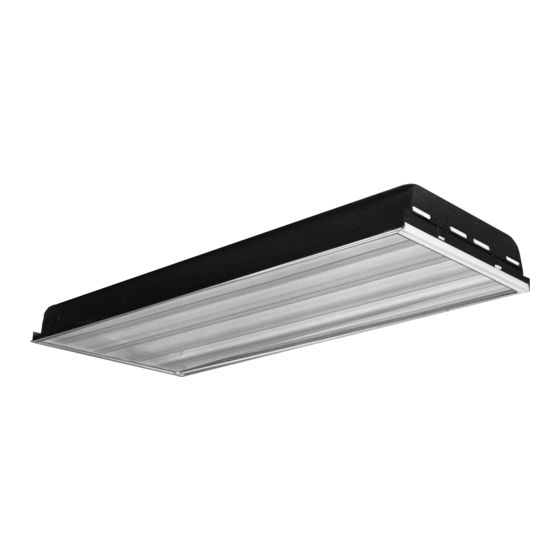

SURGICAL PERIMETER LUMINAIRE
Page 1 of 4
Features
• Asymmetric/symmetric distribution provides: supplemental illumina-
tion to operating table.
• Minimizes contrast between surgical and surrounding areas.
• Meets government specification for Radio Frequency Interference
(RFI), MIL-STD 461-A, MIL-STD 462 and MIL-STD 463.
• One radio suppressor per fixture (standard).
• High efficiency 60.9% (6 light) 61.2% (4 light).
• One-piece housing.
• Hemmed over side rails for maximum
safety.
• Built-in earthquake clips (pat. no. 5,072,344).
• Flat full-size steel lens frame is gasketed.
• 2-1/4" lamp to integral light stop for easy lamp removal.
• Black housing exterior for cooler ballast operating temperature.
MOUNTING METHODS
exposed T-grid ceiling.
G
(with flat aluminum frame)
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
drywall kit (see options)
Support
Type "G" (by others)
FIxture
Drywall Kit
(See Options)
Drywall
(by others)
Ceiling Opening
15/16"
24-5/16" x 48-5/16"
earthquake clip
before
installation
2'x4' RECESSED FLUORESCENT, ASYMMETRIC/SYMMETRIC ACRYLIC LENS
plaster ceiling/flanged.
F
Plaster
Opening
24-1/8"
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
exposed T-grid ceiling
(with flat steel frame)
1/4" max.
1-1/2" max.
15/16" or 1"
24"
earthquake clip
installed
(lay-in grid)
SUS SERIES 432/632
RFI SHIELDED, 4 OR 6 LAMP, T8 OR T12
DIMENSIONS
24" (610mm)
6" (152mm)
47-31/32" (1218mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
