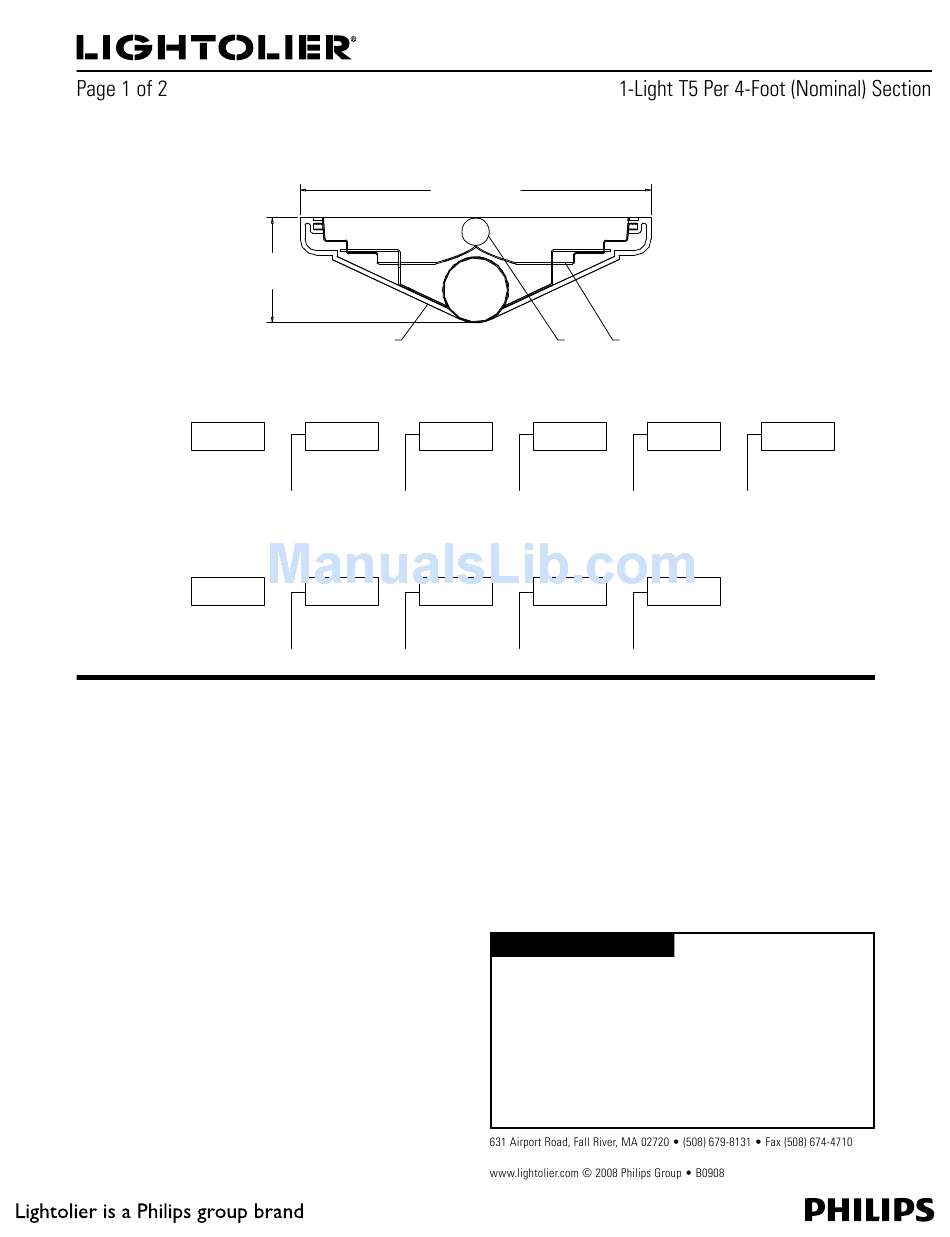

Lightolier SORA-3 Specification Sheet

(6.10cm)
Ordering Information
Family
S
Body
Family
S
Suspension
Complete Ordering Instructions below.
Features
1. Housing: Aluminum extruded upto 12-foot nominal lengths.
2. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).
3. Reflector: Die-formed high reflectance semi-specular aluminum.
Electrical
Ballast is electronic, low harmonic distortion, high power and ballast factor, uni-
versal voltage with two conductors and a ground. Mark X dimming (no extra control
wire required) is available. EM battery pack not available. Modules can be
continuously wired row mounted, but cannot exceed amperage limits of electrical
supply cords. Cable suspended fixtures have 18/3 SJT cord, stem products have
three 18 gauge wires provided in stem, and both versions must be hard wired.
Factory installed ballast disconnect allows the ballast to be disconnected from and
reconnected to incoming power under load without turning the entire circuit off.
Mounting
Cable mounting utilize 1/16" (0.16cm) diameter SSTL aircraft cable, and are
continuously adjustable via a cable gripper. Stem mountings utilize 1/8 IP stems
(three wires only) with ball swivel mounting at ceiling line. Stems cannot be cut in
field and should be ordered to required length. 4-1/2" (11.43cm) diameter canopies
are used on both styles. 12-foot fixtures may have up to 1/4" (0.64) deflection in
luminaire housings.
Finish
Powder coated Steelcase Platinum or White baked enamel.
Custom colors available, consult factory.
Labels
UL (1598), cUL and I.B.E.W.
2.40"
1
Lamps Wattage
1
1 = 1 Lamp Per 28 = 28 Watt
4-Foot Section 54 = 54 Watt
Item Suspension
E = End Set CO = Cable
I = Intermediate SO = Stem
PO = Power Feed*
Lighting Systems
8.00" (20.32cm)
2 3
Style
CO
CO = Suspended
without
Wings
Length
30 = 30" (76.20cm)
Stem
36 = 36" (91.44cm)
Cable
Ordering Instructions
Individual fixtures:
1. Order number of Modules required.
2. Order one End Set per module.
Continuos Rows:
1. Determine run length.
2. Order the appropriate number of Modules to complete the run.
3. Order one End Set per run.
4. Order one Intermediate suspension per Module minus one per run.
5. For runs that exceed amperage limits, order the appropriate number of
Intermediate suspension Power (for cable suspended units only).
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
SORA-3
Length
Finish
4 = 4 Foot SC = Platinum
Nominal WH = White
8 = 8 Foot
Nominal
12 = 12 Foot
Nominal
Finish
SC = Platinum
WH = White
* Intermediate only.
Type:
