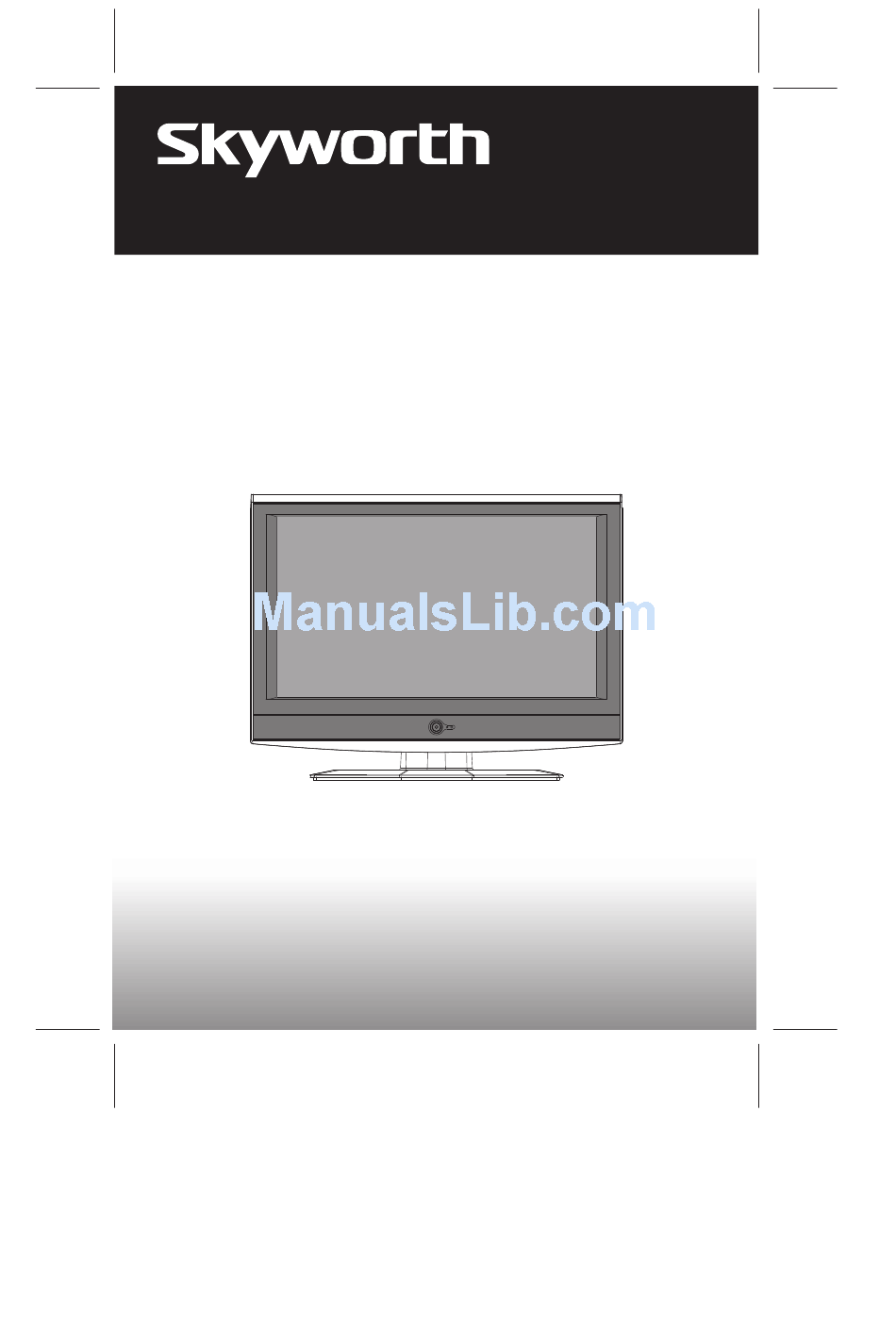

  • Page 1 Instruction Manual LCD-37L16 LCD-37L16 37" LCD TV/MONITOR...
  • Page 2 Thank you very much for your purchase of this product-the most natural Colour Television Receiver. To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready reference.

  • Page 4: Insert The Batteries

    SETUP SETUP Insert The Batteries Remove the battery cover by pressing it and sliding it down. Insert the two 1.5V (AAA size) batteries making sure the polarity (+ or -)of the batteries matches the polarity marks Inside the unit. Replace the battery cover by sliding it in until you hear a click Sound. Precautions when using batteries Do not use old and new batteries together.

  • Page 5: Panel Features

    SETUP SETUP Locate the receiver in the room where direct light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the receiver and the wall to permit ventilation. Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

  • Page 6: Functional Parts

    FUNCTIONAL PARTS FUNCTIONAL PARTS 1. ON/OFF Switch 2. Power Indicator 3. Remote Sensor 4. TV / AV 5. MENU 6. VOL.- Button 7. V0L. + Button 8. PROG.- Button 9. PROG.+ Button 10. Speakers 11. AV IN 2 10 10 2 2 3 3 10 10 12.
  • Page 7 HDMI CABLE CONNECTIONS HDMI CABLE CONNECTIONS IMPORTANT INFORMATION Power off both HD player and display before making any connections. Connect the HDMI cable to the HDMI socket of the TV, connect the other end to the HDMI output socket of the HD player source. Connect the HDMI cable to the HDMI socket of the TV.

  • Page 8: Remote Control Unit

    OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS Remote Control Unit POWER (STAND BY) BUTTON ( Press this button to turn the TV on/off. MUTE BUTTON ( Press once to mute the sound, press again to return to preset sound level. PROGRAM SELECTION BUTTONS (0-9, -/--) Press 0-9 digit buttons(one input status:"-"), you can Power Sleep...
  • Page 9 OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS Remote Control Unit SLEEP BUTTON(SLEEP) Press this button to set the sleep timer. When the preset length of time has passed, the TV set Enters standby mode. The time change(minutes):15,30,45,60,90,120 off. MENU BUTTON (MENU) Press this button to enter the menu screens for Power Sleep various Optional adjustable settings.
  • Page 10 TELETEXT TELETEXT SIZE SIZE REVEAL REVEAL Text PROG.+ SUB.PAGE PROG.- SUB.PAGE SIZE...

  • Page 11: To Exit Teletext

    TELETEXT TELETEXT PROG.+ PROG.- To Cancel TEXT Press"CANCEL"button to clear the TEXT.But the page number is still displayed on the left top of the screen. NOTICE:However,Teletextis playing all the same on the background at the time. Press"CANCEL"button again to resume the TEXT.
  • Page 12 ANALOG MENU SCREENS ANALOG MENU SCREENS 1. Plug in the power source. The power indicator will light up. If TV is in stand by mode. Then Press¡° ¡±key. The picture will display in few minutes. MENU BUTTON 1.Press menu button to display analog menu ,and press VOL.+/- to select sub menu. VIDEO AUDIO SETUP...
  • Page 13 ANALOG MENU SCREENS ANALOG MENU SCREENS Advanced Advanced menu This items is to enter advanced picture menu, press the VOL.+/- buttons to enter the advanced picture menu. 1.Yellow T one This option adjusts the flesh tone level of the image. The scale of control should be 0-3.
  • Page 14 ANALOG MENU SCREENS ANALOG MENU SCREENS Enter Setup menu, you can search, Setup menu and edit channel or favorite program by pressing PROG.+/- Buttons. Auto tuning Settings Press the VOL.+ button Auto tuning status will be shown when the whole band is search over the auto tuning process is terminated.
  • Page 15 ANALOG MENU SCREENS ANALOG MENU SCREENS Option Menu Enter option menu you can setup the osd language , Aspect , Menu Background ,Blue screen and key lock . Select Option menu by press the PROG.+/- buttons and enter the caption function by pressing VOL.+/- buttons, you can adjust the Style function items by pressing VOL.+/- Buttons.
  • Page 16 PC MODE PC MODE PC Input typical display modes. The following table is an illustration of some of The typical video display modes. 640x480 (recommend 60Hz) 800x600 (recommend 60Hz) 1024x768 (recommend 60Hz) 480p 576p 15 Pin Mini D-Sub Connector 720p (50/60Hz) 1080i (50/60Hz) Enter menu, you can adjust the picture phase,H position,V position and Hold...
  • Page 17 HDMI INPUT RESOLUTIONS HDMI INPUT RESOLUTIONS HDMI Input typical display modes.The Following table is an illustration Of some Of the Typical video display modes. 640x480 (recommend 60Hz) 800x600 (recommend 60Hz) 1024x768 (recommend 60Hz) 480p 576p 720p (50/60Hz) 1080i (50/60Hz) YPb Pr Mode(Component input) The menu of Ypb Pr mode is exactly same as the menu of HDMI mode.

  • Page 18: Service Tips

    SERVICE TIPS SERVICE TIPS BEFORE CALLING FOR SERVICE, HAVE YOU CHECKED ( ) THE FOLLOWING CHART ON SYMPTOMS AND SOLUTIONS? Symptoms No picture, no sound Poor sound, picture OK Poor picture, sound OK Weak picture Blurred picture Double image Lines in picture Distorted picture Weak reception on some channels Horizontal bars...
