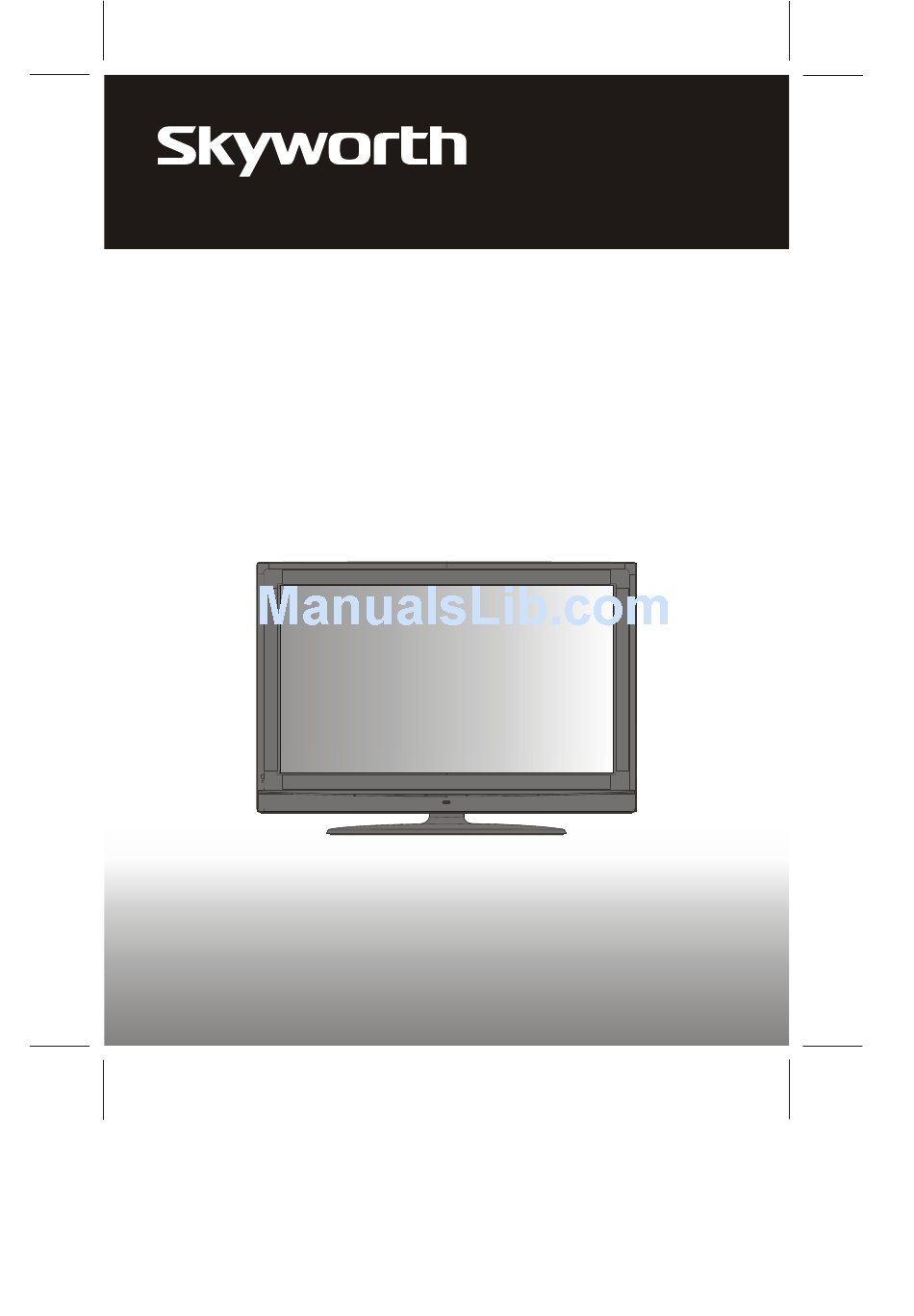

  • Page 1 Instruction Manual LCD-32L8E LCD-32L8E 32" LCD TV/MONITOR SIZE:A5...

  • Page 2: Safty Precaution

    SAFTY PRECAUTION Read all of the instructions before operating the set. Keep these instructions well for later use. PRODUCT The ventilation should not be impede by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc. Do not push any objects of any kind into this unit through the cabinet slots as they could touch the current carrying parts or short-circuit parts, resulting in fire, electric shock, or damage to the unit.
  • Page 3 SAFTY PRECAUTION USE ENVIRONMENT Do not install this equipment in a confined space such as a book case or similar unit. To prevent injury, this apparatus must be securely attached to the wall mount fastened on the wall. Place the set on a place that allows good ventilation. Do not use the set near damp, and cold areas, protect the set from overheating.

  • Page 4: Insert The Batteries

    SETUP Insert The Batteries Remove the battery cover by pressing it and sliding it down. Insert the two 1.5V (AAA size) batteries making sure the polarity (+or -)of the batteries matches the polarity marks Inside the unit. Replace the battery cover by sliding it in until you hear a click sound. Precautions when using batteries Do not use old and new batteries together.

  • Page 5: Panel Features

    SETUP Locate the receiver in the room where direct light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the receiver and the wall to permit ventilation. Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

  • Page 6: Functional Parts

    FUNCTIONAL PARTS Front Panel Note: The graphics are for representation only. 1. POWER INDICATOR 2. REMOTE SENSOR 3. VOLUME UP/DOWN BUTTON 4. PROGRAM UP/DOWN BUTTON 5. MENU BUTTON 6. TV/AV BUTTON 7. ON/OFF BUTTON 8. S-VIDEO INPUT 9. AV3 INPUT 10.

  • Page 7: Back Panel

    FUNCTIONAL PARTS Back Panel L - AUDIO - R VIDEO R - AUDIO - L VIDEO S/PDIF HDMI2 HDMI1 VGA AUDIO 75 ANT R - AUDIO - L VIDEO 1. HDMI1\HDMI2: Connect HDMI input signal from signal source such as DVD. 2.
  • Page 8 OPERATION INSTRUCTIONS Remote Control Unit POWER (STAND BY) BUTTON ( Press this button to turn the TV on/off. POWER MUTE BUTTON ( MUTE Press once to mute the sound, press again to return to preset sound level. PROGRAM SELECTION BUTTONS (0-9) You could select program you want with 0-9 button.
  • Page 9 OPERATION INSTRUCTIONS Remote Control Unit LEFT RIGHT ARROW/ZOOM-/+ (Z- / Z+) Press to change the screen format: 4:3 format, 16:9 format, 14:9 ZOOM, 16:9 ZOOM1, 16:9 ZOOM2. POWER MUTE OK BUTTON (OK) Press to enter selected item. CURSOR buttona( Left/Right/Up/Down direction keys for selecting menu itemsor signal sources.
  • Page 10 OPERATION INSTRUCTIONS Remote Control Unit PIP SOUND Press this button to select current sound output from main or PIP source when PIP is active . POWER MUTE PIP SIZE Press this button to change PIP picture size , Normal or Zoom when PIP is active . TEXT BUTTON This button is used for entering the teletext MENU.
  • Page 11 SIZE SIZE REVEAL REVEAL Text You could stop it by press "HOLD" button . SUB.PAGE Up arrow key Down arrow key SUB.PAGE INDEX 1000 So TV will display text page you required quickly . SIZE...

  • Page 12: To Exit Teletext

    Up arrow key Down arrow key To Cancel TEXT Press "CANCEL" button to clear the TEXT. But the page number is still displayed on the left top of the screen. NOTICE: However, Teletextis playing all the same on the background at the time. Press "...
  • Page 13 ANALOG MENU SCREENS 1. Plug in the power cord and switch on power switch . The power indicator will light up. If TV is in stand by mode. Then Press"¡¡ " Key. The picture will display in few minutes. MENU BUTTON 1.Press menu button to display menu, and press left/right arrow key to select sub menu.

  • Page 14: Sound Menu

    ANALOG MENU SCREENS Sound Menu Enter Sound menu, you can select Sound Mode, Balance, Treble, Bass, Auto Volume Level. Items by pressing up/down arrow key. Sound Mode Press the left/right arrow key to select the audio mode. The audio mode are Standard, Music, Film, Voice, Personal.
  • Page 15 ANALOG MENU SCREENS Channel Name Installation Menu Display channel name, you could edit it if press "OK" to enter edit sub menu. use up/down arrow key to change name of program in the edit sub menu. Colour Sys Press the button to select a new colour standard value in TV.

  • Page 16: Preferences Menu

    ANALOG MENU SCREENS Time Menu Enter Timer menu, you could set time and turn on/off timer. With Time reference, you could set channel from which TV get teletext time. Current Time show the time of your TV remember, you could set this time manualy if you want. Otherwise, TV get it from channel for time reference .

  • Page 17: Parental Control Menu

    ANALOG MENU SCREENS Parental Control Menu Enter Parental Control menu you can set control of it .Press left/right arrow key to select Parental Control item, then press up/down arrow key to entry menu. Input correct password to entry sub menu when PIN item is high light .

  • Page 18: Geometry Menu

    ANALOG MENU SCREENS PC Mode 15 Pin Mini D-Sub Connector and LCD TV. PC Input typical display modes. The following 640X480(recommend 60Hz) table is an illustration of some of the typical 800X600(recommend 60Hz) video display modes. 1024X768(recommend 60Hz) 480p 576p 720p(50/60Hz) 1080i(50/60Hz) Menu In PC Mode...
  • Page 19 ANALOG MENU SCREENS Enter preferences menu you can setup the Preferences Menu Language, Zoom, Film mode, OSD Transparent. Select preferences menu by press the up/down arrow key and enter the caption function by pressing left/right arrow key, you can adjust the Style function items by pressing left/right arrow key buttons.

  • Page 20: Hdmi Input Resolutions

    ANALOG MENU SCREENS HDMI Input Resolutions HDMI Input typical display Modes. The following table is an illustration of some of typical Video display modes. 640X480(recommend 60Hz) 800X600(recommend 60Hz) 1024X768(recommend 60Hz) 480p 576p 720p(50/60Hz) 1080i(50/60Hz) 1080p(24/50/60Hz) YPbPr Mode(Component input) The menu of Y Pb Pr mode is exactly same as the menu of HDMI mode. YPbPr Input typical display modes.

  • Page 21: Service Tips

    SERVICE TIPS BEFORE CALLING FOR SERVICE, HAVE YOU CHECKED ( ) THE FOLLOWING CHART ON SYMPTOMS AND SOLUTIONS? Symptoms No picture, no sound Poor sound, picture OK Poor picture, sound OK Weak picture Blurred picture Double image Lines in picture Distorted picture Weak reception on some channels Horizontal bars...
