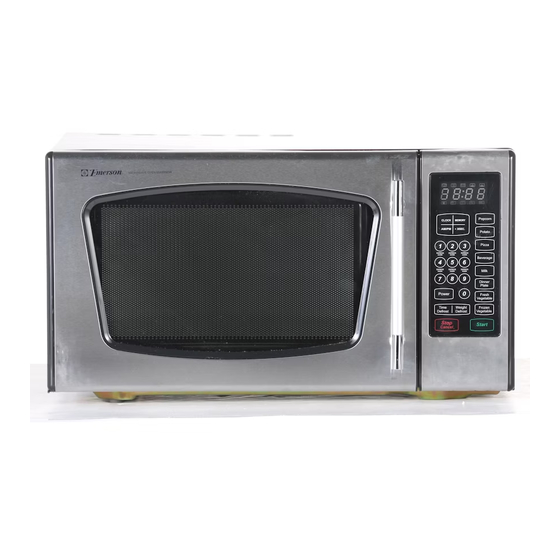

- Page 1 ® 900W MICROWAVE OVEN OWNER’S MANUAL MW8992SB/ MW8992RD/ MW8992GN Visit our web site at “www.emersonradio.com” UNAUTHORIZED MODIFICATIONS TO THIS DEVICE COULD VOID THE USER'S AUTHORITY TO OPERATE IT.
-
Page 2: Table Of Contents
Important Safety Instructions ...2 Safety Precautions ...4 Grounding Instructions ...5 Installation ...5 Care of Your Microwave Oven ...6 How to Use Your Microwave Oven Safely ...6 Location of Controls ...7 Operation ...8 Setting the Clock...8 Weight Defrost ...9 Time Defrost...9 Cooking In One Stage...10... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns. Electric shock, fire, injury to persons, or exposure to excessive microwave energy: Read all instructions before using this appliance. -
Page 4: Save These Instructions
Do not leave paper products, cooking utensils or food in the cavity when not in use. Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Va p o r s f r o m s u c h c o r r o s i v e... -
Page 5: Safety Precautions
Do not use oil unless specified by the manufacturer. Do NOT attempt to deep fat fry in your oven. HEATED LIQUIDS can ERUPT if not mixed with air. Do not heat liquids in your microwave oven without first stirring. -
Page 6: Grounding Instructions
1. Steady, flat location: When positioning the microwave oven, it should be set on a steady, flat surface. 2. Ventilation: Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause oven failure. -
Page 7: Care Of Your Microwave Oven
If steam accumulates on both sides of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and this is not an indication of a malfunction in the unit. -
Page 8: Location Of Controls
Door latch-When the door is closed, it will automatically lock shut. If the door is opened while the oven is operating, the magnetron will automatically shut off. Door screen-Allows viewing of food. The screen is designed so that light can pass through, but not the microwaves. -
Page 9: Operation
SETTING THE CLOCK When the microwave oven is plugged into an outlet, the oven will display " 0:00 " 1. Press the CLOCK button; the hour digit will blink and the clock indicator will light. -
Page 10: Weight Defrost
OPERATION(CONTINUED) WEIGHT DEFROST WEIGHT DEFROST lets you easily defrost foods by eliminating guesswork in determining defrosting time. The minimum weight for Auto Weight Defrost is 4 Oz and maximum weight is 100 Oz. Follow the steps below for easy defrosting. 1. -
Page 11: Cooking In One Stage
OPERATION(CONTINUED) COOKING IN ONE STAGE Set a cooking or other operational time/power as follows. The maximum cooking time is 99 minutes 99 seconds. 1. Press the Power button; the Microwave and High Cook indicators will light and “PL 10” will light in the display. -
Page 12: Cooking In Two Stages
OPERATION(CONTINUED) COOKING IN TWO STAGES Set up to two cooking stages as follows: 1. Press the Power button; the Microwave and High Cook indicators will light and “PL 10” will light in the display. 2. Press the Power button different times to set the desired power;... -
Page 13: Defrosting/Cooking In Two Stages
OPERATION(CONTINUED) DEFROSTING/COOKING IN TWO STAGES Set up weight defrosting and cooking in two stages as follows. The minimum weight for Auto Weight Defrost is 4 oz. The maximum weight is 100 oz. 1. Press the Weight Defrost button; the Microwave and Defrost indicators will light and “dEF 1”... -
Page 14: Auto Cook
OPERATION(CONTINUED) AUTO COOK Auto cook lets you easily cook items in the oven as it will automatically set the times and power levels to give better results than one power only cooking. 1. Press the desired Auto Cook button; the Auto Cook indicator will appear and weight/portion will light in the display (see chart on next page). -
Page 15: Auto Cook Menu Chart
OPERATION(CONTINUED) Auto Cook Menu Chart Menu Press Times POPCORN POTATO PIZZA BEVERAGE MILK DINNER PLATE FRESH VEGETABLE FROZEN VEGETABLE Weight/Portion Once 1.75 Oz Twice 3.5 Oz Once 1 PCS Twice 2 PCS Thrice 3 PCS Once 1 Slice(6 Oz) Twice 2 Slices(9 Oz) Thrice 3 Slices(12 Oz) -
Page 16: Memory
OPERATION(CONTINUED) MEMORY Memory lets you cook items in your own special style. Totally 5 memory settings are availavle in this model. Set a memory setting as follows: 1. Press the MEMORY button repeatedly to select 1-5 memory. 2. Press the Power button; the Microwave and High Cook indicators will light and “PL10”... -
Page 17: Enquiry
OPERATION(CONTINUED) ENQUIRY • Press AM/PM button during standby, the display will show AM or PM for 3 seconds. (Time must be set before this operation.) • Press the Power button during cooking; the display will show current power level for 3 seconds. •... -
Page 18: Cooking Guide
FOOD CHARACTERISTICS Quantity: The amount of food placed in a microwave oven has a direct effect on the cooking time. Small amounts of food or liquid require less cooking time than larger amounts of the same substance. As quantity increases, concentration decreases. -
Page 19: Hot Snacks And Appetizers
Covering: Covering speeds cooking time, retains moisture, tenderizes, insures even cooking and prevents spattering. Casserole lids or plastic wrap are used for a tighter seal. Vent plastic by turning back one edge at the side of dish to form a narrow slot where excess steam can escape. -
Page 20: Meats
Guide for Cooking Meats Roasts, chops, hamburgers and small cuts of tender meat cook beautifully in the microwave oven. Most roasts can be cooked rare, medium rare or even well done in less than one hour. Less tender cuts of meat such as pot roast can be simmered fork tender in a sauce or gravy. -
Page 21: Poultry
Chicken is one of the most popular foods and microwaving chicken is one of the best uses of your microwave oven. Chicken stays juicy and tender in the microwave oven. However, juiciness prevents browning because chicken crisps and browns only when the skin dries out enough to change color. -
Page 22: Eggs & Cheese
Eggs cook differently by microwave. The high fat content of egg yolks absorb energy, so yolks cook faster than whites. It's easy to poach eggs in a microwave oven, but if you want soft yolks, remove eggs from the oven before whites are completely cooked. A brief standing time allows whites to set without overcooking yolks. -
Page 23: Vegetables
1/4 cup Mushroom slices (1/2 lb) 2 Tbsp SOUPS Guide for Cooking Soups Satisfy appetites with savory soups prepared in your microwave oven. Adapt your favorites by using similar cooking times and techniques. Food Canned Condensed Cream style, Bean, Pea... -
Page 24: Sauces
Because of their shorter cooking time, casseroles cooked in the microwave oven generally need less liquid. Casseroles with cream and cheese sauces, or meats which need slower cooking to tenderize, cook best on power level 40. -
Page 25: Sandwiches
Cooked rice and pasta reheat easily in the microwave oven without loss of flavor or texture. No extra water is needed to prevent sticking or drying, so there's no danger of overcooking rice and pasta or thinning sauces. -
Page 26: Cereals
COOKING GUIDE (CONTINUED) CEREALS Microwaveable hot cereals can be cooked directly in the cereal bowl and make cleaning up easy. CONVENIENCE FOODS Frozen Foods A large variety of frozen foods, special dishes and dinners are available and the selections continue to increase. The market is changing rapidly, therefore it is impossible to list the foods and types available and recommend cooking procedures. -
Page 27: Desserts
• Breads and rolls should be reheated to the point where they are warm to the touch. Overheating or overcooking makes bread tough and rubbery. • When making yeast bread in a microwave oven, choose a recipe with cornmeal, whole wheat flour, or rye flour to achieve a richer color. -
Page 28: Specifications
1. Check the containers, dishes or utensils in the oven and make sure they are not metal or have metal trim. FOR CUSTOMER SERVICE, PLEASE WRITE TO: Rating Specification 120V~ 60Hz 900W 2450MHz 0.9 cubic feet 20.1 (W) x 16.5 (D) x 11.1 (H) inches 32 Lbs (Approx) Emerson Radio Corp. Consumer Affairs Dept. 5101 Statesman Drive, Irving, TX 75063. -
Page 29: Limited Warranty
NOTE: This warranty does not cover: (a) Damage to equipment not properly connected to the product. (b) Cost incurred in the shipping of the product to and from a Regional Repair Facility permitted by Emerson to perform warranty repairs. (c) Damage or improper operation of unit caused by customer abuse, misuse, negligence or failure to follow operating instructions provided with the product. - Page 30 ® EMERSON PART NO.:80-5122 711-01 Printed in China...
