Lightolier Lytecaster 1045 Specification

# 1013
Page 1 of 2
1045/1002P1 Series
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1045
1002P1
Specular
1003R
Gold
1000P1
1046
Specular
1000IC
Clear
1000AICM
1004ICX/N
1046CD
Clear Diffuse
1004IC/N
1004ICR
1004IC/N
1004ICR
Features

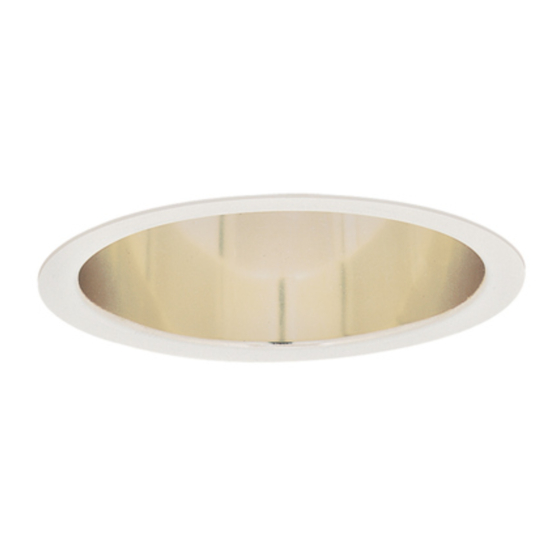

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.); 38˚ shielding angle;
specular clear diffuse, or gold finish; matte white trim flange.
2. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Extra Wide Flange Trim Ring:
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Lytecaster
Incandescent
Ceiling Type Lamping Height
Non-IC 100W A19 6 3/4"
Non-IC Remodeler 6 3/4"
Non IC
IC 60W A19 7 5/16"
AirSeal IC 7 5/16"
®
AirSeal IC 7 1/4"
®
AirSeal IC 40W A19 7 1/2"
®
IC 7 1/2"
Remodeler
Non-IC 60W A19 7 1/2"
7 1/2"
Non-IC Remodeler
1957 - 7" 0.D.
Recessed Downlighting
®
5" Aperture Deep Anodized Reflector Trim
7 3/16"
7 1/2"
Fluorescent
Frame-In Kit
Ceiling Type
1001F13U Series
UniFrame
™
Non-IC
1001F18U Series
UniFrame
™
Non-IC
1001F26U Series
UniFrame
™
Non-IC
1004F13 Series
IC
1004F18 Series
IC
1004F26* Series
IC
1001F13ICU/N
Performance IC
1001F18ICU/N
Performance IC
1001F26ICU/N
Performance IC
1001FDICMX1/N
Performance IC
Advance Mark 10
Dimming 120V
1001FDICMX2/N
Performance IC
Advance Mark 10
Dimming 277V
1910XFH1
Conversion Kit
*Lightolier recommends the use of triple tube lamps.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • I1007
1045/1003R
Non-IC
™
Remodeler Ring
1045/1004IC/N
Convertible
™
IC/Non-IC
Lamping Height
(1) Quad/Triple 13W (GX24q-1) 6 5/16"
(1) Triple 18W (GX24q-2) 6 5/16"
(1) Triple 26W (GX24q-3) 6 5/16"
(1) Quad/Triple 13W (GX24q-1) 7 1/2"
(1) Quad/Triple 18W (GX24q-2) 7 1/2"
(1) Quad/Triple 26W (GX24q-2) 7 1/2"
(1) Quad/Triple 13W (GX24q-1) 7 1/4"
(1) Triple 18W (GX24q-2) 7 1/4"
(1) Triple 26W (GX24q-3) 7 1/4"
(1)Triple 26W (GX24q-3) 7 1/4"
(1) Triple 26W (GX24q-3) 7 1/4"
(1) Quad 13W (GX23-2) 6 3/4"
Type:
