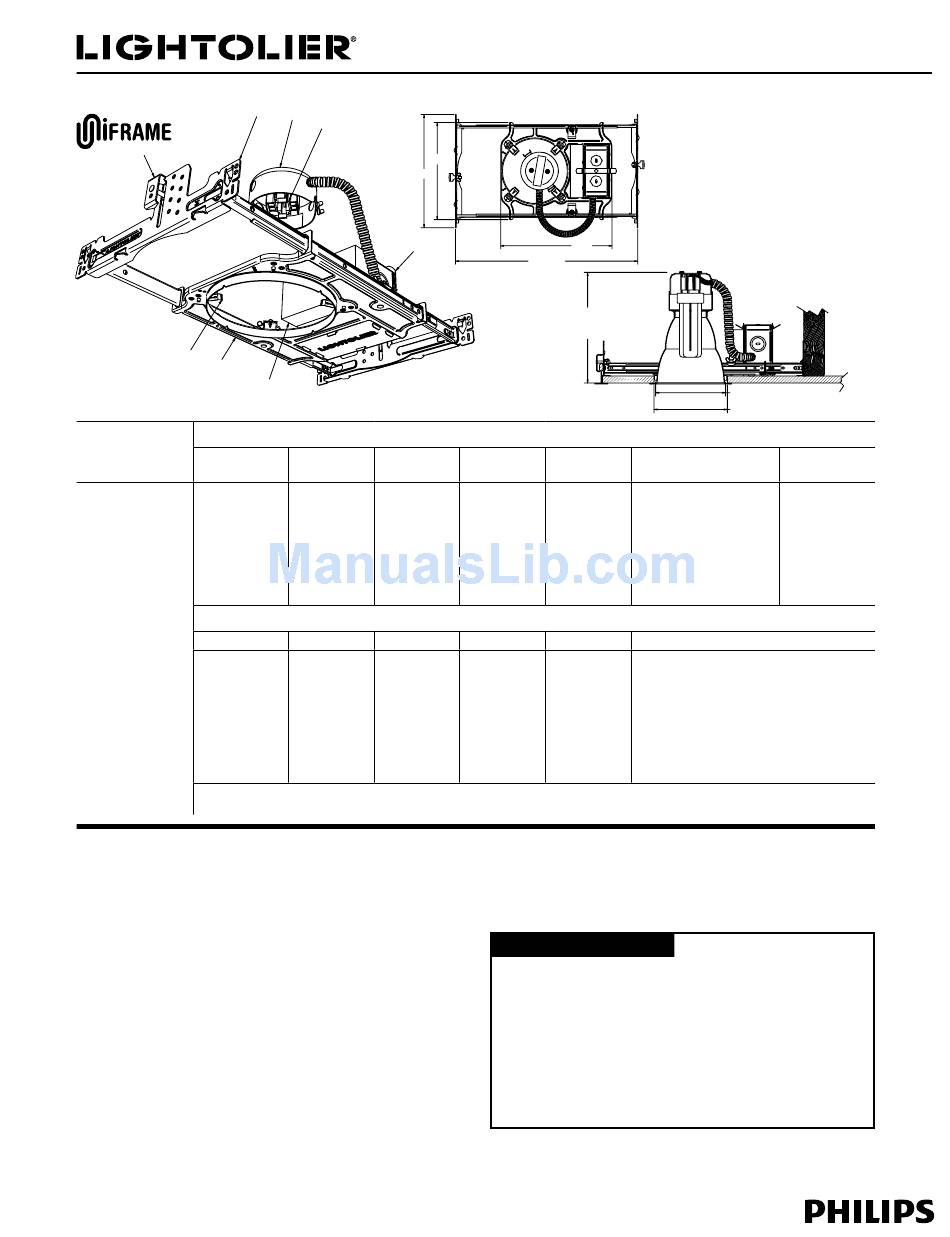

Page 1 of 1
4
2
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe
™
Frame-In Kit
1001FD26L1
(Lutron**26w – 120v)
26w Triple
GX24q-3 Base
120v – 0.26amp max
1001FD26L2
(Lutron**26w – 277v)
26w Triple
GX24q-3 Base
277v – 0.12amp max
Features
1. Mounting Frame: 036" (#20ga.) Galvanized Steel. Accommodates all
ceilings up to 1-1/2" thick; including existing or inaccessible areas.
2. Trim Clips: "Push In / Twist Out" Stainless Steel clips hold reflector flush to
ceiling.
3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL
Listed for maximum of 8 (#12ga.) through branch circuit conductors.
4. UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in grid
ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to
24-1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps
for positive attachment to grid ceiling systems.
5. UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing
tabs, alignment guides, fastener holes and bendable strapping guides for
wood joist installation. Galvanized Steel interlocking slide bars adjust from
12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist spacing, with
or without strapping.
6. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life
protection, class "P" thermally protected, class "A" sound rating.
7. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
8. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
Lightolier is a Philips group brand
5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit
5
8
7
1
6
Uniframe
Compact Fluorescent Performance Series Reflector Trims
™
Vertical Open
Vertical Wall
Wash - Single
1001CL
1001CLSW
1001CD
1001CDSW
1001WH
1001WHSW
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Performance Cone Cone
1013CFL
1012*
1013CDCFL
1013*
1013BK*
1013WH
1013CD*
1071
1045
1046
1046CD
**Lutron Compact SE 5%
*Add NM suffix to catalog number for Natural Metal flange and finish.
Performance Recessed CFL Downlighting
7 3/4"
9"
3
12 15/16" MIN
24 1/8" MAX
Vertical Wall
Horizontal Open Horizontal Wall
Wash - Double
Wash - Single
1001CLDW
1001HCL
1001HCLSW
1001CDDW
1001HCD
1001HCDSW
1001WHDW
1001HWH
1001HWHSW
Satin Cone
Baffle
Wet Location
1008*
1005*
1024
1010*
1005BNM
1078
1005WH
1076
1076WH
Labels
cULus Listed. Suitable for Damp Locations.
Accessories
1967B Extra Thick Ceiling Adapter (1 1/2" to 2" thk)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0708
8 7/8"
FOR O.A. HEIGHT
SEE TRIM
SPECIFICATION
5" FRAME APERTURE
5 1/4" CEILING CUTOUT
Horizontal Wet Location
Lensed / Diffused
Clear Lens
Fresnel
1001HCLC
1001HCLF
1001HCDC
1001HCDF
1001HWHC
1001HWHF
Opal Lens
1001HCLO
1001HCDO
1001HWHO
Type:
1001FDL
Horizontal Cross
Blade
1001HACB
1001HWHCB
