Page 1 of 1
8
7
1
2
5

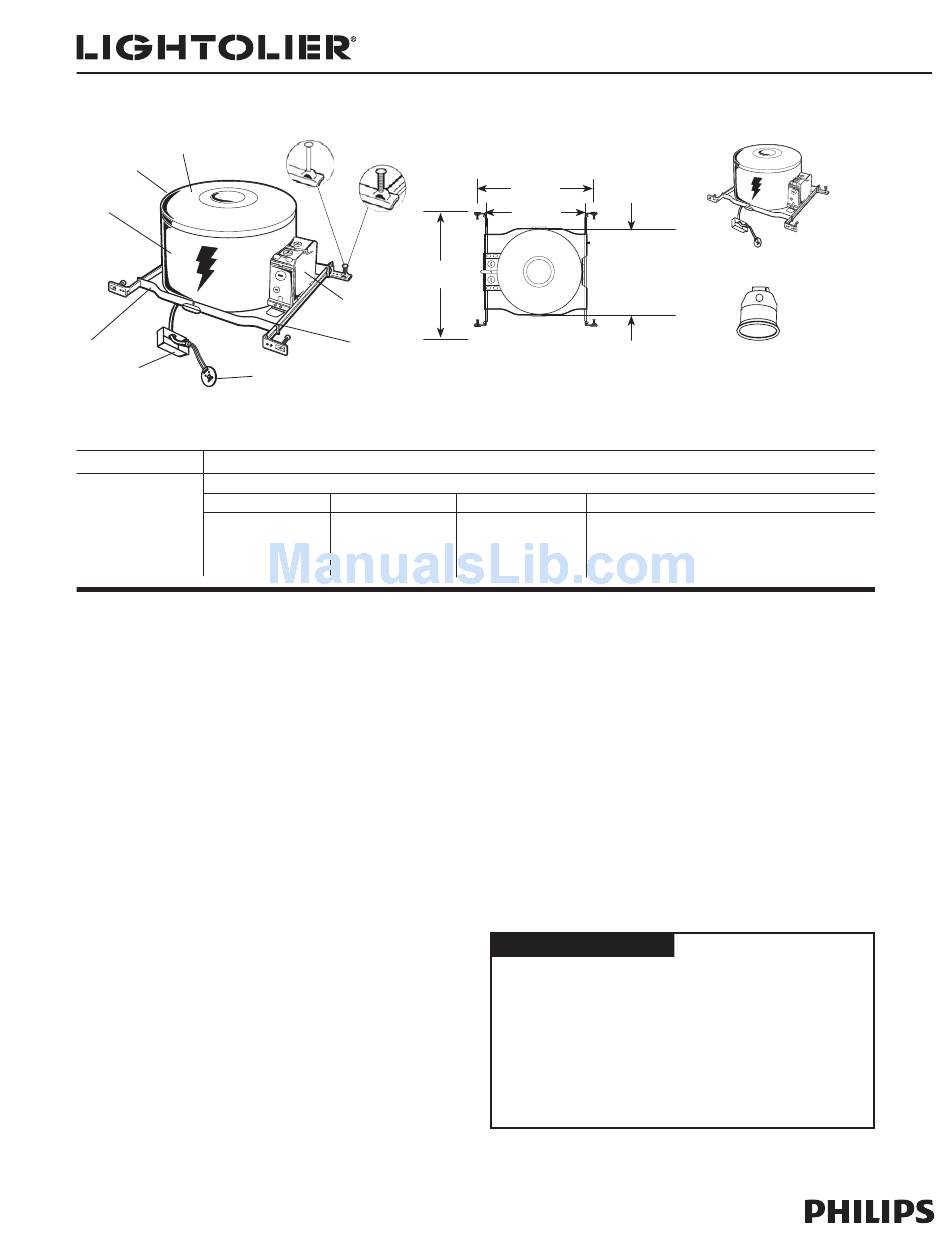

5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
1004ICV
1004ICVN
Features
1. Housing: .032" (#20 ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal
housing minimizes air leak-age to less than 2 CFM at
®
1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3)
and Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#20 ga.) aluminum. Accommodates ceilings up to 1"
thick. 3/8" deep integral lip. Locks into position along length of mounting bars
with locking screws and bendable slot. Four slots are positioned 90° apart to
simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
U.L. listed for maximum of 90°C through branch circuit conductors. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
cable without tools or additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Bars can accommodate 12" O.C. joist spacing
after a slight field modification (see Instruction Sheet). 1004ICV features
integral self tapping phillips screws for secure attachment to wood or metal
construction. 1004ICVN features integral nails for secure attachment to
wood. Both ends attach to T-bar ceilings without the need of accessories.
5. Socket Housing: .036" (#20 ga.) galvanized steel.
6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
7. Thermal Protector: Meets NEC and UL requirements (integral to
transformer). Located inside housing.
8. Transformer: Mounted inside housing, magnetic. 120V primary, nominal 12V
secondary. Removable from below.
Dimming UL
Dimming Controls: Use only dimmers specifically designed for use with mag-
netic transformers, like Lightolier Onset
or any Lightolier Controls dimming systems. Low voltage fixtures may produce
audible sound which may be objectionable in acoustically critical areas.
Lightolier is a Philips group brand
5" Aperture
1004ICVN
1004ICV
(Integral Nail)
(Integral Screw)
3
4
6
Reflector Trims — See Individual Reflector Trim Specification Sheets
Baffles
Aperture Cone
1055LV
1056LV 1064WDLV
1055WHLV
1063LV 1064WDPLV
1064LV
1064CDLV
Sunrise
series LV or VA, dimmers,
®
®
Lytecaster
Recessed Downlighting
®
0
Low Voltage AirSeal
®
Overall Length
1004ICV:
15 5/16"
12 1/4"
13 3/4" MIN.
24" MAX.
Height: 7 1/4"
Ceiling Opening: 5 1/4"
Top View
Adjustable
Pinhole
1052LV
Options & Accessories
Extra-Thick Ceiling
Mounting Ring:
MR 16 Socket Replacement:
Socket for General Electric Turn
and Lock (TAL) MR16 Lamp:
Labels
UL (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
®
AirSeal
is a registered trademark of ALCOA.
®
Romex
is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0711
Insulated Ceiling Frame-In Kit
®
Frame-In Kit
Overall Width
1004ICV: 10 3/8"
Reflector Trim
Elbow
1062LV
1967B - 1 1/4" to 2" thick ceilings.
1975A
1975TAL
Type:
1004ICV
