Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Reflector Trims — See Individual Reflector Trim Specification Sheets
1000ICV
Baffles
1055LV
1055WHLV

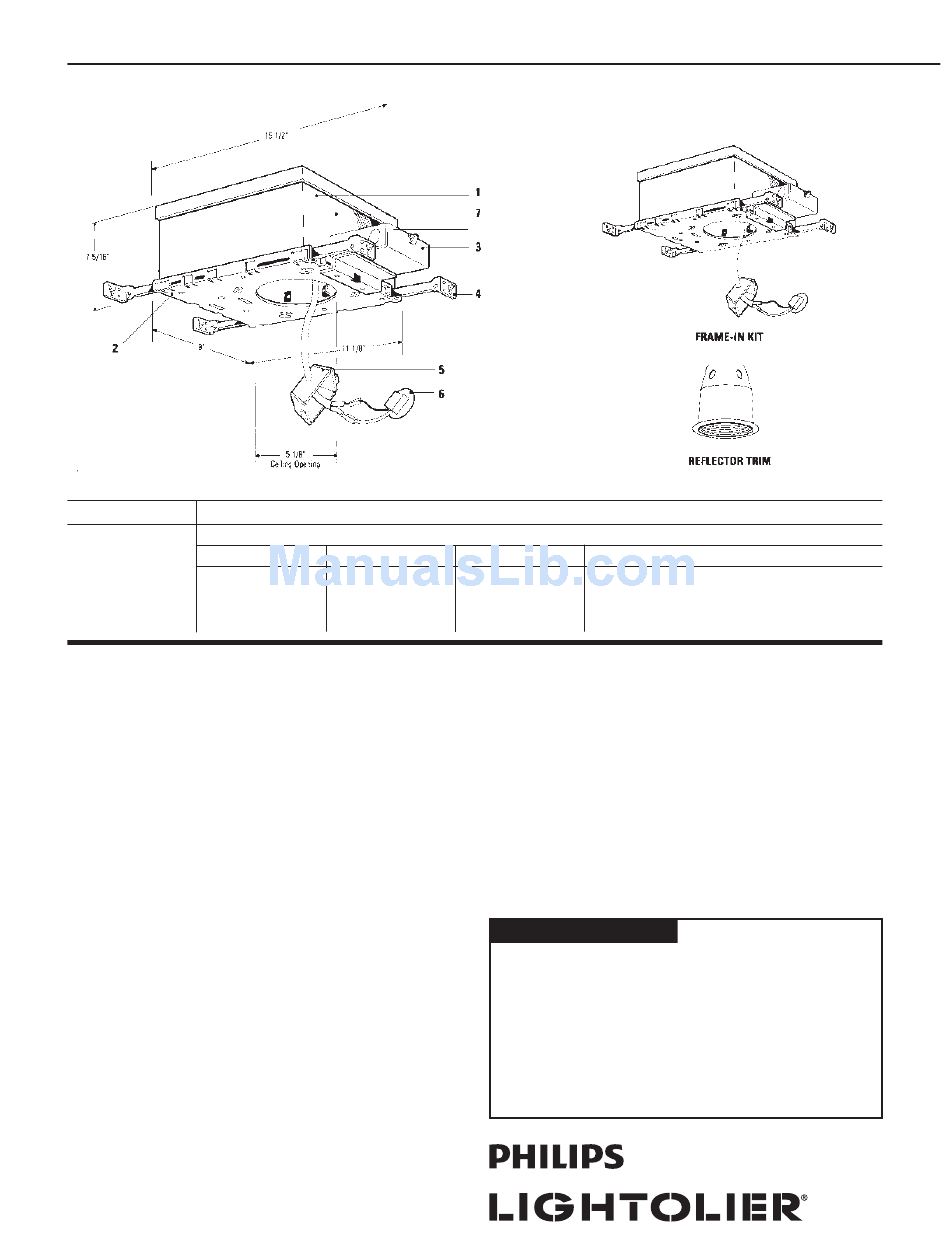

Features
1. Housing: .026" (#20 ga.) galvanized steel. U.L. listed for direct contact with
thermal insulation. Access door for inspection of junction box.
2. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. Four slots are positioned 90º apart to simplify
alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.
3. Junction Box: 2" x 4" x 4", .063" (#14 ga.) galvanized steel. U.L. listed for,
maximum of 6 No. 12 ga., 90º C through branch circuit conductors. Quick
release "L" shaped cover for outside access to wiring. Access door inside of
housing allows easy inspection of wiring without removal of housing. Integral
cable clamps permit attachment of nonmetallic Romex
without the need for additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to
27", rotatable and lockable, with integral T-bar tabs. Attach to wood joist or
T-bar ceilings without need of accessories.
5. Socket Housing: .036" (#20 ga.) galvanized steel.
6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
7. Thermal Protector: Meets NEC and U.L. requirements. Located inside
housing.
8. Transformer: Mounted inside, magnetic, 120V primary, norminal 12V
secondary. Removable from below.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with magnetic
transformers, like Lightolier Onset, Sunrise series LV or VA, dimmers, or any
Lightolier Controls dimming system. Low voltage fixtures may produce audible
sound when used with dimmers, which may be objectionable in acoustically criti-
cal areas.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • J0711
Lytecaster
Recessed Downlighting
®
5" Aperture Incandescent Insulated Ceiling Frame-In Kit
8
Adjustable
Aperture Cone
Pinhole
1063LV 1064WDLV
1052LV
1064LV 1064WDPLV
1056LV
1064CDLV
Options & Accessories
Mounting Bars:
Plaster Ceiling Ring:
Extra-Thick Ceiling
Mounting Ring:
MR-16 Socket Replacement:
T-Bar Ceiling Clips:
Labels
UL (Type I.C., Suitable for Damp Locations), I.B.E.W.
or armored cable
®
Romex
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Elbow
1062LV
1964 - 20" set of (2)
1960 - 7/8" depth for wet plaster ceilings.
1967B - up to 2" thick ceilings.
1975A
1956 set of (4)
is a registered Trademark of General Cable Industries Inc.
®
Type:
1000ICV
