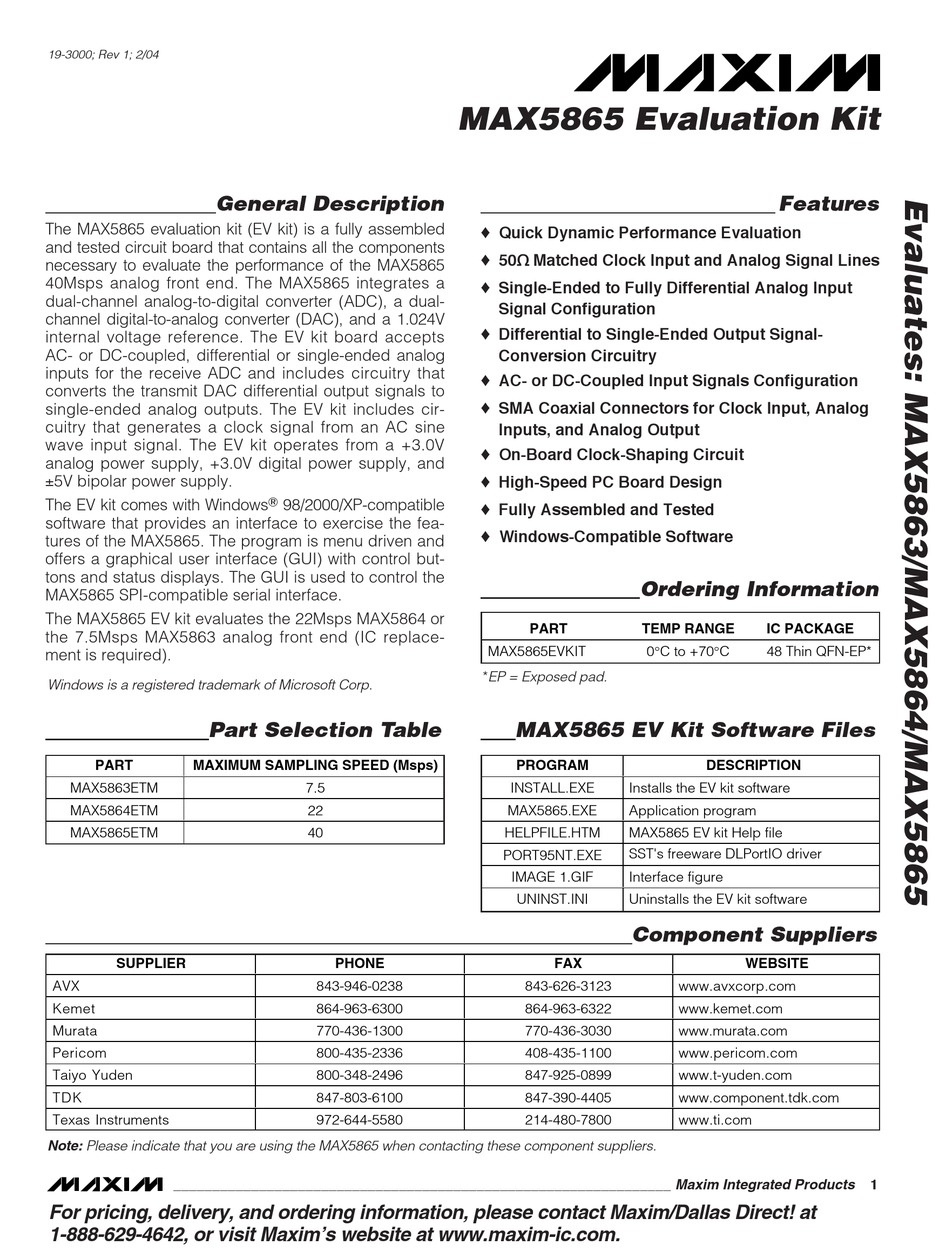

19-3000; Rev 1; 2/04

General Description

The MAX5865 evaluation kit (EV kit) is a fully assembled
and tested circuit board that contains all the components
necessary to evaluate the performance of the MAX5865
40Msps analog front end. The MAX5865 integrates a
dual-channel analog-to-digital converter (ADC), a dual-
channel digital-to-analog converter (DAC), and a 1.024V
internal voltage reference. The EV kit board accepts
AC- or DC-coupled, differential or single-ended analog
inputs for the receive ADC and includes circuitry that
converts the transmit DAC differential output signals to
single-ended analog outputs. The EV kit includes cir-
cuitry that generates a clock signal from an AC sine
wave input signal. The EV kit operates from a +3.0V
analog power supply, +3.0V digital power supply, and
±5V bipolar power supply.
The EV kit comes with Windows
software that provides an interface to exercise the fea-
tures of the MAX5865. The program is menu driven and
offers a graphical user interface (GUI) with control but-
tons and status displays. The GUI is used to control the
MAX5865 SPI-compatible serial interface.
The MAX5865 EV kit evaluates the 22Msps MAX5864 or
the 7.5Msps MAX5863 analog front end (IC replace-
ment is required).
Windows is a registered trademark of Microsoft Corp.
Part Selection Table
PART
MAXIMUM SAMPLING SPEED (Msps)
MAX5863ETM
MAX5864ETM
MAX5865ETM
SUPPLIER
AVX
Kemet
Murata
Pericom
Taiyo Yuden
TDK
Texas Instruments
Note: Please indicate that you are using the MAX5865 when contacting these component suppliers.
________________________________________________________________ Maxim Integrated Products
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim's website at www.maxim-ic.com.
98/2000/XP-compatible
7.5
22
40
PHONE
843-946-0238
864-963-6300
770-436-1300
800-435-2336
800-348-2496
847-803-6100
972-644-5580
MAX5865 Evaluation Kit
Quick Dynamic Performance Evaluation
50Ω Matched Clock Input and Analog Signal Lines
Single-Ended to Fully Differential Analog Input
Signal Configuration
Differential to Single-Ended Output Signal-
Conversion Circuitry
AC- or DC-Coupled Input Signals Configuration
SMA Coaxial Connectors for Clock Input, Analog
Inputs, and Analog Output
On-Board Clock-Shaping Circuit
High-Speed PC Board Design
Fully Assembled and Tested
Windows-Compatible Software
PART
MAX5865EVKIT
*EP = Exposed pad.
MAX5865 EV Kit Software Files
PROGRAM
INSTALL.EXE
Installs the EV kit software
MAX5865.EXE
Application program
HELPFILE.HTM
MAX5865 EV kit Help file
SST's freeware DLPortIO driver
PORT95NT.EXE
IMAGE 1.GIF
Interface figure
UNINST.INI
Uninstalls the EV kit software
Component Suppliers
FAX
843-626-3123
864-963-6322
770-436-3030
408-435-1100
847-925-0899
847-390-4405
214-480-7800
Features

Ordering Information

TEMP RANGE
IC PACKAGE
0 C to +70 C
48 Thin QFN-EP*
DESCRIPTION
WEBSITE
www.avxcorp.com
www.kemet.com
www.murata.com
www.pericom.com
www.t-yuden.com
www.component.tdk.com
www.ti.com
1
