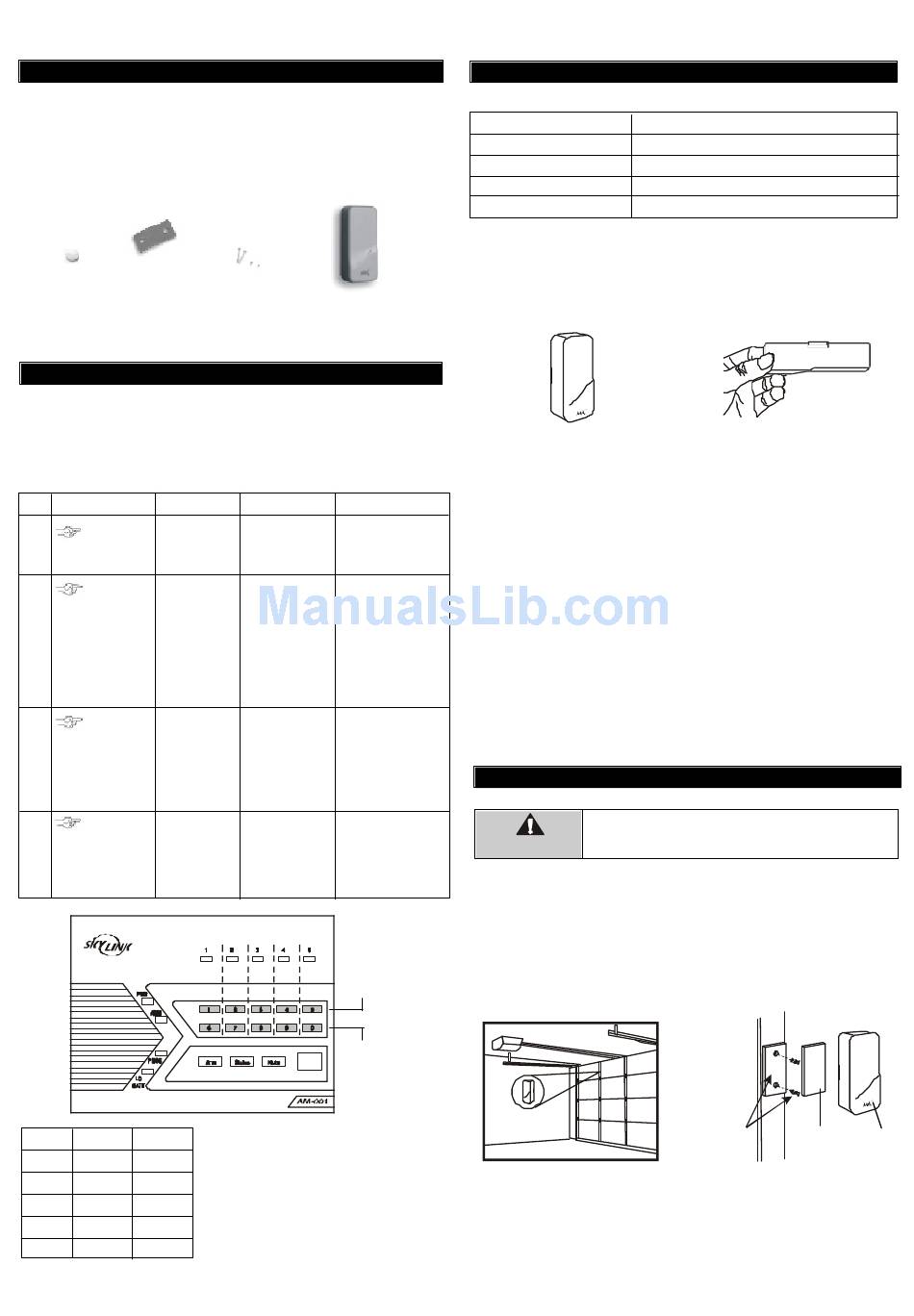

1. INTRODUCTION
The garage door monitor TM sensor is designed to monitor the status of
your garage door and advise you if the door is open. It works in
conjunction with AAA+ TM Control Panel. When the monitored door is
opened, the control panel will either alert you or alarm will be triggered.
In this package, you should find a garage door monitor
lithium battery and other mounting accessories.
Mounting plate
3V Lithium
battery
Please follow the instructions below to set up the garage door monitor
sensor.
2. LEARN SENSOR TO AAA+
In order for the sensor to communicate with the control panel properly,
the sensor must be programmed to the control panel. Follow the brief
instructions below or refer to the detail instructions from the AAA+
User's Instructions to program the sensor to the control panel. Before
proceeding, please remove the battery isolator from the sensor.
Step Keys Function
Enter Program-
[PROG]
1
ming mode
[MPIN]
Select learn
[3]
2
sensor
programming
Select sensor
[0] to [9]
3
location
Activate sensor
Activate the
4
sensor by tilt-
ing the sensor
from horizontal
to vertical
position
®
SENSOR 1 SENSOR 2
Button [1] Button [6]
Zone 1
Zone 2
Button [2] Button [7]
Button [3] Button [8]
Zone 3
Zone 4
Button [4] Button [9]
Zone 5
Button [5] Button [0]
Model GS-102
sensor, 3V
TM
2 pcs 3.5 x 18 screws
2 pcs 3.5 x 12 screws
TM
CONTROL PANEL
Description Note
3 beeps for valid
Enter master
password. 1 long
password to
beep for invalid
programming
password.
mode
After [3] is entered,
some zone LEDs will
flash once, or twice,
some will be off. The
zone LEDs represent
whether that zone is
already occupied by
another sensor.
**See Table A below.
Refer to the dia- After you have
gram below to selected the zone,
select the sensor that zone LED will
location, which be on.
includes the zone
and sensor
number.
Once the sensor You will hear [Zone X
is activated, the Sensor Y Accepted ],
signal will be trans-
where X and Y are
mitted to the Con-
the zone and sensor
trol Panel which
numbers you have
will be stored. selected.
This row :
Buttons for
Sensor 1
Zone LED :
Flash once
This row :
Buttons for
Sensor 2
Zone LED :
Flash twice
Note:
Each location is allowed to learn one
sensor only. Learning a sensor to a
location will clear the memory of the
sensor previously learnt.
2. LEARN SENSOR TO AAA+
ZONE LED
O f f
Flashes once
Flashes twice
Flashes once, then twice
** Table A: Zone LED status for learning sensors.
Sensor
After learning the sensor to the control panel, you may test the communi-
cation by placing the sensor in vertical position & horizontal position.
TM
Vertical
TM
When the sensor is in vertical position,
the receiver will not beep.
If the sensor is face up in the vertical position, the control panel will not
beep, indicating the sensor is in a closed position.
If the sensor is face down in the horizontal position, the control panel will
beep and a zone LED will flash to indicate a door is open.
You can change the orientation of the sensor and you should see the
change in response of the receiver. If the sensor and receiver are
working properly in close proximity, you can now begin to install the
sensor onto your garage door.
NOTE: It is normal to hear a rattle from the sensor when tilted or
rotated to another position.
The control panel will announce the sensor's status, such as "Zone 1
Sensor 1 Triggered", and corresponding zone LED will flash and buzzer
will beep. If the magnetic contact is closed, the beeping will stop.
WARNING
Attached the sensor to the garage door with double-sided foam tape if the
surface of your garage door is smooth and clean enough to provide a
good adhesive surface, such surface can usually be found on a metal
garage door. Please ensure the surface is smooth and clean.
For wooden garage doors, it is recommended to use the mounting plate
and screws as well.
Note: Mount the sensor near the top of the garage door for best results.
Note: Ensure you straighten up the antenna on the receiver to receive the best
possible reception.
TM
CONTROL PANEL (CONT)
DESCRIPTION
Zone is not occupied by any sensor
This zone is occupied by sensor 1.
This zone is occupied by sensor 2.
This zone is occupied by sensors 1 and 2.
When the sensor is in horizontal position, the
receiver will beep and a zone LED will flash.
3. INSTALLATION
Unplug the power cord of your garage door opener
before installation to ensure power is not connected.
Mounting plate
and screws
(optional)
Horizontal
Double-sided Sensor
foam tape
