QUICK
SETUP GUIDE
39" LCD TV
NS-39L400NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Power cord
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
TV stand
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product
Information, then click .
M5 (8 mm length) (4 pcs.) screws

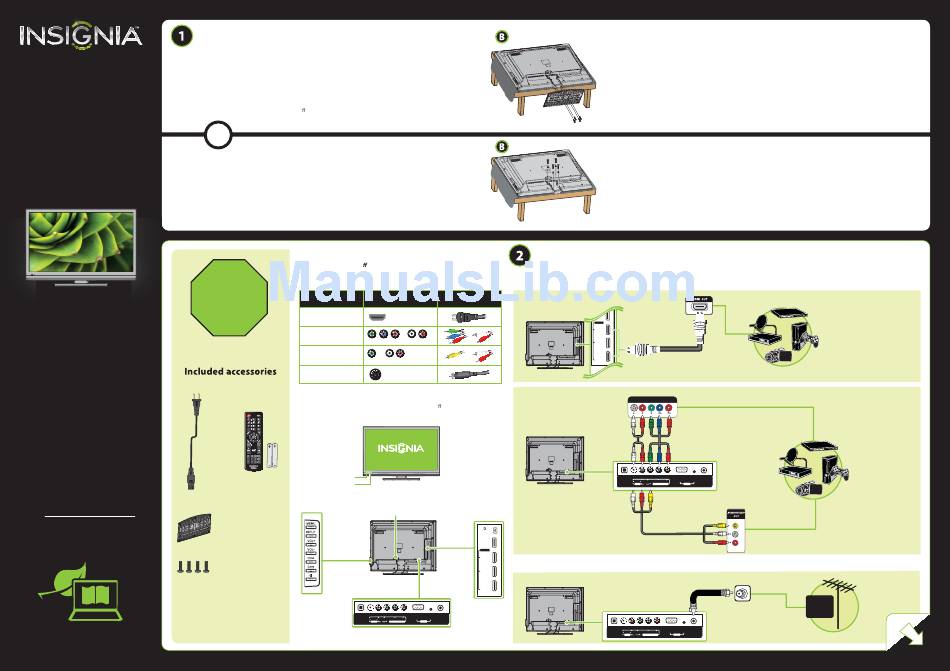

START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B
Make sure that the wide edge of the TV stand faces the front of your TV, then
secure the TV stand to the stand column with the four M5 screws provided.
Note: The appearance of your TV may di er from the illustrations in this guide.
- OR -
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Remove the screws that secure the stand column to the TV screen, then remove
the stand column.
C See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices.
STOP!
For the best video quality, use the best available
connection. Use the cables that came with your devices.
Do not plug your
power cable in until
VIDEO QUALITY
all other devices have
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Remote control
Note: You can use the HDMI 1 (DVI) jack to connect a DVI device to your TV. Attach an
and two AAA
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI device's
batteries
jack. See your online User Guide for more information about di erent types of HDMI (ARC
and DVI).
Features
Front view
Remote control sensor
Power indicator
Back view
Power connector
DIGITAL
OUTPUT L AUDIO
(OPTICAL) AV IN
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) and/or connect a device such as
a DVD or Blu-Ray Disc player, game station, or camcorder?
JACK TYPE CABLE CONNECTOR
Using an HDMI cable (BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
/
AUDIO
OUT
USB
HDMI IN
HDMI 3
How do I connect my TV to an antenna or cable wall jack?
HDMI 2
HDMI 1
(DVI+ARC)
VGA PC/DVI AUDIO IN ANT/
R Y/VIDEO P B P R CABLE IN
COMPONENT IN PC IN
M5 screws
/
AUDIO
OUT
USB
HDMI IN
HDMI 3
HDMI 2
HDMI 1
(DVI+ARC)
COMPONENT OUT Component cable option
ANT/
DIGITAL VGA PC/DVI AUDIO IN
OUTPUT L AUDIO R Y/VIDEO P P CABLE IN
B R
(OPTICAL) AV IN COMPONENT IN PC IN
AV cable option
DIGITAL VGA PC/DVI AUDIO IN ANT/
OUTPUT L AUDIO R Y/VIDEO P B P R CABLE IN
(OPTICAL) AV IN COMPONENT IN PC IN
Multipurpose jacks: You can plug any
device that uses HDMI into any HDMI
jack. However, certain ARC or DVI
devices must be connected to the
HDMI1 (DVI+ARC) jack. See the
instructions that came with your ARC
or DVI device for more information.
Note: The HDMI1(DVI+ARC) jack is a
shared jack. This means that you can
connect only one ARC or DVI device at
a time.
Note: The component video and AV
jacks are shared. This means you can
connect only one component video or
AV device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video cable
connector to the green Y/VIDEO jack
on the back of your TV.
CABLE
OVER
