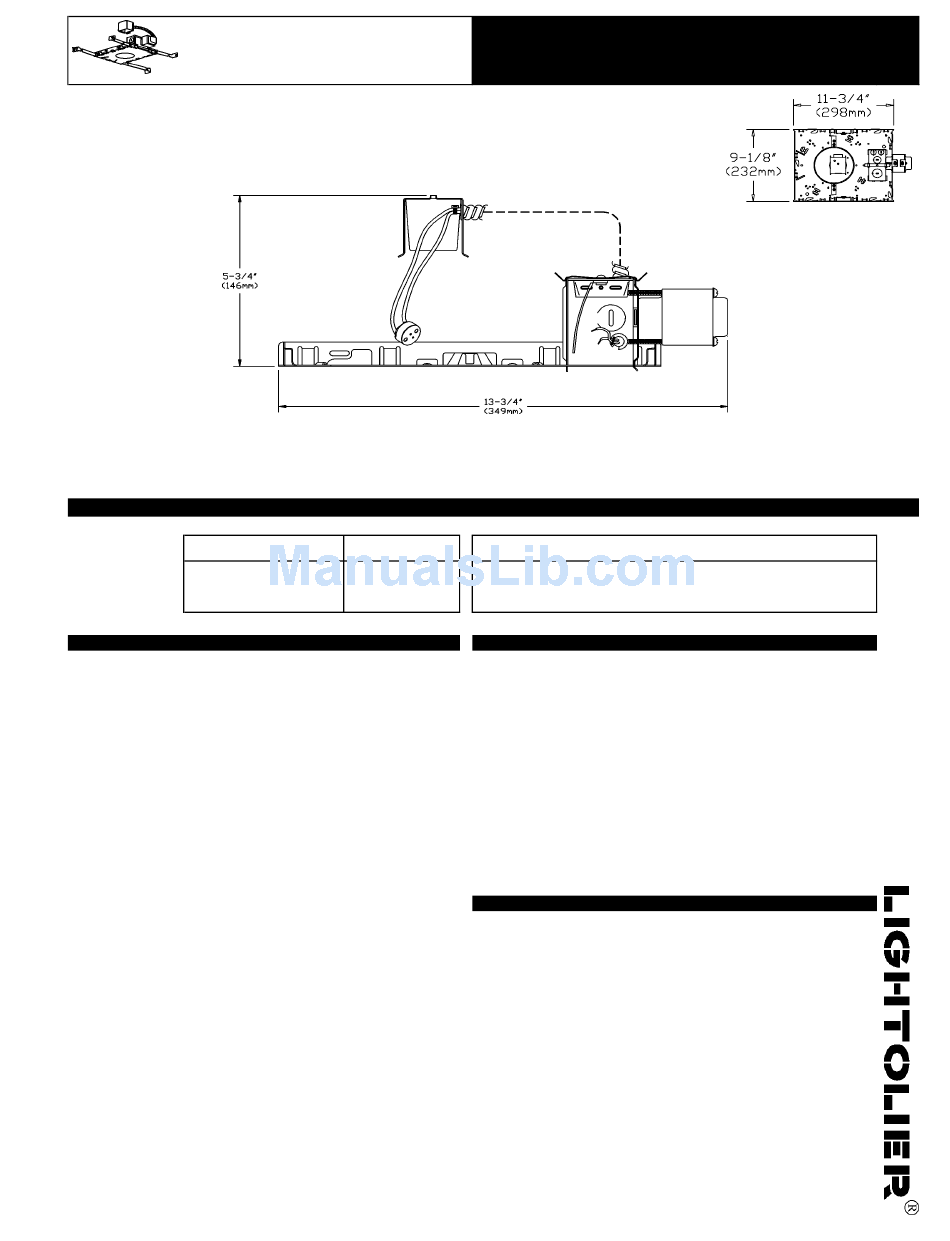

Lightolier Lytecaster 402MRX Specification

POWER PACK
402MRX
Features
Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º
apart to simplify alignment.
Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to
27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail
eliminates the need of additional nailing.
Mounting Bars Locking Clip : (1) locks mounting bars in place.
Snap-on Socket Cup : 22ga. galvanized steel. Easy snap-on to housing.
Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon
250º leads to junction box.
Transformer : 75VA Magnetic, 120 volt primary, nominal 12 volt secondary,
class "H".
Thermal Protector : Meets CSA/UL requirements. Insulation, if used, must
be kept 3" (76mm) away from luminaire sides and junction box.
Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel .
CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit
conductors. Integral cable clamp permit attachment of non metallic Loomex
without need of additional connectors. Pry-out knock-outs accept BX cable.
Easy access from both sides with snap-on covers.
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY
THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.
Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
4 3/4" (121mm) aperture
Low Voltage MR16 12V
Standard Frame-In-Kit (Non-IC)
Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately
CUT-OUT
4 3/4" (121mm)
Lytecaster
Recessed Downlight
REFLECTOR TRIM
Accepts all 4 3/4" (121mm) Low Voltage MR16 trims 400 series: see
Reflector Trim specification sheets.
Accessories
Mounting Bars Extenders : 1964
20" (508mm) long. Set of 2
Mounting Bar Locking Clips : 0098
To lock mounting bars in place after installation. Set of 12.
Labels : CSA , UL
Damp or Wet location rated depending on trim used.
07-02
402MRX
