Lightolier Architectural Decorative 4A28 Specification Sheet

Page 1 of 2

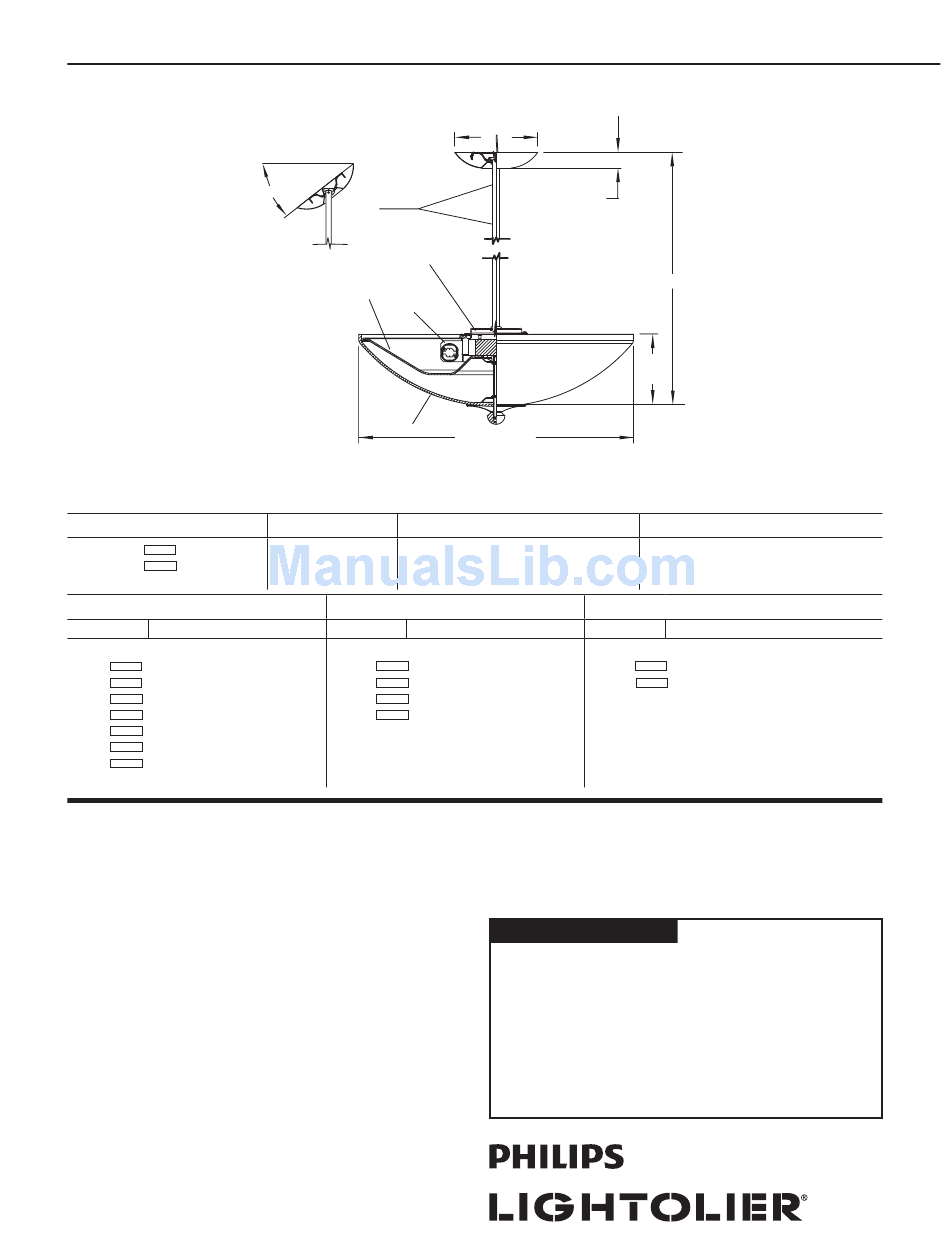

Note: Drawing above illustrates only one of the
suspension types available for this luminaire. For
other drawings, consult individual Suspension
Specification Sheet numbers as noted in
Suspension chart(s) below.
Complete Luminaire consists of Body and Suspension: Order each separately.
Body Cat. No.
4A28442APBU
4A28442ASNU
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix: PB, SN
4SB115 15 3/16" (close-to-ceiling)
4SB118
16 5/8"
4SB121 17 15/16"
4SB124 24 3/16"
4SB128 28"
4SB135 33 5/8"
4SB142 38 15/16"
See Specification Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells). OAL is defined from bottom of diffuser
to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connector for quick
connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, only
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory.
Finishes: PB = Polished Brass SN = Satin Nickel
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C0609
45"
Max.
4
3
2
5
1
Finish Lamps
Polished Brass 4-26 Triple Tube Compact Fluorescent or
Satin Nickel 4-32 Triple Tube Compact Fluorescent or
4-42 Triple Tube Compact Fluorescent
Multiple Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix: PB, SN
4SB224 24 3/16"
4SB228
28"
4SB235
33 5/8"
4SB242 38 15/16"
See Specification Sheet 4SB224.
Architectural Decorative
Pendalux Cirrus 28" Diameter Body 4-26/32/42 Triple Tube
7"
1 3/8"
6 3/16"
28"
Suspension Extension Kits
Cat. No.
Specify Finish as Suffix: PB, SN
4SXT48
4SXT96
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Nomina. OAL
Options
MX1 (26W, 120V only), E3 (347V), or EM
Add suffix to cat. no.
Nominal OAL
48"
96"
Type:
4A28
