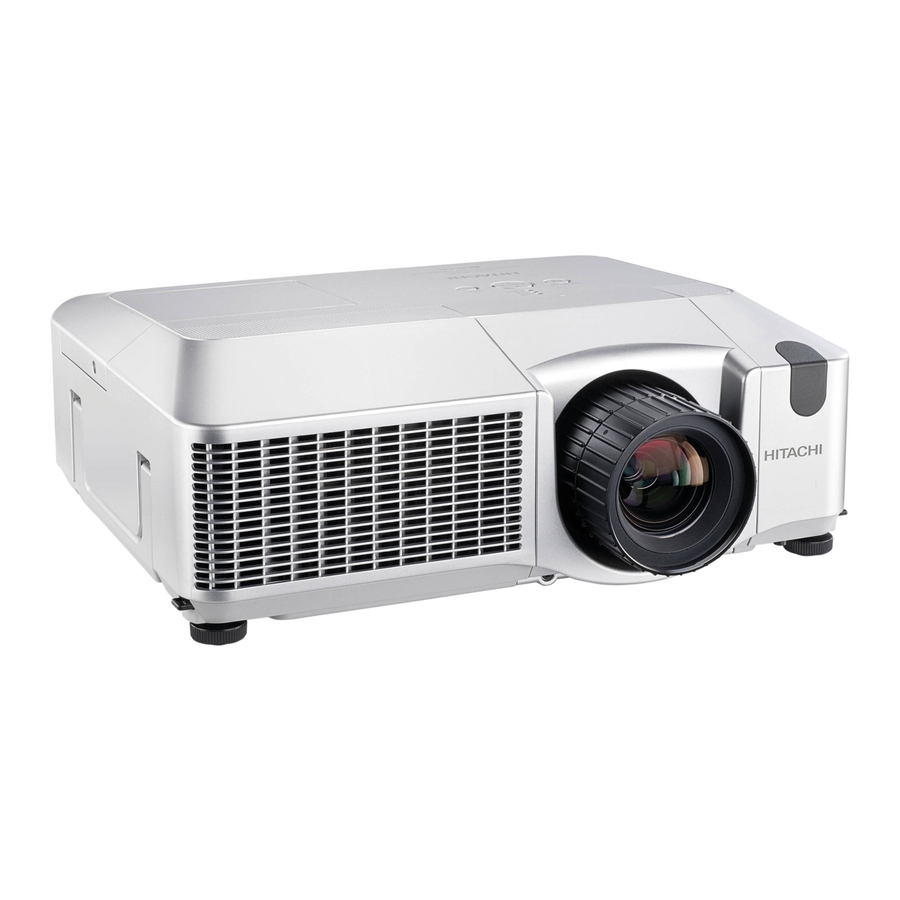

Page 1 Projector CP-WUX645N User's Manual (detailed) – Operating Guide Thank you for purchasing this projector. ►Before using this product, please read the "User's Manual - WARNING Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual.
Page 2 Read this Safety Guide first. Projector User's Manual - Safety Guide Thank you for purchasing this projector. WARNING • Before using, read these user's manuals of this projector to ensure correct usage through understanding. After reading, store them in a safe place for future reference.
Page 3: Safety Precautions
Safety Precautions WARNING Never use the projector if a problem should occur. Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet.
Page 4 Safety Precautions (continued) WARNING Be cautious of High temperatures of the projector. High temperatures are generated when the lamp is lit. It could result in fire or burn. Use special caution in households where children are present. Do not touch about the lens, air fans and ventilation openings during use or immediately after use, to prevent a burn.
Page 5 Safety Precautions (continued) WARNING Be careful in handling the light source lamp. The projector uses a high-pressure mercury glass lamp made of glass. The lamp can break with a loud bang, or burn out. When the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector’s vent holes.
Page 6 Safety Precautions (continued) CAUTION Be careful in moving the projector. Neglect could result in an injury or damage. • Do not move the projector during use. Before moving, disconnect the power cord and all external connections, and close the slide lens door or attach the lens cap.
Page 7 Safety Precautions (continued) CAUTION Remove the power cord for complete separation. • For safety purposes, disconnect the power cord if the projector is not to be used for prolonged periods of time. Disconnect the • Before cleaning, turn off and unplug the projector. Neglect could result in plug from the fire or electrical shock.
Page 8 Safety Precautions (continued) NOTE About consumables. Lamp, LCD panels, polarizors and other optical components, and air filter and cooling fans have a different lifetime in each. These parts may need to be replaced after a long usage time. • This product isn’t designed for continuous use of long time. In the case of continuous use for 6 hours or more, or use for 6 hours or more every day (even if it isn’t continuous), or repetitious use, the lifetime may be shortened, and these parts may need to be replaced even if one year has not passed since the beginning of using.
Page 9 Lamp WARNING HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
Page 10 Regulatory Notices FCC Statement Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 11: Table Of Contents
Contents Contents (EASY MENU continued ..28) About this manual... 1 OLOR HARPNESS HISPER Contents ....2 IRROR ESET ILTER TIME...
Page 12: Projector Features
Projector features / Preparations Projector features This projector has a capability to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance. Moreover, the projector has the following features to extend its potentiality for broad use.
Page 13: Part Names
Part names Part names Projector HOT! (1) Speakers (x 2) ( (2) Focus ring ( (3) Zoom ring ( (11) (4) Lamp cover ( The lamp unit is inside. (15) (5) Lens shift cover ( HOT! (6) Horizontal lens shift dial ( (12) (7) Vertical lens shift dial ( (14)
Page 14: Control Panel
Part names Control panel (1) STANDBY/ON button ( (2) MENU button ( It consists of four cursor buttons. (3) INPUT button ( 17, 72) (4) POWER indicator ( (5) TEMP indicator ( (6) LAMP indicator ( Rear panel (1) Shutdown switch ( (2) Security slot ( (3) Security bar ( (4) AC IN (AC inlet) (...
Page 15: Remote Control
Part names Remote control LASER (1) Laser pointer ( INDICATOR STANDBY/ON VIDEO (14) It is a beam outlet. MY SOURCE/ DOC.CAMERA (2) LASER INDICATOR ( SEARCH (3) LASER button ( (4) STANDBY/ON button ( (17) BLANK LASER (5) VOLUME+/- buttons ( (6) MUTE button ( (26) (7) VIDEO button (...
Page 16: Setting Up
Setting up Setting up Install the projector according to the environment and manner the projector will be used in. ►Place the projector in a stable horizontal position. If the WARNING projector falls or is knocked over, it could cause injury and/or damage to the projector.
Page 17: Arrangement
Setting up Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1920×1200 (a) Screen size (diagonal) (b) Projection distance (±10%) 20) is set full upward. (c) Screen height (±10%), when the vertical lens shift ( On a horizontal surface...
Page 18: Adjusting The Projector's Elevator
Setting up Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at 10°...
Page 19: Connecting Your Devices
Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
Page 20 Setting up Connecting your devices (continued) • Be sure to read the manuals for devices before connecting them to the projector, NOTE and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution. - Be sure to consult to the administrator of the network.
Page 21: Connecting Power Supply
Setting up Connecting power supply Connect the connector of the power cord to the AC IN (AC inlet) of the projector. Firmly plug the power cord's plug into the outlet. AC IN Connector of the power cord to the outlet ►Please use extra caution when connecting the power cord, as WARNING incorrect or faulty connections may result in re and/or electrical shock.
Page 22: Remote Control
Align and insert the two AA batteries (HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place.
Page 23: About The Remote Control Signal
Remote control About the remote control signal The remote control works with the projector’s remote sensors. This projector has three remote sensors on the front, on the top, and on the back. The sensors can be respectively turned active or inactive using the “REMOTE 51).
Page 24: Using As A Wired Remote Control
Remote control Using as a wired remote control The accessory remote control works as a wired remote control, when the wired control port at the bottom of the remote control connects with the REMOTE CONTROL port on the back of the projector via an audio cable with 3.5 diameter stereo mini plugs.
Page 25 Remote control Using as a simple PC mouse & keyboard (continued) • This function is not available in any of the following cases: NOTE - While the lamp is warming up. (The POWER indicator blinks in green.) 24), TEMPLATE ( 46) or MY IMAGE ( - While displaying BLANK ( screen.
Page 26: Power On/Off
Projector features / Preparations Power on/off Power on/off STANDBY/ON button POWER indicator Turning on the power LASER INDICATOR STANDBY/ON VIDEO MY SOURCE/ DOC.CAMERA Make sure that the power cord is rmly and SEARCH BLANK LASER correctly connected to the projector and the outlet. ASPECT Remove the lens cover, and set the power switch PUSH...
Page 27: Operating
Operating Operating Adjusting the volume Use the VOLUME + / VOLUME - buttons to adjust the MENU RESET volume. POSITION AUTO PbyP A dialog will appear on the screen to aid you in adjusting the MAGNIFY MY BUTTON VOLUME volume.If you do not do anything, the dialog will automatically disappear after a few seconds.
Page 28: Searching An Input Signal
Operating Selecting an input signal (continued) Press the VIDEO button on the remote control to select an LASER input for video signal. INDICATOR STANDBY/ON VIDEO Each time you press the button, the projector switches its MY SOURCE/ video input port as below. DOC.CAMERA COMPONENT (Y, C S-VIDEO...
Page 29: Adjusting The Zoom And Focus
Operating Focus ring Adjusting the zoom and focus Zoom ring Use the zoom ring to adjust the screen size. Use the focus ring to focus the picture. Adjusting the lens shift Lens shift cover Use the vertical lens shift dial to shift the picture upward or downward.
Page 30: Adjusting The Position
Operating Adjusting the position PUSH ENTER Press the POSITION button on the remote control when no PAGE UP PAGE DOWN menu is indicated. The “POSITION” indication will appear on the screen. MENU RESET PbyP POSITION AUTO Use the ▲/▼/◄/► cursor buttons to adjust the picture position. When you want to reset the operation, press the RESET MAGNIFY MY BUTTON...
Page 31 Operating Correcting distortion (continued) (2) MANUAL displays a dialog for keystone correction. Use the ◄/► cursor buttons to select the direction to correct ( ) then use the ▲/▼ buttons for adjustment. Even if you do not do anything, the dialog will automatically disappear after a few seconds.
Page 32: Using The Magnify Feature
Operating Using the magnify feature Press the ON button of MAGNIFY on the remote control. MENU RESET The “MAGNIFY” indication will appear on the screen and POSITION AUTO PbyP the projector will go into the MAGNIFY mode. When the MY BUTTON VOLUME MAGNIFY ON button of MAGNIFY is pressed rst after the projector...
Page 33: Temporarily Blanking The Screen
Operating Temporarily blanking the screen Press the BLANK button on the remote control. MY SOURCE/ DOC.CAMERA The blank screen will be displayed instead of the screen of SEARCH input signal. Please refer to the BLANK item in SCREEN 42). Menu ( BLANK LASER To exit from the blank screen and return to the input signal...
Page 34: Pbyp (Picture By Picture)
Operating PbyP (Picture by Picture) The PbyP is a function to display two different picture signals on a screen that is split in two areas for each signal. Some of functions can be used with the same operation as it for the normal mode (not in the PbyP mode). There are some operations available only in the PbyP mode.
Page 35: Using The Menu Function
Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, C.C. and EASY MENU. The EASY MENU consists of functions often used, and the other menus are classied into each purpose and brought together as the Advanced Menu. Each of these menus is operated using the same methods.
Page 36: Easy Menu
EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control. Then perform it according to the following table. Item Description Using the ◄/►...
Page 37: (Easy Menu Continued
EASY MENU EASY MENU (continued) Item Description Using the ◄/► buttons adjusts the brightness. BRIGHTNESS 29). See the BRIGHTNESS item in PICTURE Menu ( Using the ◄/► buttons adjusts the contrast. CONTRAST 29). See the CONTRAST item in PICTURE Menu ( Using the ◄/►...
Page 38: Picture Menu
PICTURE Menu PICTURE Menu From the PICTURE Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or the ENTER button on the remote control to execute the item.
Page 39 PICTURE Menu PICTURE Menu (continued) Item Description Using the ▲/▼ buttons switches the color temperature mode. #1 HIGH #1 CUSTOM #2 MID #2 CUSTOM #3 LOW #3 CUSTOM #6 CUSTOM #6 Hi-BRIGHT-3 #4 Hi-BRIGHT-1 #5 CUSTOM #5 Hi-BRIGHT-2 #4 CUSTOM To adjust CUSTOM Selecting a mode whose name includes CUSTOM and then pressing the ►...
Page 40 PICTURE Menu PICTURE Menu (continued) Item Description Using the ▲/▼ cursor buttons changes the active iris control mode. PRESENTATION THEATER TURN OFF Feature The active iris displays the best presentation PRESENTATION image for both bright and dark scenes. ACTIVE IRIS The active iris displays the best theater image for THEATER both bright and dark scenes.
Page 41: Image Menu
IMAGE Menu IMAGE Menu From the IMAGE Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item.
Page 42 IMAGE Menu IMAGE Menu (continued) Item Description Using the ▲/▼ buttons adjusts the horizontal phase to eliminate icker. Right Left H PHASE • This item can be selected only for an RGB signal or a component video signal. (except 480i@60, 576i@50, SCART RGB input. ) Using the ▲/▼...
Page 43: Input Menu
INPUT Menu INPUT Menu From the INPUT Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item.
Page 44 INPUT Menu INPUT Menu (continued) Item Description Using the ▲/▼ buttons switches the function of the COMPONENT (Y, C ) port. COMPONENT SCART RGB When the SCART RGB is selected, the COMPONENT (Y, C ) and VIDEO ports will function as a SCART RGB port. A SCART adapter or SCART cable is required for a SCART RGB input to the projector.
Page 45 INPUT Menu INPUT Menu (continued) Item Description Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select one of following ports. QUIT RGB1 RGB2 HDMI (2) Use the ◄/► buttons to turns the frame FRAME LOCK lock function on/off .
Page 46 INPUT Menu INPUT Menu (continued) Item Description The resolution for the RGB1 and RGB2 input signals can be set on this projector. (1) In the INPUT Menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed. (2) In the RESOLUTION menu select the resolution you wish to display using the ▲/▼...
Page 47: Setup Menu
SETUP Menu SETUP Menu From the SETUP Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or the ENTER button on the remote control to execute the item.
Page 48 SETUP Menu SETUP Menu (continued) Item Description Using the ▲/▼ buttons corrects the horizontal keystone distortion. Shrink the right of the image Shrink the left of the image • The adjustable range of this function will vary among inputs. For some input, this function may not work well.
Page 49 SETUP Menu SETUP Menu (continued) Item Description Using the ▲/▼ buttons turns off/on the whisper mode. NORMAL WHISPER WHISPER • When the WHISPER is selected, acoustic noise and screen brightness are reduced. Using the ▲/▼ buttons switches the mode for mirror status. NORMAL H:INVERT V:INVERT...
Page 50: Audio Menu
AUDIO Menu AUDIO Menu From the AUDIO Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item.
Page 51: Screen Menu
SCREEN Menu SCREEN Menu From the SCREEN Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item.
Page 52 SCREEN Menu SCREEN Menu (continued) Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ORIGINAL TURN OFF Feature Screen can be registered by the MyScreen item MyScreen ORIGINAL Screen preset as the standard screen.
Page 53 SCREEN Menu SCREEN Menu (continued) Item Description This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.
Page 54 SCREEN Menu SCREEN Menu (continued) Item Description Using the ▲/▼ buttons turns on/off the message function. TURN ON TURN OFF When the TURN ON is selected, the following message function works. “AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE”...
Page 55 SCREEN Menu SCREEN Menu (continued) Item Description Using ▲/▼ buttons switches the mode for the template screen. The selected template pattern can be displayed when the MY BUTTON allocated TEMPLATE 49). to the TEMPLATE function is pressed ( DOT-LINE4 DOT-LINE3 DOT-LINE2 TEST PATTERN DOT-LINE1...
Page 56: Option Menu
OPTION Menu OPTION Menu From the OPTION Menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item, except for the items LAMP TIME and FILTER TIME.
Page 57 OPTION Menu OPTION Menu (continued) Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO OFF When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector...
Page 58 OPTION Menu OPTION Menu (continued) Item Description This item is to assign one of the following function to MY BUTTON 1 and 2 on the remote control ( Choose 1 or 2 on the MY BUTTON menu using the ◄/► button rst. Then using the ▲/▼...
Page 59 OPTION Menu OPTION Menu (continued) Item Description AUTO ADJUST Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled. FINE FAST DISABLE FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the input signal. •...
Page 60 OPTION Menu OPTION Menu (continued) Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked. TURN ON TURN OFF • Please use to avoid a mischief and touching accidentally. This function does not have any effect on the remote control.
Page 61 OPTION Menu OPTION Menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please contact your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION Menu to select SECURITY and press the ►...
Page 62: Using The Myscreen Password Function
OPTION Menu OPTION Menu (continued) Item Description 1.3 If you have forgotten your PASSWORD 1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD BOX. 1.3-2 While the ENTER PASSWORD BOX is displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 Inquiring Code...
Page 63: Using The Pin Lock Function
OPTION Menu OPTION Menu (continued) Item Description 2.2-4 Move the cursor to the right side of the PASSWORD AGAIN BOX and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. NOTE PASSWORD Pressing the ENTER button on the remote control or INPUT button on the projector will return to...
Page 64 OPTION Menu OPTION Menu (continued) Item Description 3.1-3 Input a 4 part PIN Code using the ▲/▼/◄/►/ RGB and INPUT buttons. The PIN CODE AGAIN BOX will appear. Reenter the same PIN Code. This will PIN BOX complete the PIN Code registration. •...
Page 65: Using The Transition Detector Function
OPTION Menu OPTION Menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.
Page 66: Using The My Text Password Function
OPTION Menu OPTION Menu (continued) Item Description 4.3 Setting the Transition Detector off 4.3-1 Follow the procedure in 4.1-1 to display the Transition Detector on/off menu. 4.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the Transition Detector on/off menu.
Page 67 OPTION Menu OPTION Menu (continued) Item Description 5.2 Displaying the MY TEXT (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY menu and press the ► button to display the MY TEXT MY TEXT DISPLAY on/ DISPLAY on/off menu.
Page 68 OPTION Menu OPTION Menu (continued) Item Description 5.3-3 Turning the MY TEXT PASSWORD off (1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu. (2) Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered ENTER PASSWORD BOX PASSWORD and the screen will return to the (large)
Page 69: Network Menu
NETWORK Menu NETWORK Menu Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions.
Page 70 NETWORK Menu NETWORK Menu (continued) Item Description Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF. ADDRESS • The IP ADDRESS is the number that identies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.
Page 71 NETWORK Menu NETWORK Menu (continued) Item Description (1) Use the▲/▼ buttons on the NETWORK Menu to select the PROJECTOR NAME menu and press the ► button. The PROJECTOR NAME dialog will be displayed. (2) The current PROJECTOR NAME will be displayed on the rst 3 lines. If not yet written, the lines will be blank.
Page 72 NETWORK Menu NETWORK Menu (continued) Item Description Selecting this item displays the MY IMAGE menu. The application software “PJImage” is required to store image(s) into the projector. Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE ( MY IMAGE (Still Image Transfer) Display of the User’s Manual (detailed) - Network Guide) and the ►...
Page 73 NETWORK Menu NETWORK Menu (continued) Item Description Selecting this item displays the NETWORK -INFORMATION- dialog for conrming the network settings. INFORMATION • The PROJECTOR NAME is displayed. • Nothing (blank) is shown in the “PROJECTOR NAME” field until 62). you setup the item ( •...
Page 74: Closed Caption) Menu
C.C. (Closed Caption) Menu C.C. (Closed Caption) Menu The closed caption setting can be changed through C.C. Menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons. • The C.C. (Closed Caption) is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds.
Page 75: Maintenance
Maintenance Maintenance Lamp A lamp has nite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
Page 76: Lamp Warning
Maintenance Lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE ►The projector uses a high-pressure mercury glass lamp. The lamp WARNING can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
Page 77: Air Lter
Maintenance Air ﬁlter Please check and clean the air lter periodically. When the indicators or a message prompts you to clean the air lter, comply with it as soon as possible. The air lter has two kinds of lters inside. Replace the lters when they are damaged or too soiled.
Page 78: Internal Clock Battery
While prying it up, put a  nger lightly on the battery since it may pop out of the holder. OPEN Replace battery with new HITACHI MAXELL, Part No.CR2032 or CR2032H. Slide the battery in under the plastic claw, and push it into the holder until it clicks.
Page 79: Other Care
Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is awed, soiled or fogged, it could cause deterioration of display quality.
Page 80: Troubleshooting
Troubleshooting Troubleshooting Related messages When the unit's power is on, messages such as those shown below may be displayed. When any such message is displayed on the screen, please follow the instructions described below. If the same message is displayed after the remedy, or if a message other than the following appears, please contact your dealer or service company.
Page 81: Regarding The Indicator Lamps
Troubleshooting Regarding the indicator lamps Lighting and ashing of the POWER indicator, the LAMP indicator, and the TEMP indicator have the meanings as described in the table below. Please follow the instructions within the table. If the same indication is displayed after the remedy, or if an indication other than the following is displayed, please contact your dealer or service company.
Page 82 Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator The cooling fan is not operating. Please turn the power off, and allow the projector to Blinking cool down at least 20 minutes. After the projector has Turned sufciently cooled down, please make conrmation Blinking...
Page 83: Phenomena That May Be Easy To Be Mistaken For Machine Defects
Troubleshooting Phenomena that may be easy to be mistaken for machine defects ►Never use the projector if abnormal operations such as smoke, WARNING strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet.
Page 84 Troubleshooting Phenomena that may be easily mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. Correctly connect the audio cables. The MUTE function is working. Restore the sound pressing the MUTE or VOLUME button on the remote control.
Page 85 Troubleshooting Phenomena that may be easily mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Video screen The FREEZE function is working. display freezes. Press the FREEZE button to restore the screen to normal. Color settings are not correctly adjusted. Colors have a 28, 30, Perform picture adjustments by changing the COLOR TEMP,...
Page 86: Warranty And After-Service
Warranty and after-service / Speciﬁcations Warranty and after-service If a problem occurs with the equipment, rst refer to the “Troubleshooting” and run through the suggested checks. If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.
Page 87: Speciﬁcations
Speciﬁcations Specications (continued) [unit: mm]...
Page 88 Projector CP-WUX645N User's Manual (detailed) Network Guide Thank you for purchasing this projector. This projector has the network function that brings you the following main features. Web control The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.
Page 89 Contents Contents Contents ..................2 1. Main functions ................3 1.1 Conguring and controlling via a web browser ........... 3 1.2 MY IMAGE (Still image Transfer) Display ........... 3 2. Equipment connection and network setting......4 2.1 Required equipment preparation ..............4 2.2 Manual network connection setting.............
Page 90: Main Functions
1. Main functions 1. Main functions 1.1 Conﬁguring and controlling via a web browser You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network. Logon the network from the web browser and it offers the menus to congure the network settings, monitor the projector and so on.
Page 91: Equipment Connection And Network Setting
2. Equipment connection and network setting 2. Equipment connection and network setting 2.1 Required equipment preparation The following equipments are required to connect the projector to your PC through the network. PC : 1) equipped with the network feature 2) installed a web browser software ( LAN cable : CAT-5 or greater •...
Page 92: Manual Network Connection Setting
2. Equipment connection and network setting 2.2 Manual network connection setting 2.2.1 Equipments connection Connect the projector and PC with a LAN cable. * Before connecting with an existing network, contact the network administrator. Next, please check the PC setting as explained below. 2.2.2 Network settings This is the explanation of network connection settings for Windows XP and Internet Explorer.
Page 93 2. Equipment connection and network setting 2.2 Manual network connection setting (continued) 5) Open “Local Area Connection Properties” window you use for network device. (Fig. 2.2.2.c) Fig. 2.2.2.c “Local Area Connection Properties” window 6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties” window.
Page 94 2. Equipment connection and network setting 2.2 Manual network connection setting (continued) [About IP address] ■ Setting manually The Network address portion included in the IP address set into your PC should be common with projector’s one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.
Page 95: Internet Option" Setting
2. Equipment connection and network setting 2.2 Manual network connection setting (continued) 2.2.3 “Internet Option” setting 1) Click “Internet Options” in “Network and Internet Connections” window (Fig. 2.2.3.a) to open “Internet Properties” window. (Fig.2.2.3.b) Click Fig. 2.2.3.a “Network and Internet Connections” window Click Fig.
Page 96: Check Connection
2. Equipment connection and network setting 2.2 Manual network connection setting (continued) Fig. 2.2.3.c “Local Area Network (LAN) Settings” window 3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.2.3.c) 2.2.4 Check connection Check PC and projector are connected properly here. If it is not connected, check cable connections and settings are properly or not.
Page 97: Management With Web Browser Software
3. Management with Web browser software 3. Management with Web browser software This projector is equipped with the following network functions by using a web browser software. Conﬁguring and Controlling the Projector via a Web Browser You can change the settings of or control the projector via a network by using a web browser from a PC that is connected to the same network.
Page 98 3. Management with Web browser software 3.1 Conﬁguring and controlling the projector via a web browser You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network. •...
Page 99: ConGuring And Controlling The Projector Via A Web Browser
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) When conguring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator ID and User ID. The following chart describes the differences between Administrator and User IDs.
Page 100: Logon
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.1 Logon Refer to the following for conguring or controlling the projector via a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter “http://192.168.1.10/”...
Page 101: Network Information
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.2 Network Information All screen drawings in this manual are shown when you logon with the Administrator ID. Any functions that are available only for the Administrator will not be shown when you logon 12, 13) with the User ID.
Page 102: Network Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.3 Network Settings Displays and congures network settings. Item Description IP Conguration Congures network settings. Enables DHCP. DHCP ON Disables DHCP. DHCP OFF Congures the IP address when DHCP is disabled.
Page 103: Port Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.4 Port Settings Displays and congures communication port settings. Item Description Network Control Port1 Congures command control port 1 (Port:23). (Port:23) Click [Enable] check box to use port 23. Port open Click [Enable] check box when authentication is required for Authentication...
Page 104: Mail Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.5 Mail Settings Displays and congures e-mail addressing settings. Item Description Click [Enable] check box to use the e-mail function. Congure the conditions for sending e-mail under the Alert Send mail Settings.
Page 105: Alert Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.6 Alert Settings Displays and congures failure & alert settings. Item Description The lamp cover has not been properly xed. Cover Error Fan Error The cooling fan is not operating.
Page 106 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) The Alert Items are shown below. Item Description Congures the time to alert. Alarm Time (Only Lamp Time Alarm and Filter Time Alarm.) Click [Enable] check box to enable SNMP Trap alerts.
Page 107: Schedule Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.7 Schedule Settings Displays and congures schedule settings. Item Description Congures the daily schedule. Daily Congures the Sunday schedule. Sunday Congures the Monday schedule. Monday Congures the Tuesday schedule.
Page 108 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) The schedule settings are shown below. Item Description Click [Enable] check box to enable the schedule. Schedule Congures the month and date. This item appears only when Specic date (No. 1-5) is Date (Month/Day) selected.
Page 109: Date/Time Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.8 Date/Time Settings Displays and congures the date and time settings. Item Description Congures the current date in year/month/day format. Current Date Congures the current time in hour:minute:second format. Current Time Click [ON] check box to enable daylight savings time and set Daylight Savings Time...
Page 110 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) Item Description Congures the time difference. Set the same time difference as the one set on your PC. If unsure, consult your IT Time difference manager.
Page 111: Security Settings
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.9 Security Settings Displays and congures passwords and other security settings. Item Description Congures the Administrator ID and password. Administrator authority Congures the Administrator ID. The length of the text can be up to 32 alphanumeric Administrator ID characters.
Page 112 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) Item Description Congures the Authentication password for the command Network Control control. Congures the Authentication password. The length of the Authentication text can be up to 32 alphanumeric characters. Password Re-enter Reenter the above password for verication.
Page 113: Projector Control
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.10 Projector Control The items shown in the table below can be performed using the Projector Control menu. Select an item using the up and down arrow keys on the PC.
Page 114 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) Item Description Picture Adjusts the brightness setting. Brightness Adjusts the contrast setting. Contrast Selects the gamma setting. Gamma Selects the color temperature setting. Color Temp Adjusts the color setting.
Page 115 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) Item Description Setup Performs the automatic keystone distortion setting. Auto Keystone Execute Adjusts the vertical keystone distortion setting. Keystone V Adjusts the horizontal keystone distortion setting. Keystone H Adjusts the shape of the projected image in each of the Perfect Fit...
Page 116 3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) Item Description Screen Selects the language for the OSD. Language Adjusts the vertical Menu position. Menu Position V Adjusts the horizontal Menu position. Menu Position H Selects the Blank mode.
Page 117: Projector Status
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.11 Projector Status Displays the current projector status. Item Description Displays the current error status Error Status Displays the usage time for the current lamp. Lamp Time Displays the usage time for the current lter.
Page 118: Network Restart
3. Management with Web browser software 3.1 Conguring and controlling the projector via a web browser (continued) 3.1.12 Network Restart Restarts the projector’s network connection. Item Description Restarts the projector’s network connection in order to Restart activate new conguration settings. •...
Page 119: E-Mail Alerts
3. Management with Web browser software 3.2 E-mail Alerts The projector can automatically send an alert message to the specied e-mail addresses when the projector detects a certain condition that is requiring maintenance or detected an error. • Up to ve e-mail addresses can be specied. NOTE •...
Page 120 3. Management with Web browser software 3.2 E-mail Alerts (continued) 8) Click [Alert Settings] on the main menu to congure the E-mail Alerts settings. 9) Select and congure each alert item. Refer to the item 3.1.6 Alert Settings ( for further information. 10) Click [Apply] button to save the settings.
Page 121: Projector Management Using Snmp
3. Management with Web browser software 3.3 Projector Management using SNMP The SNMP (Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network. The SNMP management software will be required on the computer to use this function.
Page 122: Event Scheduling
3. Management with Web browser software 3.4 Event Scheduling The scheduling function enables to setup scheduled events including power on / power off. It enables to be “self-management” projector. • You can schedule the following control events: Power ON/OFF, Input NOTE Source and Transferred Image Display.
Page 123 3. Management with Web browser software 3.4 Event Scheduling (continued) Schedule Settings ( Schedule settings can be congured from a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter “http://192.168.1.10/” into the address bar of the web browser. 2) Enter the Administrator ID and password and click [Logon].
Page 124 3. Management with Web browser software 3.4 Event Scheduling (continued) Date/Time Settings ( The Date/Time setting can be adjusted via a web browser. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter “http://192.168.1.10/” into the address bar of the web browser. Enter the Administrator ID and Password and click [Logon].
Page 125: My Image (Still Image Transfer) Display
MY IMAGE transmission requires an exclusive application for your PC. You can download it from the web site (http://hitachi.us/digitalmedia or http://www. hitachidigitalmedia.com). Refer to the manual for the application for instructions. To display the transferred image, select the MY IMAGE item in the NETWORK Menu.
Page 126 3. Management with Web browser software 3.5 MY IMAGE (Still Image Transfer) Display (continued) Congure the following items from a web browser when MY IMAGE is used. Example: If the IP address of the projector is set to 192.168.1.10: 1) Enter "http://192.168.1.10/" into the address bar of the web browser. 2) Enter the Administrator ID and password and click [Logon].
Page 127: Command Control Via The Network
3. Management with Web browser software 3.6 Command Control via the Network You can congure and control the projector via the network using RS-232C commands. Communication Port The following two ports are assigned for the command control. TCP #23 TCP #9715 •...
Page 128 3. Management with Web browser software 3.6 Command Control via the Network (continued) When the authentication setting is enabled, the following settings are required. 7) Click [Security Settings] on the main menu. 8) Click [Network Control] and enter the desired authentication password. * See NOTE.
Page 129 3. Management with Web browser software 3.6 Command Control via the Network (continued) Command Format Command formats differ among the different communication ports. ● TCP #23 You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. However, the following reply will be sent back in the event of authentication failure when authentication is enabled.
Page 130 3. Management with Web browser software 3.6 Command Control via the Network (continued) Reply Data format The connection ID (the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data. <ACK reply>...
Page 131 3. Management with Web browser software 3.6 Command Control via the Network (continued) Automatic Connection Break The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established. Authentication The projector does not accept commands without authentication success when authentication is enabled.
Page 132 Projector CP-WUX645N User's Manual – Operating Guide Technical Example of computer signal Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode 720 x 400 37.9 85.0 VESA TEXT 640 x 480 31.5 59.9 VESA VGA (60Hz) 640 x 480 37.9 72.8...
Page 133 Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu. Back porch (B) Front porch (D) Back porch (b)
Page 134 Connection to the ports Connection to the ports RGB1 HDMI VIDEO AUDIO IN1 RGB2 AUDIO IN2 S-VIDEO AUDIO OUT REMOTE CONTROL AUDIO IN3 AUDIO IN4 CONTROL RGB 1, RGB OUT D-sub 15pin mini shrink jack • Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω...
Page 135: Component Video
Connection to the ports (continued) RGB1 HDMI VIDEO AUDIO IN1 RGB2 AUDIO IN2 S-VIDEO AUDIO OUT REMOTE CONTROL AUDIO IN3 AUDIO IN4 CONTROL COMPONENT VIDEO RCA jack x3 • System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60,1080p@50/60 Port Signal Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite sync Component video C , 0.7±0.1Vp-p, 75Ω...
Page 136 Connection to the ports (continued) RGB1 HDMI VIDEO AUDIO IN1 RGB2 AUDIO IN2 S-VIDEO AUDIO OUT REMOTE CONTROL AUDIO IN3 AUDIO IN4 CONTROL AUDIO IN 1, AUDIO IN 2 Ø3.5 stereo mini jack • 500 mVrms 47kΩ terminator AUDIO IN 3 L, AUDIO IN 4 RCA jack x2 •...
Page 137 Connection to the ports (continued) RGB1 HDMI VIDEO AUDIO IN1 RGB2 AUDIO IN2 AUDIO OUT S-VIDEO REMOTE CONTROL AUDIO IN3 AUDIO IN4 CONTROL USB B type jack Signal 1 +5V 2 - Data 3 + Data 4 Ground RJ-45 jack Signal Signal Signal...
Page 138: Communications Setting
RS-232C Communication RS-232C Communication CONTROL port RS-232C cable (Cross) RS-232C port of the projector of the computer - (1) (1) CD RD (2) (2) RD TD (3) (3) TD - (4) (4) DTR GND (5) (5) GND - (6) (6) DSR RTS (7) (7) RTS CTS (8)
Page 139 RS-232C Communication (continued) Requesting projector status (Get command) (1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes)+‘00H’ +‘00H’) from the computer to the projector. (2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer. Changing the projector settings (Set command) (1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from the computer to the projector.
Page 140 Command Control via the Network Command Control via the Network Communication Port The following two ports are assigned for the command control. TCP #23 TCP #9715 Command Control Settings Congure the following items form a web browser when command control is used. Port Settings Click the [Enable] check box to open [Network Port open...
Page 141 Command Control via the Network (continued) Command Format [TCP #23] 1. Protocol Consist of header (7 bytes) + command data (6 bytes) 2. Header BE + EF + 03 + 06 + 00 + CRC_low + CRC_high CRC_low: Lower byte of CRC ag for command data CRC_high: Upper byte of CRC ag for command data 3.
Page 142: Protocol
Command Control via the Network (continued) Decreasing the projector setting value (Decrement command) (1) The PC sends the following decrement code to the projector. Header + Command data (‘05H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’) (2) The projector decreases the setting value on the above setting code. (3) The projector returns the response code ‘06H’...
Page 143 Command Control via the Network (continued) 7. Reply Data The connection ID (the data is same as the connection ID data on the sending data format) is attached to the Network control commands reply data. ACK reply: ‘06H’ + ‘xxH’ NAK reply: ‘15H’...
Page 144 RS-232C Communication / Network command table RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code Power TURN OFF BE EF 06 00 2A D3 01 00 00 60 00 00 TURN ON BE EF 06 00 BA D2 01 00...
Page 145 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code GAMMA #1 DEFAULT BE EF 06 00 07 E9 01 00 A1 30 20 00 #2 DEFAULT BE EF 06 00 97 E8 01 00 A1 30 21 00 #3 DEFAULT...
Page 146 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code COLOR TEMP #1 HIGH BE EF 06 00 0B F5 01 00 B0 30 03 00 #2 MID BE EF 06 00 9B F4 01 00 B0 30 02 00...
Page 147 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code MY MEMORY Load BE EF 06 00 0E D7 01 00 14 20 00 00 BE EF 06 00 9E D6 01 00 14 20 01 00 BE EF 06 00...
Page 148: Set
RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code COLOR SPACE AUTO BE EF 06 00 0E 72 01 00 04 22 00 00 BE EF 06 00 9E 73 01 00 04 22 01 00 SMPTE240 BE EF...
Page 149: Increment
RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code AUTO KEYSTONE V Execute BE EF 06 00 E5 D1 06 00 0D 20 00 00 EXECUTE AUTO KEYSTONE V TURN OFF BE EF 06 00 EA D1 01 00...
Page 150 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code ACTIVE IRIS TURN OFF BE EF 06 00 0B 22 01 00 04 33 00 00 THEATER BE EF 06 00 CB 2F 01 00 04 33 10 00 PRESENTATION...
Page 151 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code MONITOR OUT - RGB1 BE EF 06 00 2A F7 01 00 BF 20 00 00 STANDBY RGB2 BE EF 06 00 EA F5 01 00 BF 20 04 00...
Page 152 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code BASS - RGB1 BE EF 06 00 0D FB 02 00 80 20 00 00 Increment BE EF 06 00 6B FB 04 00 80 20 00 00 Decrement...
Page 153 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code AUDIO - COMPONENT Set TURN OFF BE EF 06 00 32 DD 01 00 35 20 00 00 AUDIO1 BE EF 06 00 A2 DC 01 00 35 20 01 00...
Page 154 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code LANGUAGE ENGLISH BE EF 06 00 F7 D3 01 00 05 30 00 00 FRANCAIS BE EF 06 00 67 D2 01 00 05 30 01 00 DEUTSCH BE EF...
Page 155 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code TEMPLATE TEST PATTERN BE EF 06 00 43 D9 01 00 22 30 00 00 DOT-LINE1 BE EF 06 00 D3 D8 01 00 22 30 01 00 DOT-LINE2...
Page 156 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code MY BUTTON-1 RGB1 BE EF 06 00 3A 33 01 00 00 36 00 00 RGB2 BE EF 06 00 FA 31 01 00 00 36 04 00 HDMI...
Page 157 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting Code CLOSED CAPTION TURN OFF BE EF 06 00 FA 62 01 00 00 37 00 00 DISPLAY TURN ON BE EF 06 00 6A 63 01 00 00 37 01 00...
Page 158 Projector CP-WUX645N User's Manual (concise) Thank you for purchasing this projector. WARNING ►Before using this product, be sure to read all manuals for this product. See “Using the 13 ) to read the manuals in the CD. After reading them, store them in a CD manual”...
Page 159: First Of All
First of all Entries and graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Please know their meanings beforehand, and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.
Page 160: Arrangement
Arrangement Please arrange the projector and the screen. Install the projector in a stable, cool and airy place, keeping a space of 30 cm or more between the sides of the projector and other objects such as walls. Avoid the projector from a hot, humid, dusty, or smoky place.
Page 161: Connecting Your Devices
Connecting your devices Before connecting devices, please read the manuals for all the devices that you want to connect with this projector, to make sure that the connection is proper and prepare the connectors needed. And connect them properly according to the manuals. AUDIO OUT RGB OUT AUDIO OUT...
Page 162: Connecting Power Supply
Connecting power supply 1. Connect the connector of the power cord to the AC IN (AC inlet) of the projector. 2. Firmly plug the power cor 's plug into the outlet. Connector of the AC IN power cord to the outlet WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in re and/or electrical shock.
Page 163: Adjusting The Projector's Elevator
Adjusting the projector's elevator Use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating 10° the front side of the projector within 10 degrees. This projector has 2 elevator feet and 2 elevator knobs.
Page 164: Putting Batteries
1. Slide back and remove the battery cover. 2. Put the two AA batteries ( HITACHI MAXELL, Part No.LR6 or R6P ) into the holder, according to the polarity markings ( + ) and ( - ) on the holder.
Page 165: Displaying The Picture
ASPECT Displaying the picture INPUT button button 1. Make sure that the signal source is sending the signal to the LASER INDICATOR projector. STANDBY/ON VIDEO MY SOURCE/ DOC.CAMERA SEARCH 2. Use the VOLUME +/- buttons to adjust the volume. To have BLANK LASER the projector silent, press the MUTE button on the remote...
Page 166: Lamp
Lamp A lamp has nite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
Page 167 Lamp (continued) Lamp warning HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
Page 168 Air ﬁlter Please check and clean the air lter periodically. When the indicators or a message prompts you to clean the air lter, comply with it as soon as possible. The air lter has two kinds of lters inside. Replace the lters when they are damaged or too soiled. To prepare the new lters, make contact with your dealer and tell the following type number.
Page 169: Internal Clock Battery
While prying it up, put a  nger lightly on the battery since it may pop out of the holder. 5. Replace battery with new HITACHI MAXELL , Part No. CR2032 or CR2032H . Slide the battery in under the plastic claw, and push it into the holder until it clicks.
Page 170: Using The Cd Manual
Using the CD manual The other manuals for this product are written into the included CD-ROM titled “ User’s Manual (detailed) ”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. ®...
Page 171: Regulatory Notices
Regulatory notices About Electro-Magnetic Interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.
Page 172 Regulatory notices (continued) About Waste Electrical and Electronic Equipment The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.
Page 173: SpeciCations
Speciﬁcations Item Specications Product name Liquid crystal projector Liquid Crystal Panel 2,304,000 pixels (1920 horizontal x 1200 vertical) Lamp 275 W UHB Audio output 4 W x 2 AC 100-120 V / 5.0 A, AC 220-240 V / 2.1 A Power supply Power consumption 460 W...
Page 174: Warranty And After-Service
If this does not resolve the problem, please consult your dealer or service company. They will tell you what warranty condition is applied. Please check the following web address where you may nd the latest information for this projector. http://www.hitachi.us/digitalmedia http://www.hitachidigitalmedia.com NOTE •...
Page 175 NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. REMARQUE •...
Page 176 Tel: +60 -3-8926-4168 Tel: 04 37 42 84 30 Fax: +60 -3-8926-3013 ► http://www.hitachiconsumer.com.my Email: france.consommateur@hitachi-eu.com Hitachi Europe GmbH Hitachi Home Electronics Asia, (S) Pte Ltd. Am Seestern 18 438A Alexandra Road #01-01/02/03 40547 Düsseldorf GERMANY Alexandra Technopark, 119967 SINGAPORE Tel: 211-5283-808...

Hitachi CP-WUX645N Operating Manual

Table of Contents

Table of Contents

1 Main Functions

2 Equipment Connection and Network Setting

3 Management with Web Browser Software

Command Format [Tcp #23]

User's Manual (Concise)

Quick Links

Chapters

Related Manuals for Hitachi CP-WUX645N

Summary of Contents for Hitachi CP-WUX645N

Table of Contents
