Summary of Contents for Hitachi CP-WU13K
-

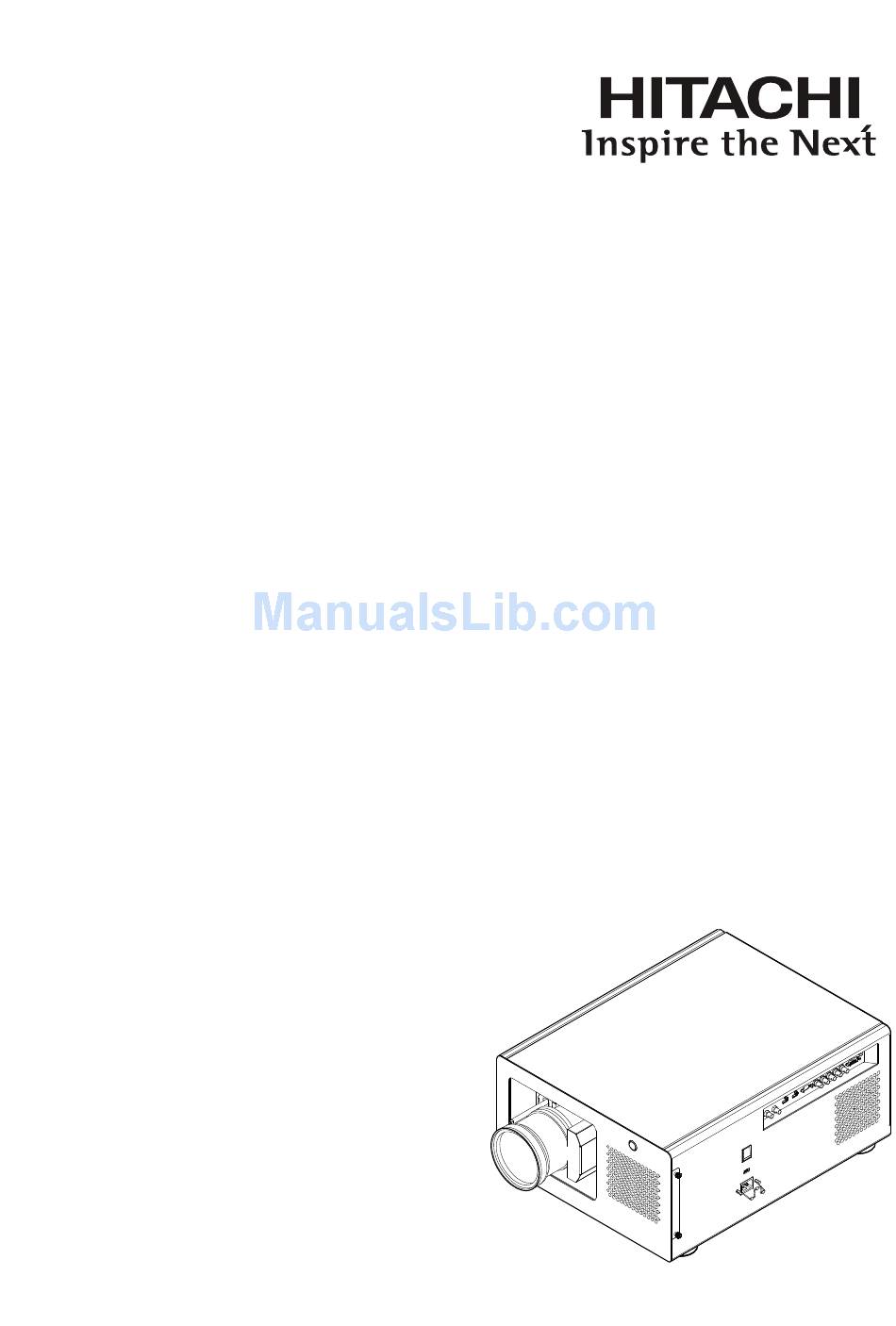

Page 1: User Manual
Projector CP-WU13K User Manual Thank you for purchasing this product. Please read this manual before you operate your projector. Save it for future reference. -
Page 2: Table Of Contents
INDEX Warning, Notices and Safety Instructions 4 Installation the projector. 1. Orient the projector towards the screen Notice 2. Connect the power cord to the projector Description pertaining to FCC Rules Part 15 3. Connect the projector to your PC and flip the switch About Waste Electrical and Electronic Equipment to “I”... - Page 3 OSD Description Trigger1 ~2 Auto Source INPUT Language Input Selection SERVICE Input Configuration Service Input Locking Lamp Hour Reset Auto Power Off Blue Only Auto Power ON Factory Reset No Signal Auto Image Adjust IMAGE Contrast Lamp and Filter Maintenance Brightness Lamp replacement Sharpness...
-
Page 4: Description Pertaining To Fcc Rules Part 15
Warning, Notices and Safety Instructions Warning, Notices and Safety Instructions Notice Please write down your projector model number and serial number and keep the information for maintenance purposes in the future. Should the equipment be lost or stolen, the information could also be used for the police report. -
Page 5: About Waste Electrical And Electronic Equipment
Direct or indirect hit of a laser beam on to the projector lens can severely damage the Digital Mirror Devices (DMD™). Sun light Warning Avoid using the CP-WU13K in direct sun light. Sun light on the projector lens can severely damage the Digital Mirror Devices (DMD™). Never look into the projector light source directly This equipment contains a high brightness light source and a portion of the light emitted by the projector is ultraviolet light. -
Page 6: Do Not Turn Off The Projector By Unplugging The Power Cord
Warning, Notices and Safety Instructions The lightning flash with an arrowhead within a triangle CAUTION is intended to tell the user that inside this product may cause risk of electrical shock to persons. RISK OF ELECTRIC SHOCK DO NOT OPEN The exclamation point within a triangle is intended to tell CAUTION / TO REDUCE THE RISK OF ELECTRIC SHOCK the user that important operating and/or servicing instructions... -
Page 7: Carrying The Projector
Warning, Notices and Safety Instructions Ventilation The projector case is designed with slots and openings to remove the heat inside the projector so that it will not overheat and damage the components. Be sure to operate the projector in an environment with ideal ventilation and don't operate it on a sofa, rug or other closed-in environments that could obstruct ventilation. -
Page 8: Changing Parts
Warning, Notices and Safety Instructions Changing parts Should any part of the projector be damaged, check with your servicing personnel that only manufacturer certified parts were used for replacement. Used of non-certified parts may result in damages to the projector or hazards such as fire or electric shock. After changing parts, be sure to remind the servicing personnel to perform safety inspections to ensure that the projector operates normally. -
Page 9: Do Not Tilt The Projector More Than 10 Degrees
Warning, Notices and Safety Instructions Do not tilt the projector more than 10 degrees. The maximum tilt angle for the projector is 10 degrees. When the projector is tilted more than 10 degrees, it will shorten the life of the projector lamp and may lead to other unpredictable damages. -
Page 10: Name And Quantity Of Toxic/Hazardous Substances/Elements Contained In The Product
Warning, Notices and Safety Instructions Name and quantity of toxic/hazardous substances/elements contained in the product... -
Page 11: Projector Parts And Functions
Projector parts and functions Projector parts and functions Front view Ventilation slot The hot air generated inside the projector is dispersed through the Infrared receiver ventilation slot. Make sure the ventilation slot is Lens free from obstruction. Ventilation inlet Adjustable foot The internal cooling fan draws cool air from the ventilation inlet into the Adjust the height and angle of the... -
Page 12: Wired Remote
Projector parts and functions COMPONENT 1 WIRED REMOTE Standard and high definition (480i/480p/ Receives input signal from compatible Niles or Xantech IR 576i/576p/720p/1080i/1080p) component input, repeater systems. connects to DVD/HD-DVD/BD player, HD set- 12V TRIGGER top-box or other SD/HD input source. (3.5-mm, mini phone jack) Offers 12 (+/- 1.5) V of output for 350mA monitor relay SYNC IN... -
Page 13: Bottom View
Projector parts and functions Bottom view Adjustable foot Adjust the height and angle of the projector with the adjustable foot Mounting bracket screw hole These screw holes are used to mount the projector to its designated mounting bracket using 3 M8x15 screws and 3 M8x40 bolts. -
Page 14: Range Of Effective Remote Control Signal Reception
Projector parts and functions Range of effective remote control signal reception The diagram below illustrates the range of effective remote control signal reception (Unused new battery). 40° 40° Note: Avoid placing the remote control at places of high temperature or humidity as it could cause the remote control to malfunction. -
Page 15: Installation Of The Projector
Installation of the Projector Installation the projector. 1. Orient the projector towards the screen Screen COMPONENT 1 12V TRIGGER 10/100 BASE-T RS-232 WIRED REMOTE SYNC IN 350mA 2. Connect the power cord to the projector AC SWITCH Please select the Desk Top or Notebook correct input voltage B/Pb... -
Page 16: Adjusting The Projector's Angle
Installation of the Projector 5. Adjusting the projector's angle a. Please use the adjustable feet to change the angle of the projector in order to achieve the most suitable angle for projection on the screen. b. Adjusting the lens by horizontal and vertical lens shift Method 1: Press the ENTER button on the remote control to access Lens Control adjustment... -
Page 17: Correcting Keystoning Caused By Projection Angle
Installation of the Projector Press the MENU button on the remote control and choose Alignment Lens Control to activate the Lens Control OSD, press enter to go through "Zoom/Focus", "Lens Shift", "Zoom/Focus with Grid test pattern", "Lens Shift with Grid test pattern" OSD Cyclically. Stop at either "Zoom/Focus"... -
Page 18: Throw Distance
Installation of the Projector Throw distance Throw Distance (TD) = Screen Width (W) x Throw Ratio (TR) Coupled with the available projection lenses, the projector offers the following throw ratios: • FL-K01(0.67:1) • FL-K02(1.1:1) Note: • SL-K03(1.4 - 1.9:1) Projection lenses are optional •... -
Page 19: Frontal Projection - Ceiling Mode
Installation of the Projector Frontal projection - ceiling mode Rear projection - ceiling installation Advantage: does not occupy floor space does not draw attention to it. Advantage: the projector is completely hidden Eliminates the possibility that from plain view this setup usually someone would accidentally move offers better reduction of ambient the projector. -
Page 20: Horizontal And Vertical Lens Shift
Installation of the Projector Horizontal and vertical lens shift In addition to using the adjustable feet to adjust projection angle, you can also use the Lens Shift function to adjust the projected image. Moving the lens vertically The distance of vertical lens movement is +100% , -50% of half the screen height in both directions. For instance, if you are using a 80"... -
Page 21: Connecting The Projector To Other Devices
Installation of the Projector Connecting the projector to other devices HDMI / DVI connection Signals from image source offer the best projection image quality when sent through HDMI. Therefore, try to use input devices with HDMI output as the source of image. 12V TRIGGER COMPONENT 1 10/100 BASE-T... -
Page 22: Rgb Connection
Installation of the Projector RGB connection Connect your PC or other devices with RGB output to the RGB input connectors on the projector to be used as the source of image input. 12V TRIGGER COMPONENT 1 10/100 BASE-T RS-232 WIRED REMOTE SYNC IN 350mA ... -
Page 23: Component Connection
Installation of the Projector COMPONENT connection Take the 3/5 cabled RGB component video connectors from the source equipment to the projector’s COMPONENT1 or COMPONENT2 jacks. 12V TRIGGER COMPONENT 1 10/100 BASE-T RS-232 WIRED REMOTE SYNC IN SYNC OUT 350mA B/Pb R/Pr STEREO DVI HDMI ... -
Page 24: Turning On The Projector
Installation of the Projector 3D mode There are few ways to go to the 3D mode • OSD menu: Go to Main Menu “Input > Input Selection”, and select STEREO DVI • Remote control: Press hot key “5” to go to STEREO DVI directly •... -
Page 25: Adjusting Screen Orientation
Installation of the Projector Adjusting screen orientation By default, the projector is configured for “frontal projection - desktop installation”. If you choose to install your projector in other setups, be sure to adjust the screen orientation to achieve the correct projection mode. -
Page 26: Rear Projection - Desktop Installation
Installation of the Projector Rear projection - desktop installation Press MENU ALIGNMENT Rear Projection and choose ON; the projector is now configured for “rear projection - desktop installation”. Correct Picture Lotus Rear projection - ceiling mode Press MENU ... -
Page 27: Remote Control
REMOTE CONTROL Remote control This button is used to turn on the projector. This button is used to turn off the projector. These buttons on the remote control are the hotkeys INPUT for different image source. By factory default, these are: 1 = HDMI 1 2 = RGB D-15... - Page 28 REMOTE CONTROL AUTO IMAGE This button is used to Resync the image; when the image signal becomes unstable or image quality deteriorates simply press this button and the projector will automatically adjust the screen dimension, phase, timing and so forth.(The adjustments also apply to PIP input).
-
Page 29: Osd Menu Description
OSD Menu description OSD Menu Tree Zoom CROP ZOOM HDMI1 HDMI2 HDMI1 RGB D-15 HDMI2 Main Select YUV1 RGB D-15 RGBHV/YUV2 Input Selection YUV1 SDI/HDSDI/3G RGBHV/YUV2 SDI/HDSDI/3G HDMI1 STEREO DVI LAYOUT HDMI2 RGB D-15 Auto PIP Select YUV1 YUV HD RGBHV/YUV2 Input Configuration YUV STD... - Page 30 OSD Menu description Top Left Rear Projection Top Right Menu Position Bottom Left Ceiling Mode Bottom Right Center Zoom/Focus Lens Control Shift V Start Up Logo Shift H Start Up Chime Dynamic Contrast Button 1 HDMI1 Gamma HDMI2 2.35 2.5 Dicom sim Button 2 RGB D-15 On (1~12 Pattern)
-
Page 31: Osd Description
OSD Menu description OSD Description Press the MENU button on the remote control or on the back of the projector to bring up the OSD Menu. You will see seven functional menus (Input, Image, Layout, Lamp, Alignment, Control and Service). Press ◄ or ► to select the desired sub menu. -
Page 32: Input Locking
OSD Menu description Component • For SDTV and EDTV resolutions, uses the YUV STD. For all other resolutions YUV HD is used. Input Locking Use this function to specify the frequency of the image input signal. You can let the projector determine the optimal projection frequency or force the projector to project image at the frequency you specify. -
Page 33: Image
OSD Menu description IMAGE Contrast Use to adjust the contrast of the projected image. You can connect the projector to an external image source to display an image resembling the one shown below for adjustment. It is recommended that you adjust the projected image according to the results shown below so that the brightness of the spectrum remains constant throughout and achieve maximum contrast between black and white. -
Page 34: Brightness
OSD Menu description Brightness Use to adjust the brightness of the projected image. You can connect the projector to an external image source to display an image resembling the one shown (PLUGE, Picture Line-Up Generation Equipment) for adjustment. Although there are numerous versions of PLUGE image, they are typically comprised of blocks of black, white and gray on top of a black background. -
Page 35: Noise Reduction
OSD Menu description Sharpness The adjustment of sharpness primarily changes the value of high frequency detail. You can connect the projector to an external image source to display an image resembling the one shown below to adjust the image sharpness. The following image illustrates the results of direct sharpness adjustment using a random image: Original image (Value = 100) Enhanced sharpness ... -
Page 36: Color Temperature
OSD Menu description Color Temperature You can choose from 3200K, 5400K, 6500K, 9300K and Native. Color temperature refers to the change in light color under different energies that is perceived by the naked eye. The change of color temperature from low to high for visible light goes from orange red white ... -
Page 37: Aspect Ratio
OSD Menu description Press to adjust the offset of red in dark scales. Green Offset • Press to adjust the offset of green in dark scales. Blue Offset • Press to adjust the offset of blue in dark scales. White Balance •... -
Page 38: Timings
OSD Menu description Native input Output aspect ratio Output aspect ratio Output aspect ratio 16:9 Output aspect ratio Output aspect ratio Output aspect ratio Output aspect ratio 1.88 2.35 Letterbox Native Cropped portion of the image Note : that when used for commercial purposes, including: projection of image in movie theatres, hotels, cafeteria and other public venues, compression or extension of image achieved through the change of aspect ratio may constitute copyright infringement to the rightful owner of the image. -
Page 39: Auto Image
OSD Menu description H Start • Use to adjust the projected image’s horizontal position. If the projected image is not at the center of the screen (i.e. shifted to right or left) and ends up being cropped, use this function to adjust the image’s horizontal position. The following image is an example of test image from an external signal source: Native picture Skewed left... -
Page 40: Layout
OSD Menu description LAYOUT Zoom Due to the fact that some consumers may still be using older television systems, some TV programs may not display the edges of the image. Use this function to hide the image edge by choosing one of the following three options: •... -
Page 41: Main Select
OSD Menu description Main Select Sub picture Main picture When you want to project PIP image, use this function to specify the image source for the PIP image. This function is identical to Input Selection; for more information. PIP Select Use this function to select the source for the sub window. -
Page 42: Lamp
OSD Menu description LAMP This chapter covers information on the projector lamp. Mode • When set to Eco mode, the wattage of the lamp will be at 360W. If the surrounding environment is sufficiently dark or if you do not require intense brightness, you can set the lamp to Eco mode to prolong its usage life. -
Page 43: High Altitude Mode
OSD Menu description High Altitude Mode Use this function to control the projector's cooling fan. You can set it to Off or On. The default setting is Off. Under normal circumstances, the projector will operate normally with this function set to Off. By default, the projector will detect the temperature of the surrounding environment to regulate the speed of the cooling fan. -
Page 44: Rear Projection
OSD Menu description ALIGNMENT Rear Projection The default setting is Off. When you have set up the projector for rear projection, please set it to ON. For more information on different modes of projection, refer to " Page 18 : Modes of installation ". Ceiling Mode The default setting is Off. -
Page 45: Internal Patterns
OSD Menu description Gamma Different Gamma settings will affect viewers' perception of the image. Generally speaking, for images that are darker, it is recommended that Gamma be set higher to yield better image quality in darker regions by sacrificing details in brighter areas. In contrast, when projecting brighter images, you can set the Gamma lower to give up details in the darker areas to make the brighter areas (i.e. -
Page 46: Warp
OSD Menu description Warp The function provides distortion correction on projected images. Horizontal Keystone Press ▲ ▼ to correct horizontal keystone due to projection angle. Please refer to " Page 16 : 7.Correcting keystoning caused by projection angle ". Verticall Keystone Press ▲... -
Page 47: Blanking
OSD Menu description Top Right Corner Press ◄►to correct the right corner image bias. → Press ◄► to correct top right corner image bias to correct image. Bottom Left Corner Press ◄►to correct the bottom left image bias. → Press ◄► to correct bottom left corner image bias to correct image. -
Page 48: Edge Blend
OSD Menu description Edge blend The function of Edge blend is applied in multiple projectors that are projecting at the same screen simultaneously to adjust the uniformity of the images on the screen. Status • Press ENTER to select ON or OFF. The function must be set to ON in order to enable the function of Edge blend. - Page 49 OSD Menu description Adjust Lines • When the function is ON, there will be adjust lines on the image in order to easily adjust multiple images. Press ▼ ▲◄► on the remote control to adjust the position of the lines on the image.
-
Page 50: Eco Network Power
OSD Menu description CONTROL IR Address Use this function to configure the projector’s IR code receive commands from the remote control. The default value is 1.If you have other equipment in your home that could pick up the command from the projector’s remote control, it is recommended that you set the remote control code to 2. -
Page 51: Menu Position
Bottom Left Bottom Right Start Up Logo You can use this function to have the projector display the HITACHI logo in the start up screen. Set to display the HITACHI logo during start up and to display a blank image. -
Page 52: Auto Source
OSD Menu description Trigger1 ~2 The projector comes with two sets of Trigger output. You can configure two different devices connected to the projector via the trigger ports to be automatically turned on when the projector is on. There will be a 2-3 second delay prior to activation to prevent operation of this function when the user is choosing the desired aspect ratio. -
Page 53: Lamp Hour Reset
OSD Menu description SERVICE XXXXXXX Service The functions covered in this unit relate to the display of some basic information about the projector. *Memory of the custom timing files will be erased in the Factory Reset operation.* • Model: the designated model number of the projector. •... -
Page 54: Lamp And Filter Maintenance
Lamp and filter maintenance Lamp and Filter 5. Grasp the metal rod on the lamp cover and pull the lamp out. Maintenance Lamp replacement From the OSD Menu, you can go to " Page 43 : Lamp1 Run Time ". to check how long a lamp has been used. -
Page 55: Replace The Filter
Lamp and filter maintenance Replace the filter Make sure to replace the filter when it is required to keep the air intake clear of dust, and prevent possible over temperature issue of the projector due to the clog of filter. To clean the filter at the ventilation slots, refer to the following illustration: 1. - Page 56 Lamp and filter maintenance 4. Insert new filter. Black side Black side 5. Tighten the screws on the filter cover.
-
Page 57: Simple Troubleshooting And Definition Of The Led Indicators
Simple troubleshooting and definition of the LED indicators Simple troubleshooting and definition of the LED indicators The following table offers a list of common problems with projectors and how to troubleshoot. If the recommended solutions fail to resolve your problem, contact your local dealer to arrange for servicing; do not attempt to service the projector by yourself. Problem Possible cause Solution... -
Page 58: Led Status
Simple troubleshooting and definition of the LED indicators The LED indicator on the The lamp or the cooling fan could be faulty. Refer to the definition of " Page 58 : LED projector’s rear panel is blinking STATUS ". in red 1. -
Page 59: Warning
Simple troubleshooting and definition of the LED indicators Warning Flashes once in green and red: The lamp is approaching the Replacement Life Cycle. It should be replaced with a new lamp. Note; Replacement Life Cycle varies depending upon selected operation mode, environmental conditions and usage. -
Page 60: Projector Specifications
Projector specifications Specifications Description Specifications Resolution 1920 × 1200 (Native) Micro display 3 × DLP 0.96" DMD Contrast 2000:1 (Typical) Luminance uniformity ≥ 85% Lamp 2 × 465W UHB FL-K01(0.67:1) FL-K02(1.1:1) SL-K03(1.4 - 1.9:1) Projection lens - projection ratio ML-K04(1.9 - 2.6:1) LL-K05(2.6 - 4.2:1) UL-K06(4.2 - 7.0:1) 1 ×... -
Page 61: Supported Signal Input Modes
Projector specifications Supported Signal Input Modes HDMI Frame Signal Resolution HD/SDI/3G Rate Format 640x480 59.94 640x480 74.99 640x480 800x600 60.32 800x600 800x600 85.06 848x480 47.95 848x480 59.94 1024*768 1024*768 1024*768 1280x720 47.95 1280x1024 60.02 1280x1024 75.02 1280x1024 85.02 1600x1200 1920x1080 47.95 1680x1050 59.94... -
Page 62: Sdi Formats
Projector specifications SDI formats Color Sampling Timing SDI Link mode Signal Standards Bit Depth Encode Structure NTSC SMPTE 259M-C 270Mbps SD YCbCr 4:2:2 SMPTE 259M-C 270Mbps SD YCbCr 4:2:2 1035i60 SMPTE 292M 1.5Gbps HD YCbCr 4:2:2 1080i59 SMPTE 292M 1.5Gbps HD YCbCr 4:2:2 1080i60... -
Page 63: Dimensions
Projector specifications Dimensions 500mm... -
Page 64: Communication Settings
Communication settings Communication settings RS-232 Communication When the projector connects to the computer by RS-232 communication, the projector can be controlled with RS-232 commands from the computer. For details of RS-232 commands, refer to RS- 232 Communication command table. Connection 1. -
Page 65: Command Format
Communication settings 1. Protocol 19200bps,8N1 2. Command format ("h" shows hexadecimal) Byte Number Command Header Data Header Data Setting Action Type code size flag code Packet Action <SET>Change setting to desired value [(cL)(cH)] (aL) (aH) 01h 00h (bL) (bH) (cL) (cH) by [(bL)(bH)]. -
Page 66: Response Code / Error Code
Communication settings 3. Response code / Error code ("h" shows hexadecimal) 4. ACK reply : 06h When the projector receives the Set, Increment, Decrement or Execute , command correctly, the projector changes the setting data for the specified , item by [Type], and it returns the code. 5. -
Page 67: Rs-232 Communication Command Table
Communication settings RS-232 Communication command table Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code INPUT Input Selection HDMI 1 BE EF 06 00 0E D2 01 00 00 20 03 00... - Page 68 Communication settings RS-232 Communication command table (continue) Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code IMAGE Aspect Ratio BE EF 06 00 AE D7 01 00 08 20 0B 00 BE EF...
- Page 69 Communication settings RS-232 Communication command table (continue) Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code ALIGNMENT Rear Projection / Front / Desktop BE EF 06 00 C7 D2 01 00 01 30...
- Page 70 Communication settings RS-232 Communication command table (continue) Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code ALIGNMENT Warp Increment BE EF 06 00 CB 8A 04 00 28 21 00 00 - Bottom right...
- Page 71 Communication settings RS-232 Communication command table (continue) Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code CONTROL IR Address remote code 1 BE EF 06 00 0F 31 01 00 08 26...
- Page 72 Communication settings RS-232 Communication command table (continue) Hitachi Commands Header Data (7 bytes) Command Data (6 bytes) Function Operation Description Action Type Setting Code CONTROL Button 5 HDMI 1 BE EF 06 00 FA 32 01 00 04 36 03 00...
-
Page 73: Copyright Information
Copyright information Copyright Copyright 2013. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieva l system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. - Page 74 Am Seestern 18 Tel: +60 -3-8911-2670 40547 Düsseldorf GERMANY http://www.hitachiconsumer.com.my Tel: 0 40 73353 468 +49 (0) 40 73353 468 Hitachi Home Electronics Asia (S) Pte. Ltd. Email: Service.germany@hitachi-eu.com 438A Alexandra Road #01-01/02/03 Hitachi Europe S.A. Alexandra Technopark, 119967 SINGAPORE 364, Kifissias Ave.
