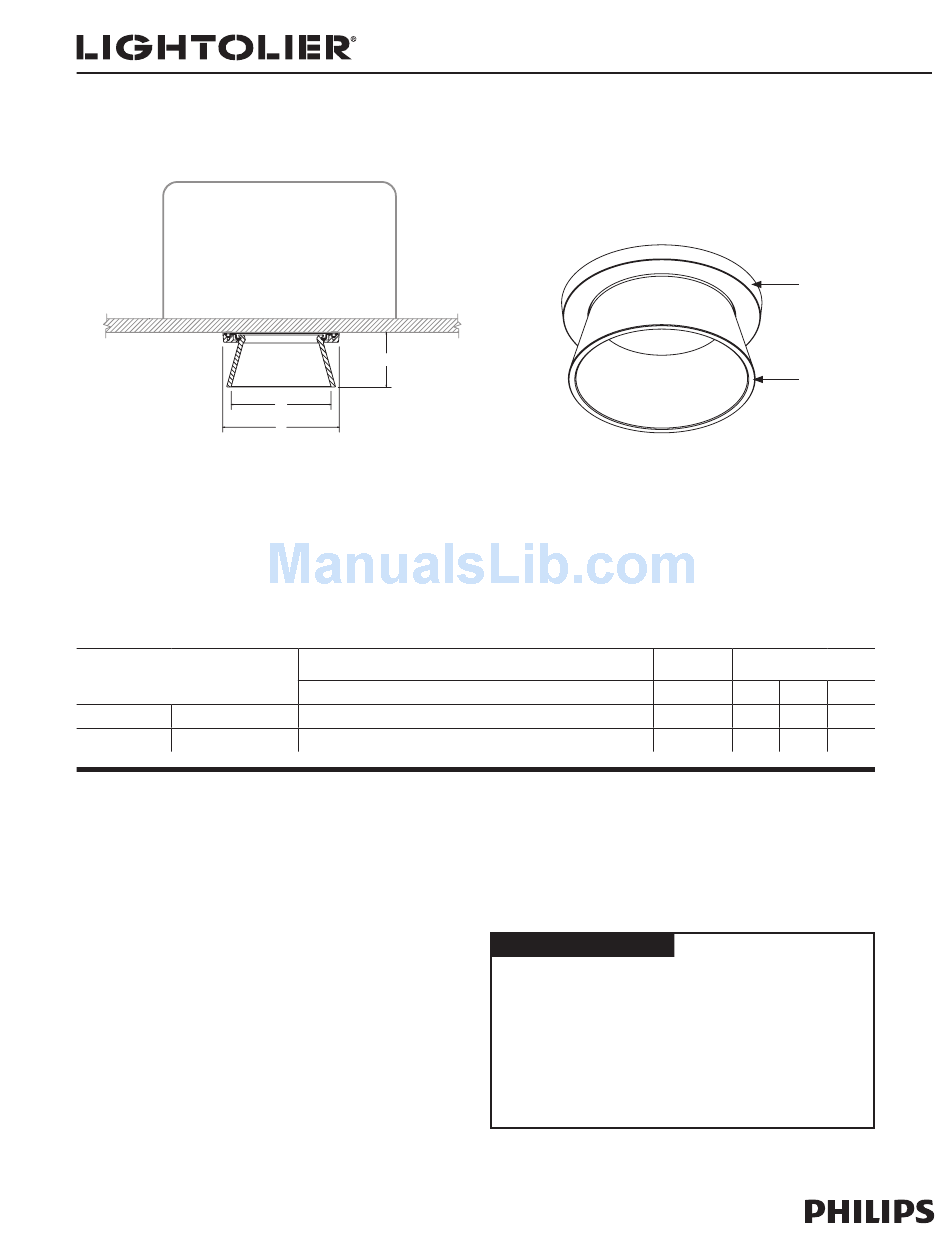

Lightolier D03 Specification

Page 1 of 2
Complete Fixture consists of Decorative Element/Trim-Kit + Frame-In Kit. Each sold seperately.
2 Piece Ordering System, Example: D3MR03 + C3LV
Decorative Element/Trim Kit
Catalog No.
3" Evolution D3MR03
4" Evolution D4MR03
Features
1. Decorative Element: Angled hand blown triplex glass carefully
proportioned to each aperture size. Glass is gently and evenly illuminated for
clean brightness recognition.
2. Die Cast Finish Ring: Aluminum Die Cast finish ring with crisp 90 degree
edges conceals all fasteners for a clean finished appearance.
3. Integral Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp
image. Decorative Element is mechanically attached to reflector via die cast
ring. Reflector is specular clear for best performance and aesthetics.
4. Cover Glass: 3" Evolution contains high temperature soft focus lens. 4"
Evolution contains high temperature perimeter frost.
5. Trim Kit: For 3" and 4" Evolution, trim kit, reflector and decorative element
ship complete.
6. Frame-In Kit: Specified separately. See Frame-In Kit Specification Sheet for
details.
Lightolier is a Philips group brand
C
A
B
Frame-In Kit
C3LV; C3AICLV; C3ALV; C3LVE1; C3LVE2; C3ALVE1; C3AICLVE1; C3ALVE2
C3LV; C4ALV; C4AICLV
Architectural Decorative Vetro Downlight
Mechanical
Decorative element is mechanically secured to the die cast finish ring and the
integral reflector from the factory.
Labels
cULus (Damp Location)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C1108
Evolution, Low Voltage
2
1
Lamping Dimensions
A B
50W MR16 3 5/8" 4 1/4"
50W MR16 5" 5 5/8" 2 1/4"
Type:
D03
C
2"
