Owner's Manual
Please read before using this unit.

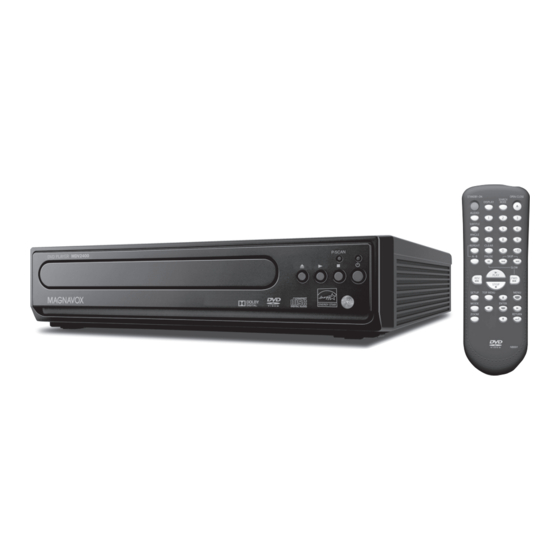

DVD/CD Player
MDV2400
Supplied Accessories
• Remote Control (NB691UD)
• Audio / Video cables
• SETUP MANUAL
Connecting to RF Modulator (Not Supplied)
If your TV has Antenna In jack only, it is still possible to
connect this unit to your TV by using an RF modulator. In
this case, follow the instructions below.
1) Disconnect the power cords of the devices from the
AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to
either 3 or 4, whichever the TV channel is least used in
your area. If your RF modulator has a modulator/
antenna switch, set it according to the manual
supplied with the RF modulator.
4) Plug In the power cords of the devices to the AC outlet.
5) Turn On your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to.
For more details, follow the manual supplied with the
RF modulator.
rear of this unit
C
B
/P
B
Y
L
DIGITAL
AUDIO OUT
R
VIDEO
AUDIO
COAXIAL
C
R
/P
R
OUT
OUT
COMPONENT
VIDEO
AUDIO
VIDEO OUT
OUT
OUT
rear of your RF
VHF / UHF
modulator
antenna
or
RF coaxial
cable TV
cable
company
Set channel 3 or 4
No Antenna (RF) Output!
If your TV only has an Antenna input
(no A /V inputs), you will need a
RF modulator (NOT INCLUDED) to
connect this player.
RF modulator
3
4
CHANNEL
Notes:
• RF modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF modulator.
© 2013 Funai Electric Co., Ltd.
video cable
L
R
rear of TV
audio cable
ANT. IN
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
ANT. IN
TV
L
R
VIDEO IN
AUDIO IN
TO TV
ANT. IN
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
Contents
PRECAUTIONS
Safety Instructions.....................................................................2
About the Discs ..........................................................................5
Playable Discs.......................................................................................... .5
Unplayable Discs .................................................................................... .5
SETUP
Connections ...............................................................................6
Connection to a TV................................................................................
V
Connection to an Audio System ...................................................... .7
About the Remote Control .......................................................
Remote Control ...................................................................................... .8
Playback ...................................................................................
Search Functions ......................................................................10
Using Track Search ............................................................................... .10
Using Title / Chapter Search ............................................................. .10
Using Time Search ................................................................................ .10
On-Screen Display ...................................................................
Repeat / Random / Programmed Playback ............................
Repeat Playback ....................................................................................
Repeat A-B Playback ............................................................................
Random Playback .................................................................................
Programmed Playback........................................................................
Special Settings ........................................................................13
Subtitle Language................................................................................. .13
Audio Language .................................................................................... .13
Camera Angles....................................................................................... .13
Black Level Setting................................................................................ .13
Stereo Sound Mode ............................................................................. .13
DVD Setting ..............................................................................14
LANGUAGE Setting ............................................................................... .14
DISPLAY Setting..................................................................................... .15
AUDIO Setting........................................................................................ .15
PARENTAL Setting ................................................................................ .16
OTHERS Setting...................................................................................... .16
(Except for PARENTAL Setting) ........................................................ .17
Troubleshooting Guide ............................................................17
Specifications ...........................................................................17
Español ....................................................................................
LIMITED WARRANTY ....................................................
Y Y
If you need additional operating assistance after
reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at
www.magnavox.com/support
.6
.8
.9
.11
.12
.12
.12
.12
.12
.18
back cover
