Coleman SUNDOME 9180-309 Instructions

When You Are Ready To Set
Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent
into the wind.

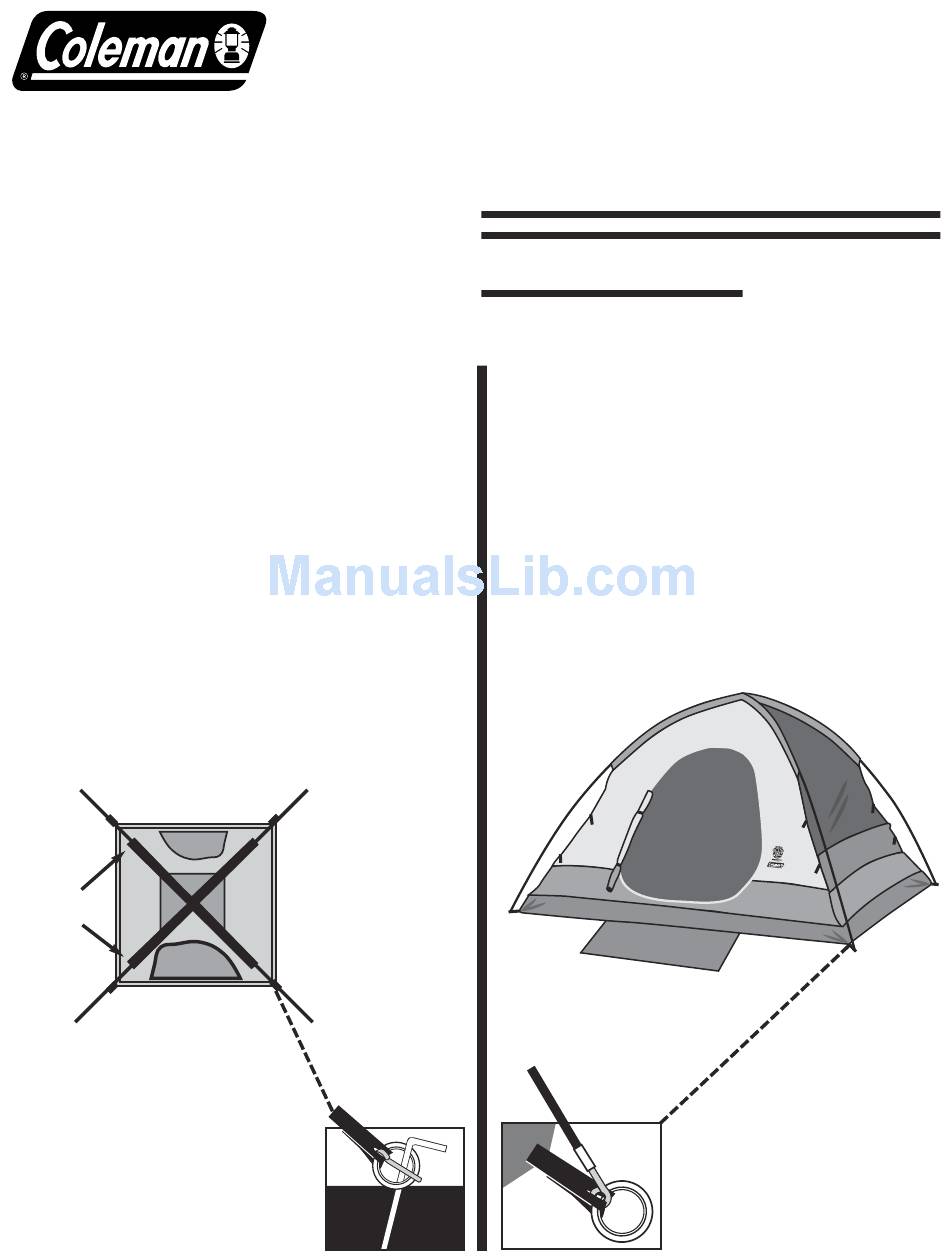

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners only, using
the rings at the end of the stake loops.
Keep the floor taut. (illus. 2)
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an "X" in the middle of
tent. (illus. 1)
Assembled
poles
inserted
through
pole
sleeves
illus. 1
Tent stake through ring
SUNDOME
Instructions apply to Part Number 9180-907
Main Tent
Poles
Rainfly
Pole
illus. 2
® 9'x7'
POLE ASSEMBLY PARTS
Part No. 9180-308
Part No. 9180-309
Rainfly Part No. 9180-307
2 Connect Frame to Tent
– Insert one end of main tent pole end
onto pin of pin & ring system, at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole. (illus. 4)
illus. 4
Tent frame set-up
illus.3
Insert pole end onto
pin & ring
