Coleman Sundome 9180B705 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent
into the wind.

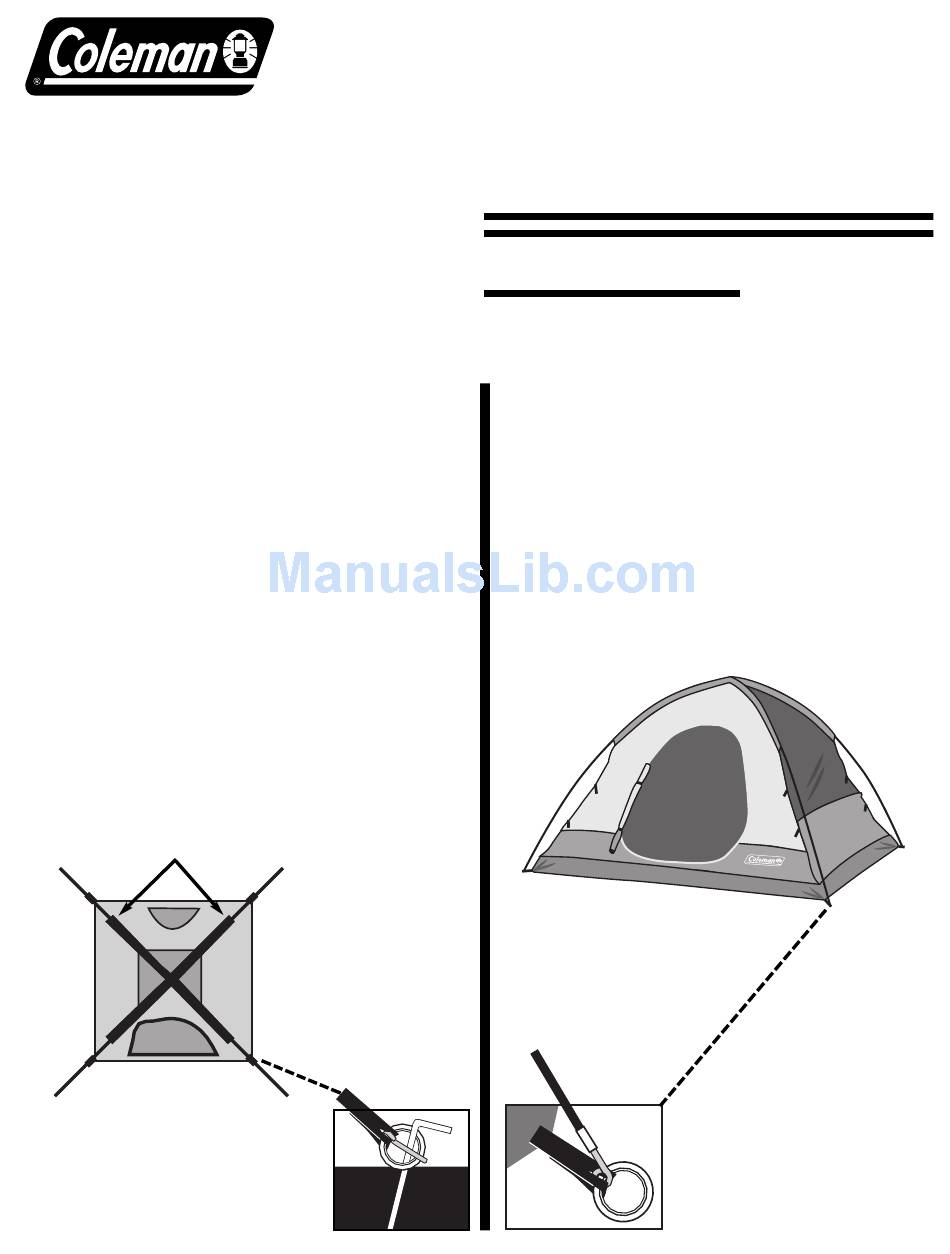

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners only, using
the rings at the end of the stake loops.
(illus.2) Keep the floor taut.
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves. The center of the poles
should cross forming an "X" in the
middle of tent. (illus. 1)
Assembled poles
inserted through
pole sleeves
illus. 1
Tent stake through ring
SUNDOME
Instructions apply to Part Number 9180B705
(2) Main Tent
Poles
(1) Rainfly
Pole
illus. 2
®
7'x5'
POLE ASSEMBLY PARTS
Part No. 9180B3151
Part No. 9180B3251
Rainfly Part No. 9180B3351
2

Connect Frame to Tent

– Insert one end of main tent pole
onto pin of pin & ring system, at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole. (illus. 4)
illus. 4
Tent frame set-up
illus. 3
Insert pole end onto
pin & ring
