Coleman 9160B807 Instructions

When You Are Ready To Set Up
Your Tent
–Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.
–See owners manual for more tips.

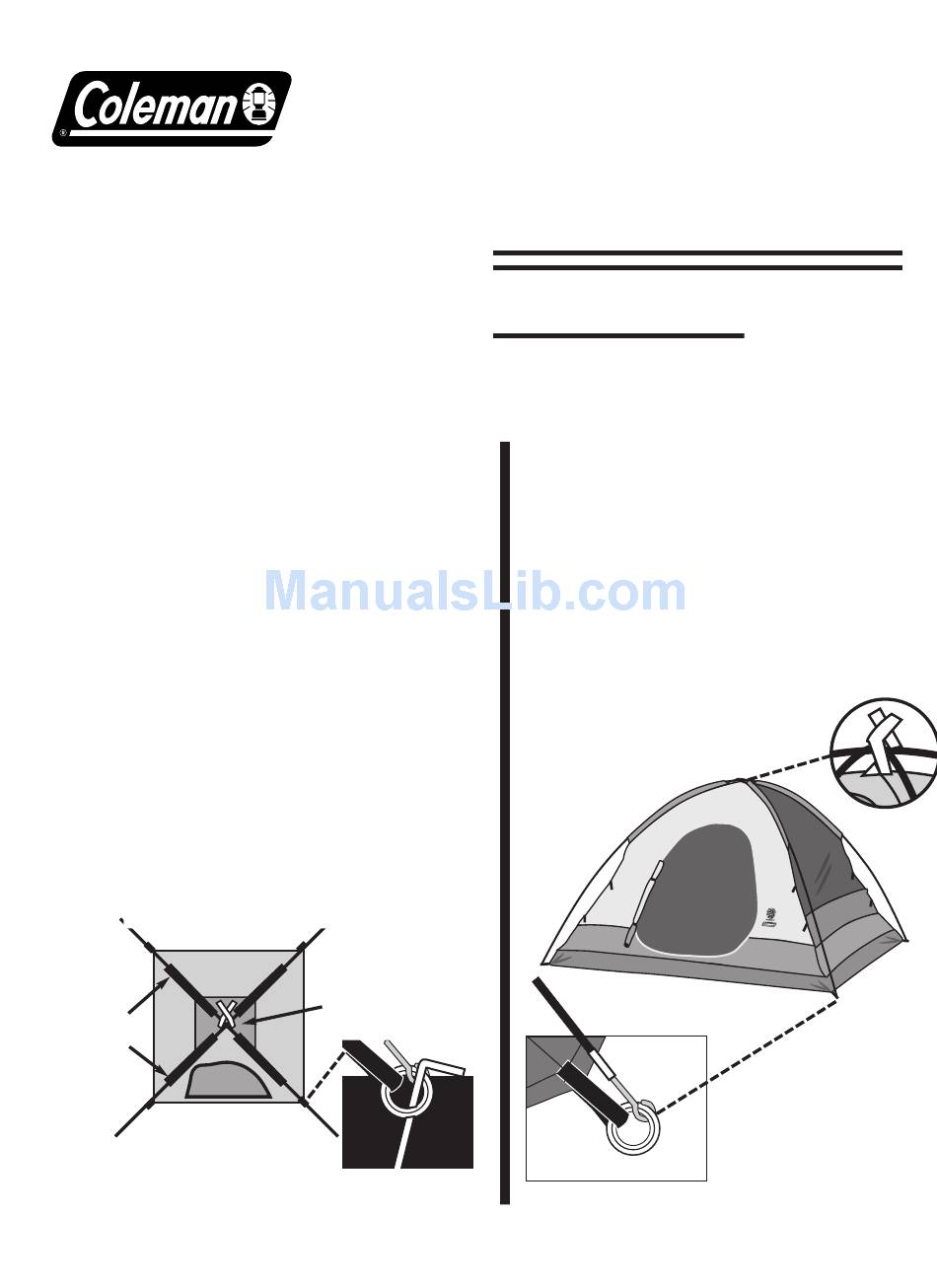

1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with door
facing desired direction. (illus. 1)
–Unzip door.
–Stake down tent corners only, using the
stake loops. Keep the floor taut.
(Intermediate loops will be staked later.)
–Assemble Frame Poles by interlocking
shock-corded poles. (four poles)
–Insert the poles into Pole Sleeves.The
longer black poles should cross forming
an "X" in the middle of tent. (illus. 1)
–Fasten Frame Tie on top of tent over
both poles. (illus. 1), (illus. 3)
Assembled
poles
inserted
through
pole
sleeves
illus. 1
Instructions apply to Part Number 9160B807
Part No. 9260A802
Main Tent
Poles
Part No. 9260-803
Rainfly
Pole
Rainfly Part No. 9160-B801
Frame Tie
illus. 2
Tent stake
through ring
8x7 Dome
POLE ASSEMBLY PARTS
2 Connect Frame to Tent
–Insert one end of main tent pole end
onto pin of ring and pin system, at tent
corner. (illus. 4)
–Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
–Repeat for second pole.
illus. 3
Frame Tie
illus. 5
Tent frame
set-up
illus.4
Insert pole tip into
grommet on stake loop
