Seed Box Assembly - Classen TRS-20 TURF RAKE Operator's & Parts Manual

QTY/PER
KEY PART NO. MACHINE
1 500068 8
2 100140 1
3 500089 2
4 100142 1
5 100141 1
6 500118 3
7 100139 1
8 100127 1
9 100229 3
10 100144 2
11 100357 1
12 500226 1
13 100355 2
14 100067 2
15 400038 1
16 100078 1
17 400039 1
14

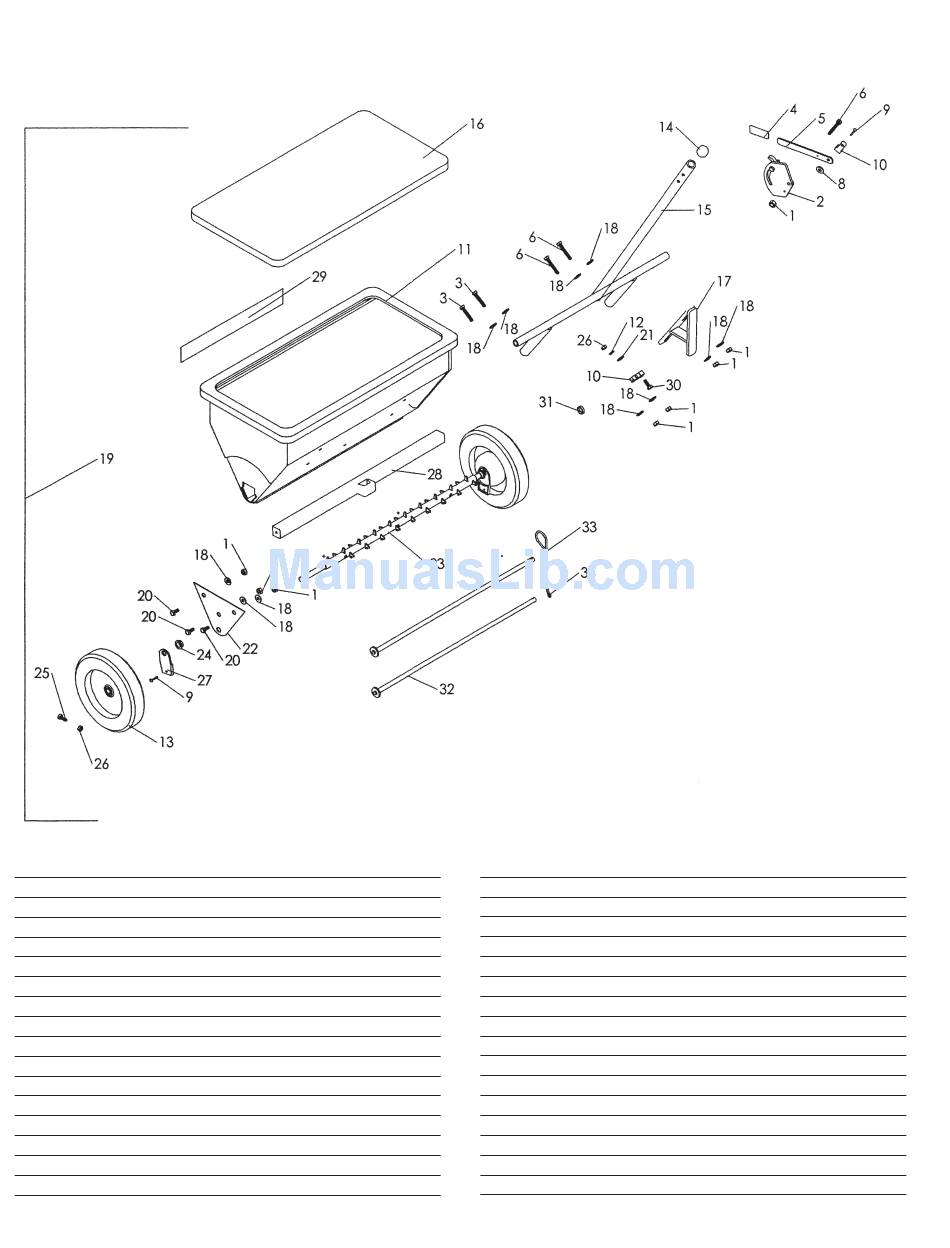

TSS-20 SEED BOX ASSEMBLY
DESCRIPTION
1/4" NYLOC NUT
GAUGE w/ BOLT & WING NUT
1/4" x 1-1/2" BOLT
CONTROL LEVER GRIP
CABLE CONTROL LEVER
1/4" x 1-3/4" BOLT
CONTROL CABLE (NOT SHOWN)
FRICTION WASHER
#8 x 3/4" BLACK SCREW
HOUSING CLIP
SEED BOX
3/16 LOCK WASHER
8" SEED BOX DRIVE WHEEL
SHAFT GUARD
MOUNTING BRACKET
VINYL SEED BOX COVER
STABILIZING BRACKET
QTY/PER
KEY PART NO. MACHINE
18 500088 10
19 900033 1
20 500069 3
21 500227 1
22 300116 1
23 400209 1
24 100356 2
25 500223 2
26 500224 3
27 100358 2
28 100359 1
29 100074 1
30 500225 1
31 100020 1
32 400040 2
33 500096 1
34 500016 1
DESCRIPTION
1/4" FLAT WASHER
COMPLETE SEED BOX ASSEMBLY
1/4" x 5/8" BOLT
3/16" FLAT WASHER
SIDE PLATE
AXLE
BEARING
3/16 x 1" BOLT
3/16" NUT
SHUT-OFF END CLIP
SHUT-OFF ASSEMBLY
DECAL, "CLASSEN"
3/16" x 3/4" BOLT
PLASTIC TIE
CONNECTING PINS
5/32" x 3" HAIR PIN
5/32" x 1-1/4" COTTER PIN
