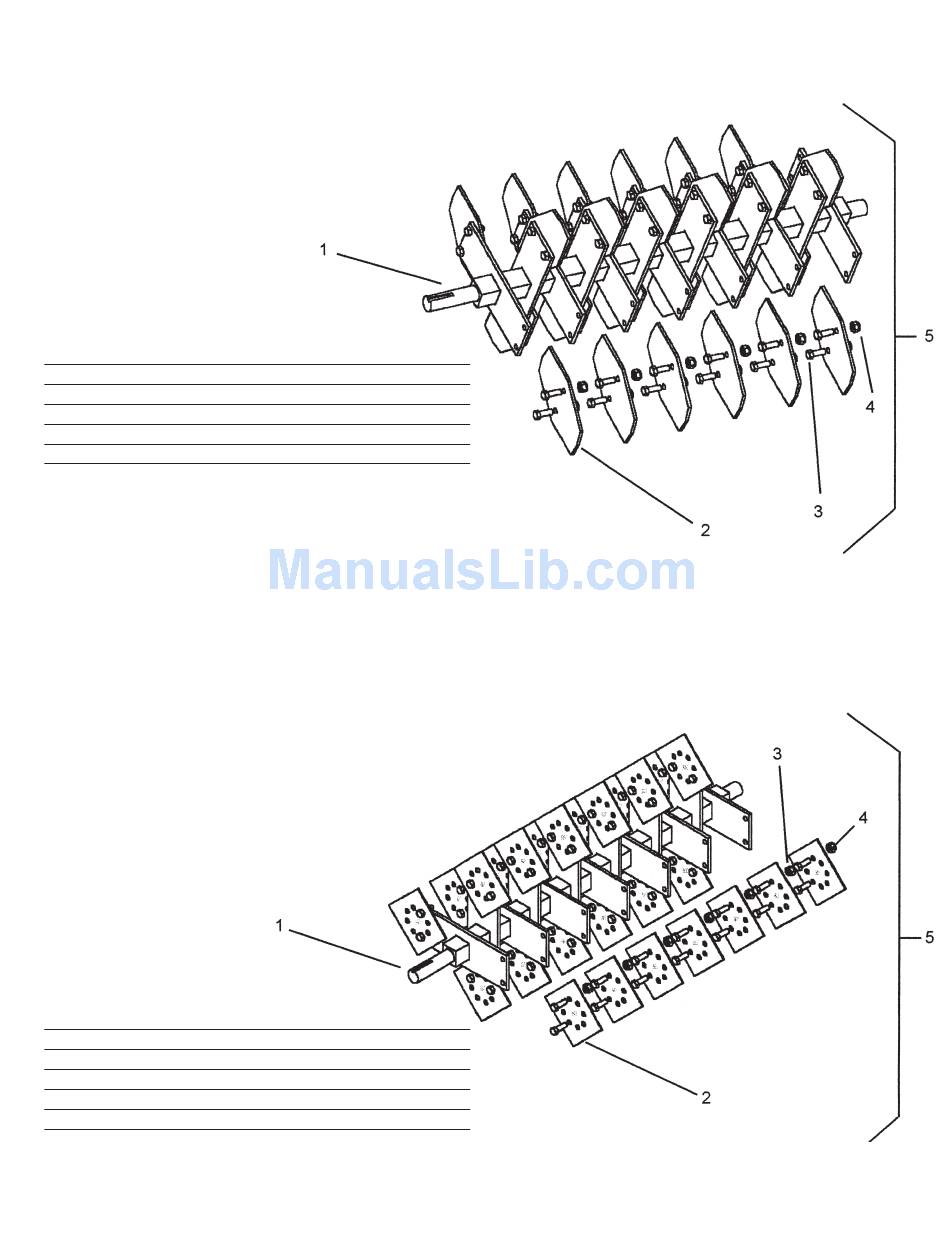

SEEDER/MULTIPURPOSE BLADE ASSEMBLY

QTY/PER
KEY PART NO. MACHINE
1 700025 1
2 100310 26
3 500216 52
4 500217 52
5 600030 1
6 900026 1
SLICER BLADE ASSEMBLY (OPTIONAL)
QTY/PER
KEY PART NO. MACHINE
1 700025 1
2 300032 26
3 500180 52
4 500160 52
5 600024 1
6 900016 1
DESCRIPTION
Shaft w/ Blade Holders, Multipurpose
Blade w/ 15/16" Holes, Multipurpose
Bolt, 5/16-18 x 314 Grade 8
Nut, 5/16-18 Tap Lock
Shaft/Blades Sub-Assembly, Multipurpose
Complete Multipurpose Shaft Assembly
(Includes Shaft, Blades, End Plates,
Bearings, Pulley, Key & Fasteners)
- Not Shown
DESCRIPTION
Shaft w/ Blade Holders, Multipurpose
Blade, Slicer Square
Bolt, 1/4-20 x 3/4 Grade 8
Nut, 1/4-20 Top Lock
Shaft/Blades Sub-Assembly, Multipurpose
Complete Slicing Shaft Assembly
(Includes Shaft, Blades, End Plates,
Bearings, Pulley, Key & Fasteners)
- Not Shown
