Lightolier 83ED17R SERIES Attachment Manual

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTIONS FOR ATTACHING 83ED17R SERIES REFLECTORS TO
POWERARC MODULAR ED17 LYTESPOT (ROUND OR SQUARE FRONT)
INSTRUCTIONS FOR ATTACHING 83ED17R SERIES
REFLECTORS TO A PowerArc ED17 SPOT:
(See chart below for compatible luminaires)
Compatible Luminaires
Cat. No. Product Group
ED17 Open/Square Lytespot
8307
for Protected Lamp
Lytespan Track
ED17 Enclosed/Round Lytespot
8317
for Protected Lamp
ED17 Open/Square Lytespot
8307U
for Unprotected Lamp
ED17 Enclosed/Round Lytespot
8317U
for Unprotected Lamp
Note: Reflectors Must Be Installed Prior To Lamps. After
reflector is installed, see IS:83S for installation, lamp-
ing, and operating instructions.

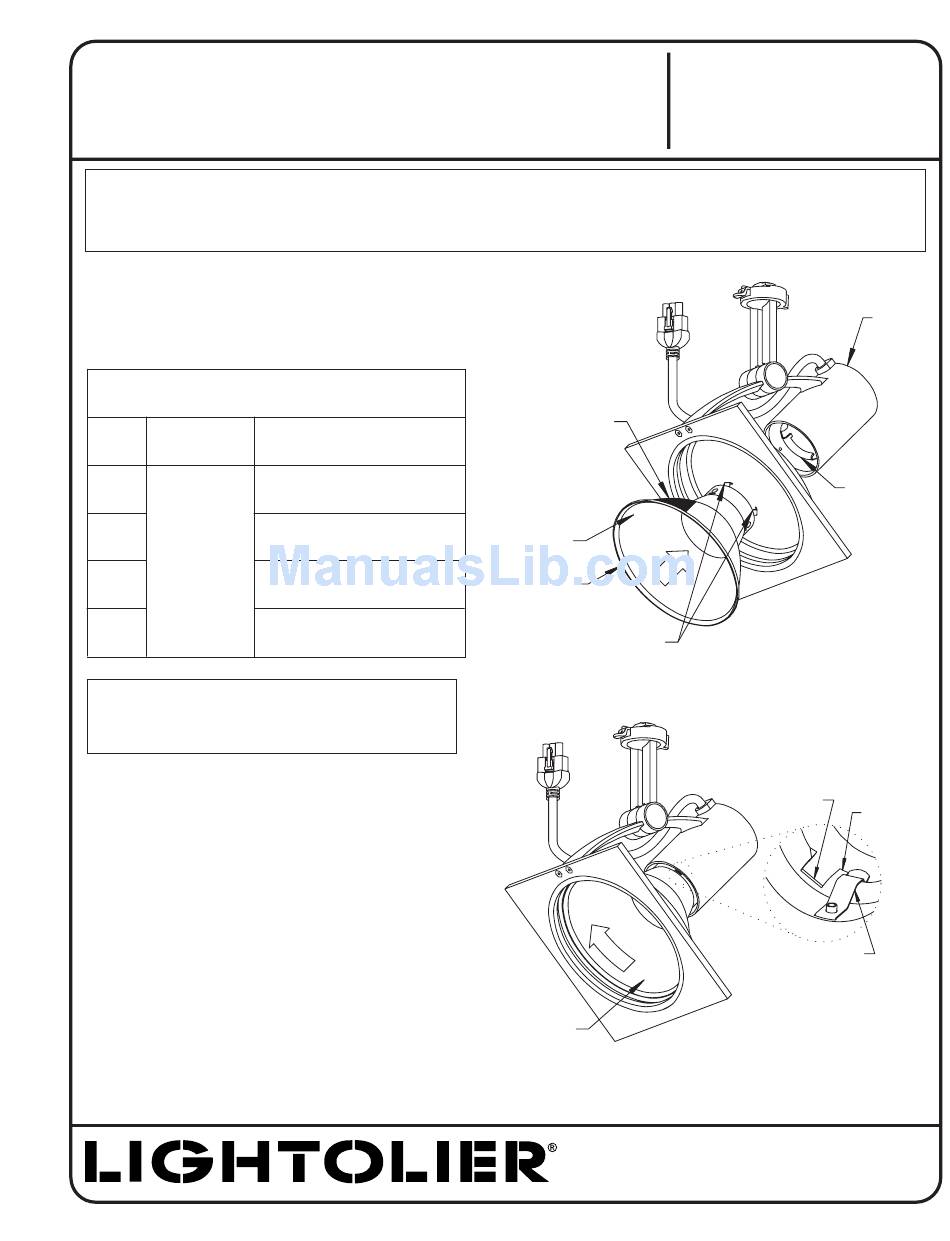

1. Orienting LABEL in the UP position, hold REFLECTOR
by the LIP and push into REFLECTOR CUP until
REFLECTOR SPRINGS engage. (See FIG. 6 and 7).
2. Rotate REFLECTOR clockwise until the REFLECTOR
SPRINGS hit the ROTATION STOPS on the REFLEC-
TOR CUP. (See FIG. 7)
To remove REFLECTOR:Remove lamp, rotate
REFLECTOR counterclockwise until REFLECTOR
SPRINGS snap into REMOVAL SLOTS. Pull REFLEC-
TOR out of REFLECTOR CUP. (See Fig. 7)
Description
LABEL
(UP POSITION)
REFLECTOR
REFLECTOR
LIP
REFLECTOR
SPRINGS
REFLECTOR
LIGHTOLIER a GENLYTE THOMAS company.
631 Airport Road, Fall River, MA 02720
INSTRUCTION SHEET NO.
IS:83ED17
C0104 Page 1 of 2
TM
REFLECTOR
CUP
FIG. 6
REMOVAL
ROTATION
SLOT
STOP
REFLECTOR
SPRING
FIG. 7
ED17
SPOT
