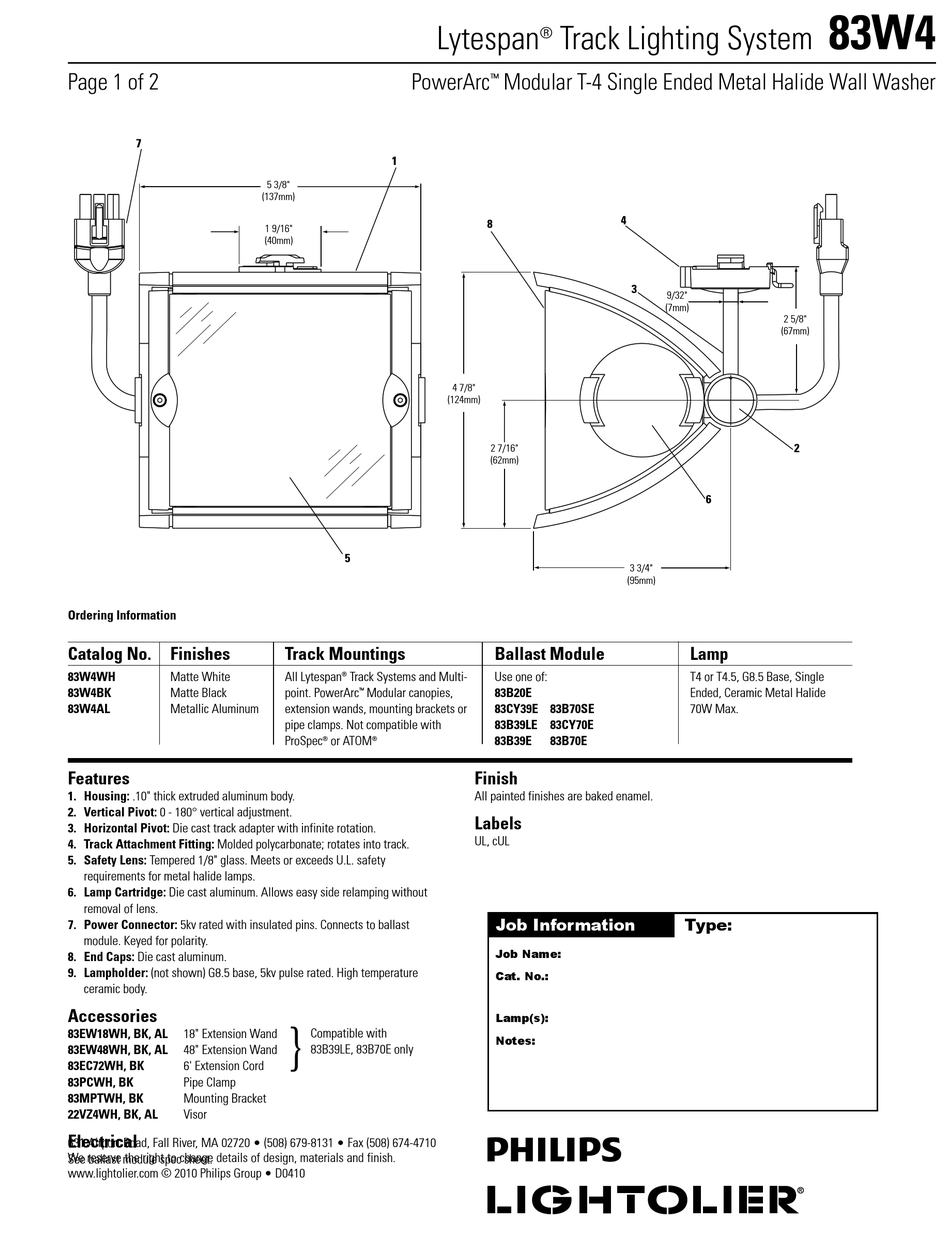

Lightolier Lytespan 83W4 Specification

Page 1 of 2
7
Ordering Information
Catalog No. Finishes
83W4WH Matte White
83W4BK
Matte Black
83W4AL Metallic Aluminum
Features
1. H ousing: .10" thick extruded aluminum body.
2. Vertical Pivot: 0 - 180° vertical adjustment.
3. H orizontal Pivot: Die cast track adapter with infinite rotation.
4. T rack Attachment Fitting: Molded polycarbonate; rotates into track.
5. S afety Lens: Tempered 1/8" glass. Meets or exceeds U.L. safety
requirements for metal halide lamps.
6. Lamp Cartridge: Die cast aluminum. Allows easy side relamping without
removal of lens.
7. Power Connector: 5kv rated with insulated pins. Connects to ballast
module. Keyed for polarity.
8. End Caps: Die cast aluminum.
9. Lampholder: (not shown) G8.5 base, 5kv pulse rated. High temperature
ceramic body.
Accessories
83EW18WH, BK, AL 18" Extension Wand
83EW48WH, BK, AL 48" Extension Wand
83EC72WH, BK 6' Extension Cord
83PCWH, BK Pipe Clamp
83MPTWH, BK
Mounting Bracket
22VZ4WH, BK, AL Visor
Electrical
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
See ballast module spec sheet.
www.lightolier.com © 2010 Philips Group • D0410
Lytespan
PowerArc
1
5 3/8"
(137mm)
1 9/16"
(40mm)
5
Track Mountings
All Lytespan Track Systems and Multi-
®
point. PowerArc Modular canopies,
™
extension wands, mounting brackets or
pipe clamps. Not compatible with
ProSpec or ATOM
® ®
}
Compatible with
83B39LE, 83B70E only
Track Lighting System
®
Modular T-4 Single Ended Metal Halide Wall Washer
™
4
8
4 7/8"
(124mm)
2 7/16"
(62mm)
Ballast Module
Use one of:
83B20E
83CY39E 83B70SE
83B39LE 83CY70E
83B39E 83B70E
Finish
All painted finishes are baked enamel.
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
3
9/32"
(7mm)
2 5/8"
(67mm)
2
6
3 3/4"
(95mm)
Lamp
T4 or T4.5, G8.5 Base, Single
Ended, Ceramic Metal Halide
70W Max.
Type:
83W4
