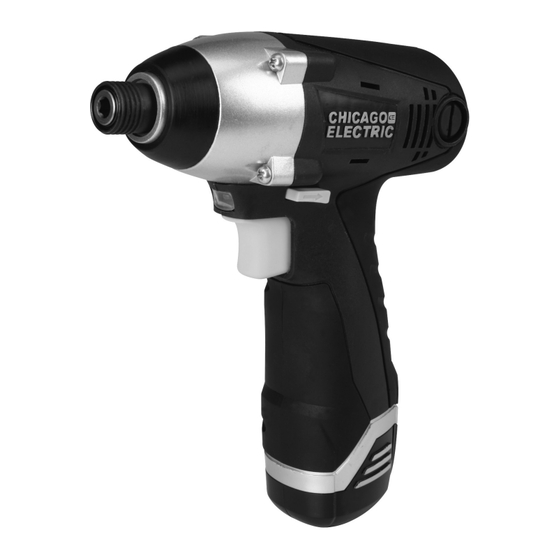

12V Lithium Ion Impact Driver
68568 12V Impact Driver
Read this material before using this product.
Failure to do so can result in serious injury.
Save this manual.
When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken,
©
Copyright
2011 by Harbor Freight Tools
or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included.
please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
®
. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape

Advertisement

Table of Contents
loading

Related Manuals for Chicago Electric 68568

Summary of Contents for Chicago Electric 68568

  • Page 1 12V Lithium Ion Impact Driver 68568 12V Impact Driver Read this material before using this product. Failure to do so can result in serious injury. Save this manual. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.

  • Page 2: Specifications

    Specifications Charger Input 120 V~ / 60 Hz / 1.5 A DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. Motor Speed 0 - 2000 IPM (impact per minute) Chuck 1/4” Hex Settings Forward / Reverse WARNING indicates a hazardous situation which, if Max.

  • Page 3: Impact Driver Safety Warnings

    3. Personal safety power tool’s operation. If damaged, have the power tool repaired before use. Many accidents a. Stay alert, watch what you are doing and use are caused by poorly maintained power tools. common sense when operating a power tool. Do not use a power tool while you are tired or under f.

  • Page 4: Vibration Safety

    Lithium Battery Safety Warnings The battery charger gets hot during use. The charger’s heat can build up to unsafe levels and create a fire hazard if it does not receive adequate ventilation, due to an electrical fault, or if it is used in a hot environment. Do not place the charger on a flammable surface.

  • Page 5: Extension Cords

    5. Include vibration-free periods each day of work. Extension Cords 6. Grip tool as lightly as possible (while still keeping safe control of it). Let the tool do the work. Note: Extension cords must not be used with this item’s charger. 7.

  • Page 6: Instructions For Putting Into Use

    Instructions for Putting into Use Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unlock and release the Trigger and disconnect Battery Pack before assembling or making any adjustments to the tool.

  • Page 7: Tool Set Up

    WARNING! Do NOT use a different Charger Operating Instructions or Battery to power this Impact Driver. General Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before TO PREVENT SERIOUS INJURY FROM set up or use of this product.

  • Page 8: Maintenance And Servicing

    Maintenance and Servicing Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unlock and release the Trigger and disconnect Battery Pack before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.

  • Page 9: Troubleshooting

    Troubleshooting Problem Possible Causes Likely Solutions Tool will not start. 1. No power at outlet during 1. Check power at outlet. If outlet is unpowered, charging. turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.

  • Page 10: Parts List And Assembly Diagram

    Parts List and Assembly Diagram PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 11: Assembly Diagram

    Parts List and Assembly Diagram Assembly Diagram SKU 68568 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: Limited 90-Day Warranty

    LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
