Philips 4A35 Specification

Page 1 of 2

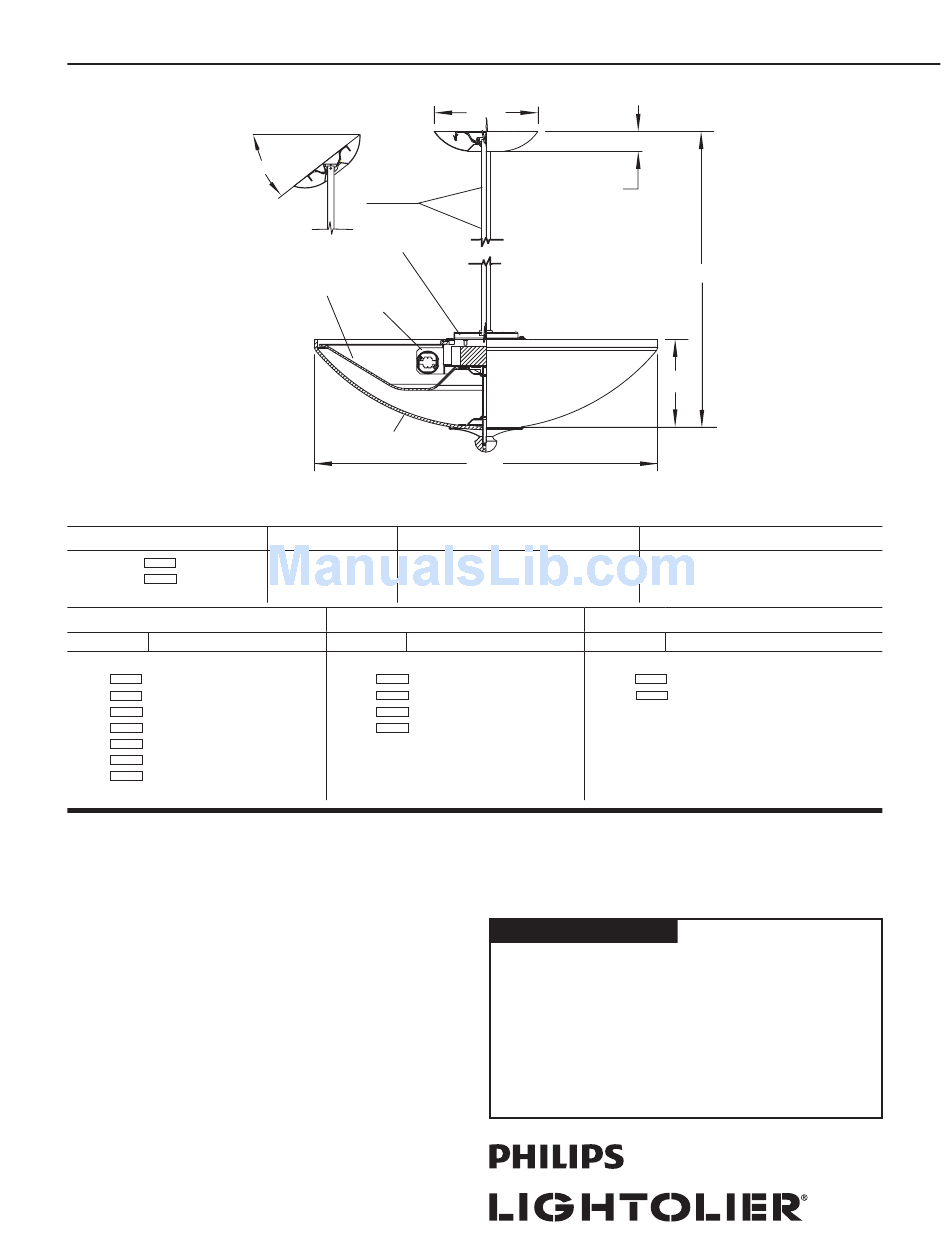

Note: Drawing above illustrates only one
of the suspension types available for this
luminaire. For other drawings, consult
individual Suspension Specification Sheet
numbers as noted in Suspension chart(s)
below.
Complete Luminaire consists of Body and Suspension: Order each separately.
Body Cat. No.
4A35642APBU
4A35642ASNU
Single Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix: PB or SN
4SB115 16 9/16"
4SB118
18" (close-to-ceiling)
4SB121
19 5/16"
4SB124 25 9/16"
4SB128 29 3/8"
4SB135 35"
4SB142 40 5/16"
See Specification Sheet(s) 4SB115, 4SB124

Specifications

• Suspension Size: For optimum performance testing recommends OAL
(overall length) in proportion to the Body diameter or for close-to-ceiling
proportion length (see shaded cells). OAL is defined from bottom of diffuser
to ceiling plane.
• Stem Wires: Equipped with 120" of leads with keyed connectors for quick
connection to Body wiring.
Options & Accessories
MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.
Replace Body Cat No. Suffix "U" with Suffix "MX1".
E3 = 347V (Canada)
Replace Body Suffix "U" with Suffix "E3".
EM = Emergency Battery Pack
Add Suffix "EM" to Body Cat. No.
Multi-Level Switching: Prewired, consult wiring diagram.
Fusing: Consult Factory
Finishes: PB = Polished Brass, SN = Satin Nickel
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0609
45ϒ
Max.
4
3
2
5
1
Finish Lamps
Polished Brass 6-26 Triple Tube Compact Fluorescent
Satin Nickel or 6-32 Triple Tube Compact Fluorescent
or 6-42 Triple Tube Compact Fluorescent
Multiple Swivel Stem
Cat. No. Nominal OAL
Specify Finish as Suffix: PB or SN
4SB224 25 9/16"
4SB228 29 3/8"
4SB235
35"
4SB242 40 5/16"
See Specification Sheet 4SB224.
Architectural Decorative
Pendalux Cirrus 35" Diameter Body 6-26/32/42 Triple Tube
7"
1 3/8"
35"
Suspension Extension Kits
Cat. No.
Specify Finish as Suffix: PB or SN
4SXT48
4SXT96
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Nominal OAL
7 1/2"
Options
MX1 (26W, 120V only), E3 (347V), or EM
Add suffix to cat. no.
Nominal OAL
48"
96"
Type:
4A35
