Lossnay
Models:
LGH-15RX
-E,
4
LGH-50RX
-E,
4
LGH-100RX
-E,
4
Operating Instructions
Please read through these instructions in order to familiarize yourself with the proper and safe procedures for operat-
ing the Lossnay.
After reading this manual, keep it in an easily accessible and safe place for future reference.
Safety precautions
The following signs indicate that death or serious injury may be caused by a failure to heed the precautions described below and the resultant
mishandling of the product.
WARNING
G This product must not be disassembled under any circumstances. Only authorized repair technicians are qualified to conduct
disassembly and repairs.
No
(Failure to heed this warning may result in fire, electrical shock or injury.)
disassembly
If your product needs to be repaired, consult your dealer.
G Do not splash water over this product.
(Failure to heed this warning may result in fire and/or electrical shock.)
Prohibited
G If flammable gases should leak, do not turn the Lossnay's switch on or off.
(Failure to heed this warning may cause the electrical contacts to generate sparks which may result in an explosion.)
Open windows to ventilate.
G Do not poke your fingers or sticks into the air intake and outlet while the product is operating.
(Failure to heed this warning may result in injury.)
Do not touch
G Gloves should be worn when doing the installation and maintenance work.
(Failure to heed this warning may result in injury.)
Instructions
G Be sure that the power board circuit breaker is in the OFF position and is securely locked by lock and key before proceeding with
must be
followed
maintenance work.
(Failure to heed this warning may result in electrical shock or injury.)
G In the event of trouble (smell of burning, etc.), shut down operation, set the power board circuit breaker to its OFF position and
consult your dealer.
(Continued operation without remedying the trouble may result in electrical shock, fire, etc.)
Names of the parts
Models LGH-15 to 100 RX
1 Maintenance cover
2 Control box
5 Lossnay core
6 Air exhaust fan
LGH-25RX
-E,
4
LGH-65RX
-E,
4
LGH-150RX
-E,
4
4
3 Lossnay core holder
4 Air supply fan
7 Air filter
8 Damper plate
LGH-35RX
-E
4
LGH-80RX
-E
4
LGH-200RX
Models LGH-150 and 200 RX
1 Maintenance cover
2 Control box
5 Lossnay core
7 Air filter
6 Air exhaust fan
-E
4
(For the user)
4
3 Lossnay core holder
4 Air supply fan
8 Damper plate
1
Advertisement
Related Manuals for Mitsubishi Electric LOSSNAY LGH-100RX4-E
Summary of Contents for Mitsubishi Electric LOSSNAY LGH-100RX4-E
-
Page 1: Operating Instructions

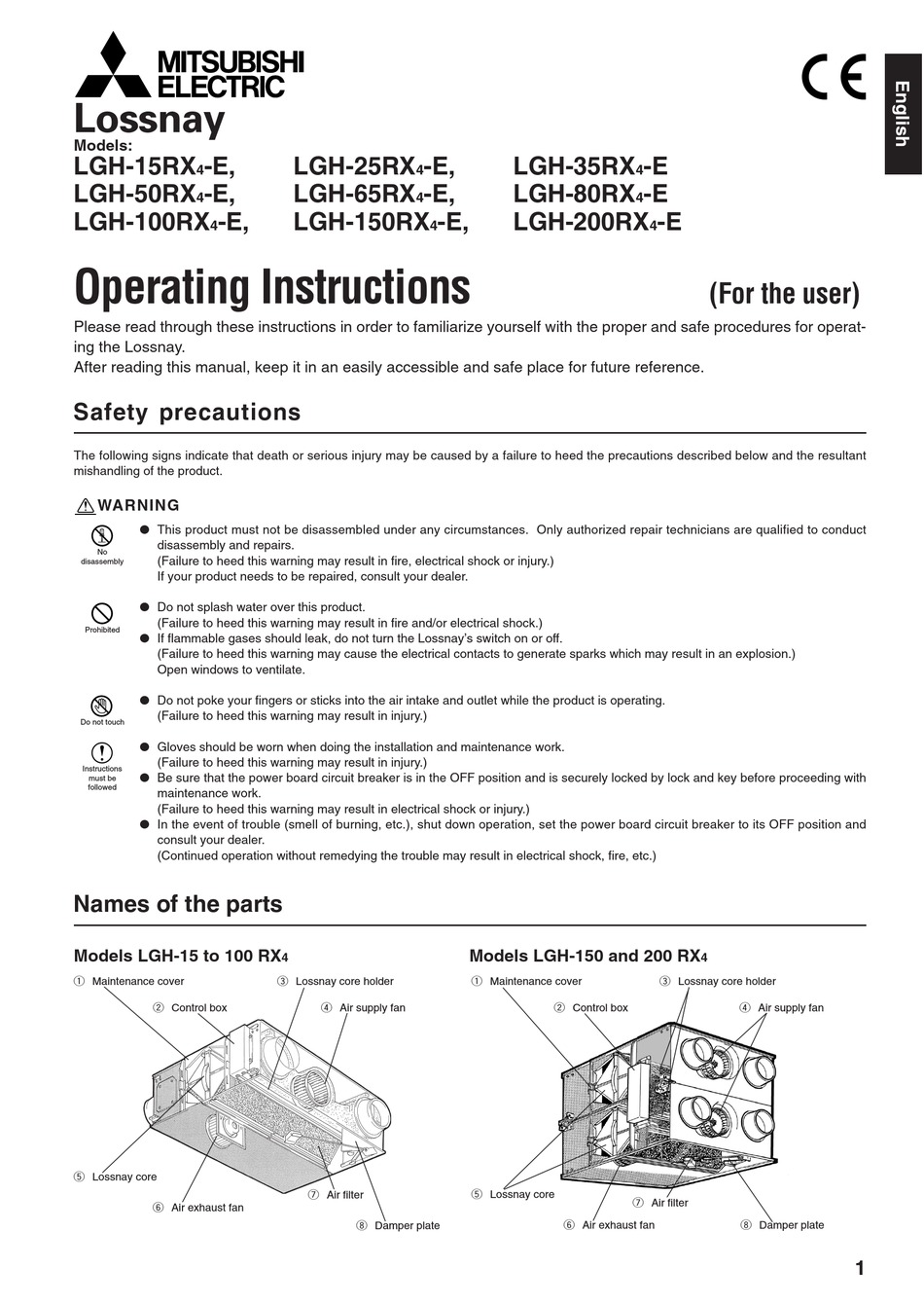

Lossnay Models: LGH-15RX LGH-25RX LGH-35RX LGH-50RX LGH-65RX LGH-80RX LGH-100RX LGH-150RX LGH-200RX Operating Instructions (For the user) Please read through these instructions in order to familiarize yourself with the proper and safe procedures for operat- ing the Lossnay. After reading this manual, keep it in an easily accessible and safe place for future reference. Safety precautions The following signs indicate that death or serious injury may be caused by a failure to heed the precautions described below and the resultant mishandling of the product. -
