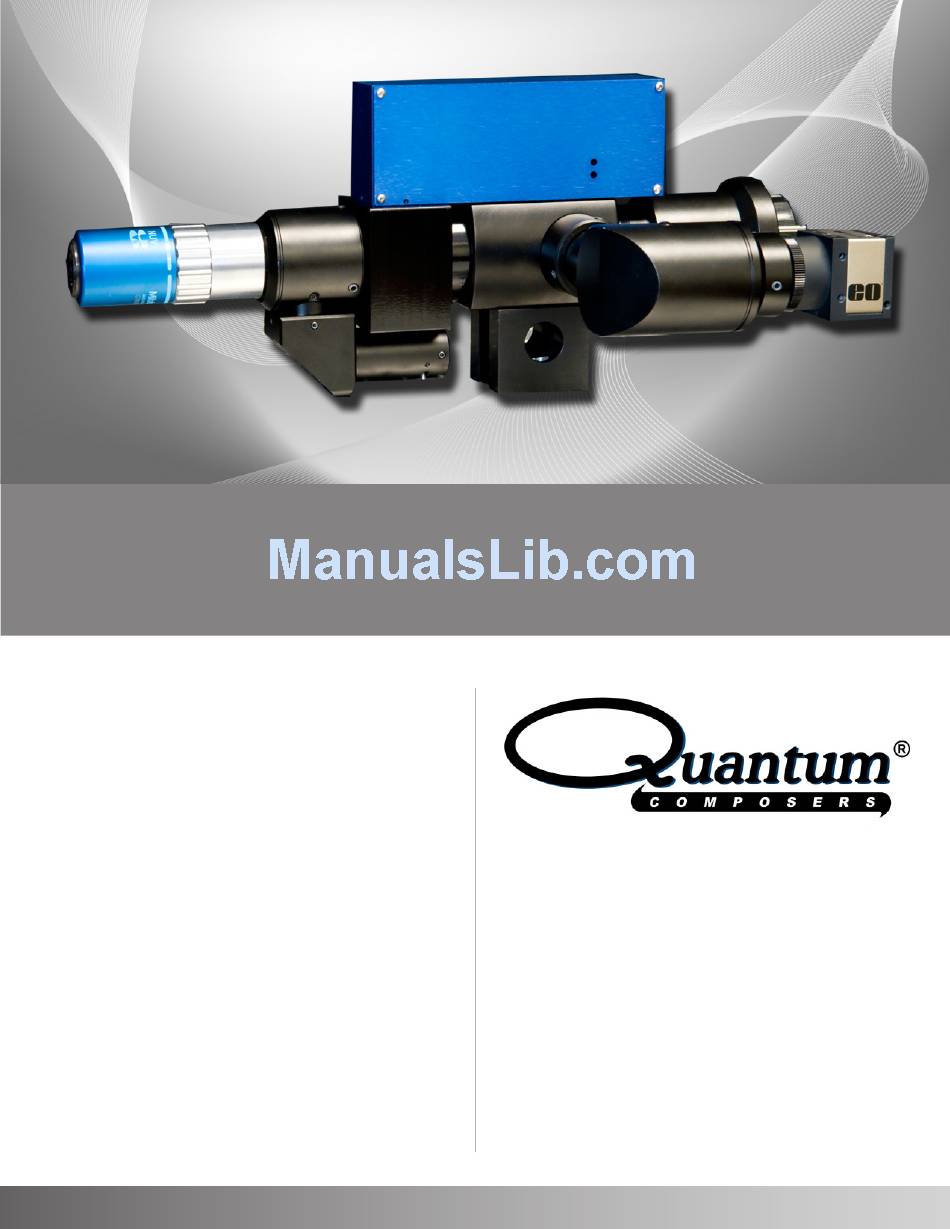

Autofocus AF910
The Quantum Composers Autofocus AF910 combines a
proprietary optical configuration with flexible interface
architecture to provide a robust autofocus for OEM
applications utilizing infinity corrected objectives.
The AF910 can be used on most surfaces:
• Low and high reflectivity
• Specular and diffuse
• Transparent and opaque
Includes
patterned
surfaces
semiconductors and PCBs.
The AF910 provides various interface options:
• RS 232
• Analog output
• Step/ Direction motor drive control
• In focus, in range status, edge detect status
An optional interface adapter may be included which allows
for custom electrical interfaces. The sensor I/O signals can
be broken out into separate connectors, allowing for
integration into existing systems.
Serial communications provides configuration, status and
control of the sensor. The sensor can store up to 7
configurations, each optimized for a different objective.
such
as TFT arrays,
Quantum Composers, Inc.
P.O. Box 4248
Bozeman, MT 59772
Phone
(406) 582-0227
Fax
(406) 582-0237
Toll Free
(800) 510-6530
www.QuantumComposers.com
sales@quantumcomposers.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Autofocus AF910 and is the answer not in the manual?

Questions and answers

Related Manuals for Quantum Composers Autofocus AF910

Summary of Contents for Quantum Composers Autofocus AF910

  • Page 1 Autofocus AF910 The Quantum Composers Autofocus AF910 combines a proprietary optical configuration with flexible interface architecture to provide a robust autofocus for OEM applications utilizing infinity corrected objectives. The AF910 can be used on most surfaces: • Low and high reflectivity •...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Objective 100x Focus Repeatability (um) +/- 6.0 +/- 2.5 +/- 0.5 +/- 0.4 +/- 0.3 +/- 0.2 +/- 20.0 +/- 5.0 +/- 1.0 +/- 0.8 +/- 0.5 +/- 0.3 Focus Accuracy (um) Resolution (um) 2.00 0.50 0.20 0.06 1.00 0.10 Linear Range (um)
  • Page 3 Definition Definition +12VDC SPARE +12VDC SPARE SPARE PH/B +5VDC Ref /LASER_DIS PH/A SYNCH AF_STATUS LIMITB LIMITA IN RANGE SPARE IN FOCUS SPARE ANALOG OUT STEP Toll Free Phone (800) 510-6530 Email Sales@QuantumComposers.com Toll Free Phone (800) 510-6530 Email Sales@QuantumComposers.com Fax Phone Line (406) 582-0237 www.QuantumComposers.com V0.2...
