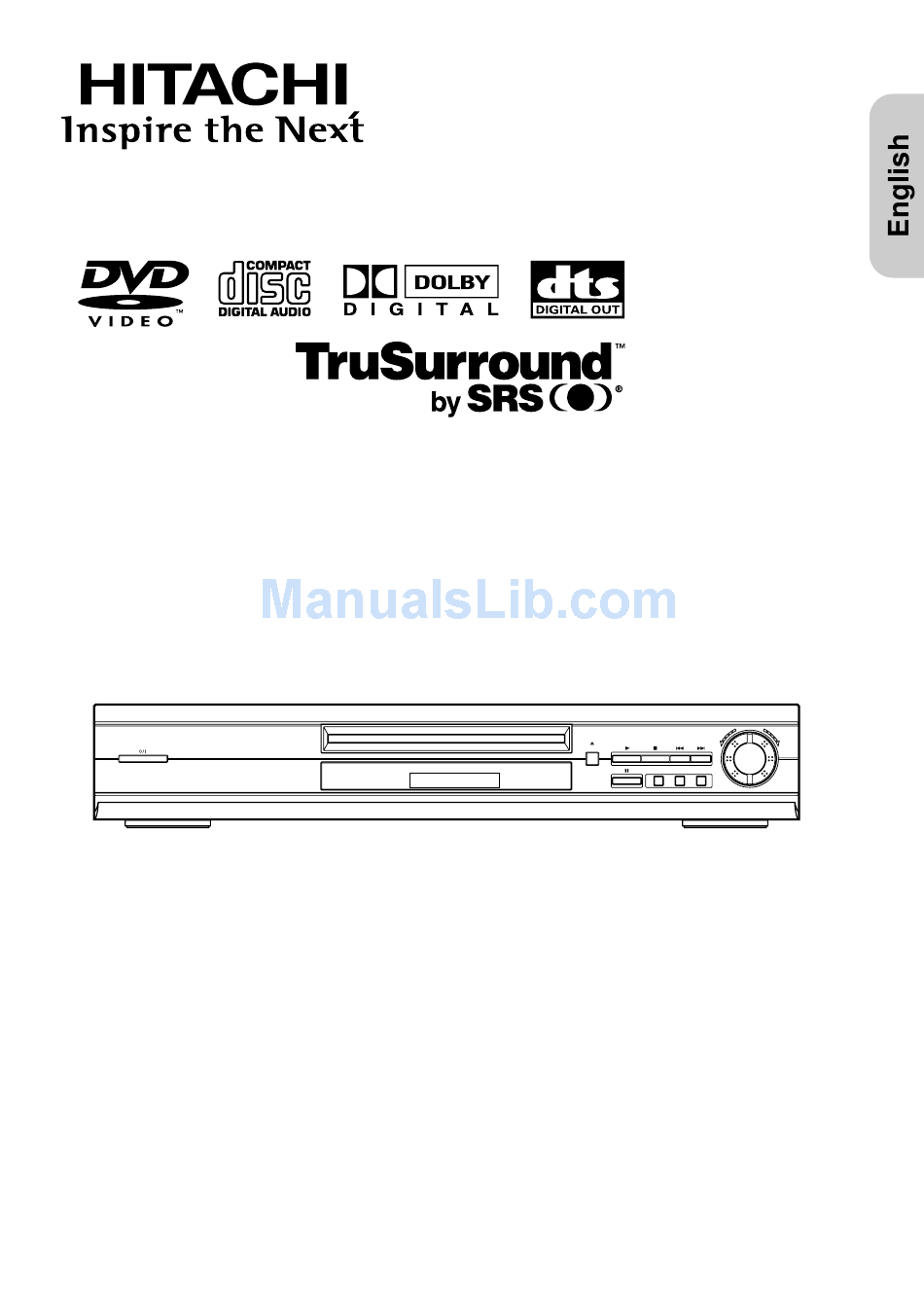

- Page 1 DVD PLAYER INSTRUCTION MANUAL MODEL DVP325E DVP325EUK OPEN / CLOSE SURROUND SUB TITLE AUDIO Instruction manual To obtain the best performance and ensure years of trouble- free use, please read this instruction manual completely.
-
Page 2: Laser Safety
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, CAUTION within an equilateral triangle, is intended to alert the user to the presence of uninsulated RISK OF ELECTRIC SHOCK “dangerous voltage”... -
Page 3: Important Safeguards
PRECAUTIONS IMPORTANT CAUTION Use only discs marked DVD or disc with this 1) Do not attempt to open the cabinet. There are DVD player. no parts you can service inside. Refer all ser- vicing to qualified service personnel. 2) Slot and openings in the cabinet and at the side POWER SUPPLY or bottom are provided for ventilation. -
Page 4: About Copyright
A NOTE ABOUT RECYCLING This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes. -
Page 5: Table Of Contents
TABLE OF CONTENTS LASER SAFETY ..................2 IMPORTANT SAFEGUARDS. -
Page 6: Features
FEATURES ¡ ¡ Dolby Digital sound On-screen display This player can handle Dolby Digital surround sound Information about the current operation can be displayed having 5.1 channels when connected to a Dolby Digital on a TV screen, allowing you to confirm the currently decoder. -
Page 7: About The Discs
ABOUT THE DISCS PLAYABLE DISCS DISC TYPES The following discs can be played back on this DVD [ DVD ] player. Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is Maximum Disc Type Logo... -
Page 8: Operating Controls And Functions
OPERATING CONTROLS AND FUNCTIONS FRONT PANEL 3 4 5 6 7 OPEN / CLOSE SURROUND SUB TITLE AUDIO REMOTE CONTROL 5. STOP Button [page 16] 6. SKIP DOWN/REV Button [page 17] Plays back from the beginning of the current SEARCH OPEN/ SURROUND MODE... - Page 9 POWER/STANDBY Button A-B REPEAT Button A-B REPEAT REPEAT Button REPEAT MODE Button MODE ZOOM Button ZOOM ANGLE Button ANGLE SUBTITLE Button SUBTITLE AUDIO Button AUDIO DISPLAY Button DISPLAY SURROUND Button SURROUND SEARCH MODE Button SEARCH MODE OPEN/CLOSE Button OPEN/ CLOSE NUMBER Buttons CLEAR Button CLEAR...
- Page 10 MENU Button MENU TOP MENU Button TOP MENU ENTER Button (UP/DOWN or LEFT/RIGHT Button) ENTER RETURN Button RETURN SETUP Button SETUP SKIP Buttons SKIP SEARCH Buttons SEARCH SEARCH STOP Button STOP PLAY Button PLAY PAUSE/STEP Button PAUSE/STEP – 10 – 2C01...
-
Page 11: Display
DISPLAYS DURING DISPLAY OPERATION Power on No disc inserted Tray open Tray closed Loading the Disc Power off LOADING THE BATTERIES 1. Open the battery compartment cover. 2. Insert two AA batteries, with each one oriented cor- rectly. 3. Close the cover. Notes ¡... -
Page 12: Hookups
HOOKUPS DESCRIPTION-REAR PANEL DIGITAL ANALOG S-VIDEO AUDIO OUT AUDIO OUT VIDEO OUT OPTICAL COAXIAL 1. DIGITAL AUDIO OUT JACKS: Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. Use to connect to a Dolby Digital decoder or DTS decoder. 2. -
Page 13: Connection To An Audio System
The following show examples of connections commonly used to connect the DVD player to TV and other components. Notes ¡ Be sure to turn off the power to all components in the system before connecting another component. ¡ Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the DVD player. -
Page 14: Connection To A Tv (For Video)
CONNECTION TO A TV (FOR VIDEO) Method 1 Method 2 Method 3 Basic Audio Good picture Better picture Best picture VIDEO IN S-VIDEO IN 21 pin Scart jack Euro AV Cable S-Video audio/video Cable Cable ANALOG S-VIDEO AUDIO OUT VIDEO OUT Analog Audio out Video out S-Video out... -
Page 15: Playing A Disc
PLAYING A DISC PLAYING A DVD VIDEO OR AN Notes AUDIO CD ¡ While the setup menu is shown you can not open or close the tray. ¡ A “prohibited icon” may appear at the top-right on the TV screen dur- Getting started ing operation, warning that a pro- Turn on the power of the TV, amplifier and any other... -
Page 16: Using The Title Menu
RESUMING PLAYBACK FROM USING THE TITLE MENU THE POINT WHERE PLAYBACK STOPPED With a DVD containing a title menu, you can select the desired titles from the menu. Press the STOP button during playback. Press the TOP MENU button. ¡ Playback will stop, and then appear the resuming ¡... -
Page 17: Fast Forward/Reverse
FAST FORWARD/REVERSE STARTING FROM A DESIRED TRACK There are 2 ways you can jump to a desired track. Press the FF SEARCH or FR SEARCH button during playback. By using only the NUMERIC buttons. ¡ For DVDs, pressing the FF SEARCH g or FR SEARCH h button cycles the playback speed in Directly enter the desired track number with four steps. -
Page 18: Starting From A Desired Time Count
CHAPTER SEARCH: Call back the marker Directly enter the desired chapter number- ¡ Using the cursor (s/ B) buttons, position the cursor with the numeric buttons when the disc is on to the marker number to be called back and press being played or paused. -
Page 19: A-B Repeat
Notes REPEAT No repeat playback. [OFF] ¡ With DVDs, the A-B repeat section can be set only within the current title. The current Track is REPEAT [TRACK] ¡ With audio CDs, the A-B repeat section can be set played back repeatedly. within the current track. -
Page 20: Zoom Playback (Enlargement Onscreen)
Notes Note ¡ ¡ Adding programmes is not possible during pro- Zooming function does not work while disc menu is gramme playback. You must stop the current play- shown. back before such operations can be carried out. PLAYING AN MP3 DISC ¡... -
Page 21: Changing The Onscreen Display During Mp3 Disc Play
Notes CHANGING THE ONSCREEN ¡ During play, a desired track can be directly searched. DISPLAY DURING MP3 DISC PLAY Just type in the TRACK number with the numeric buttons. ¡ If the typed TRACK number is not available, the The information on an MP3 disc in play can be “disable”... -
Page 22: Settings
Notes ¡ Press the s button to go back to the previous upper hierarchy. ¡ Press the CLEAR button, and the last-programmed entry will be deleted. ¡ If the entire program cannot be displayed at once on the screen, “ ”... -
Page 23: Changing The Subtitle Language
¡ The subtitle language resets to the one which has CHANGING THE SUBTITLE been selected in the setup mode, every time the LANGUAGE power is turned on or discs are replaced. If that language is not available on a disc, a language defined by the disc is selected. -
Page 24: Changing The On-Screen Display
CHANGING THE ON-SCREEN Press the DISPLAY button again. DISPLAY ALL 4/12 0:13:45 -0:45:40 ALL: TIME: Current track number Elapsed time of the / the number of total current disk and tracks. remaining time of You can check the information about the disc by the current disc. -
Page 25: Changing The Setup Items
CHANGING THE SETUP ITEMS DISC MENU: LANGUAGE SETTINGS SETUP MENU (The disc menu appears LANGUAGE OPTIONS in selected language.) 1.AUDIO ORIGINAL 2.SUBTITLE 3.DISC MENU ORIGNAL 4.PLAYER MEMU ENGLISH SELECT: SET: ENTER Press the SETUP button in STOP mode. EXIT: SETUP CANCEL: RETURN ¡... -
Page 26: Display Settings
FRONT DISPLAY (Default DISPLAY SETTINGS : BRIGHT) SETUP MENU Adjust the brightness of the DISPLAY OPTIONS display of the unit. 1.TV ASPECT 4:3 L-BOX 2.FRONT DISPLAY BRIGHT AUTO DIM: Stays dim only 3.ANGLE MARK during playback. 4.AUTO POWER OFF ON Press the SETUP button in STOP mode. -
Page 27: Audio Settings
DTS (Default : OFF) AUDIO SETTINGS BITSTREAM : Output DTS sound Set to BITSTREAM when the unit is connected to DTS Decoder. Press the SETUP button in STOP mode. SETUP MENU AUDIO OPTIONS ¡ The setup screen will 1.DRC 2.DOLBY DIGITAL BITSTREAM SETUP MENU appear. -
Page 28: Parental Lock
When Parental Level is selected PARENTAL LOCK ¡ Press the buttons to select an item from ALL or 8 to 1, and then press the ENTER button. Press the SETUP button in STOP mode. SETUP MENU PARENTAL CONTROL ¡ The setup screen will appear. 1.RATING LEVEL 2.CHANGE SETUP MENU... -
Page 29: Language Code List
LANGUAGE CODE LIST Language Country code Language Country code Afar 4 7 4 7 Latvian;Lettish 5 8 6 8 Abkhazian 4 7 4 8 Malagasy 5 9 5 3 Afrikaans 4 7 5 2 Maori 5 9 5 5 Amharic 4 7 5 9 Macedonian 5 9 5 7... -
Page 30: Troubleshooting Guide
TROUBLESHOOTING GUIDE If the DVD player does not perform properly when operated as instructed in this Instruction Manual, check the player by consulting the following checklist. Remedy Symptom Cause ¡ Insert the power plug firmly into the wall outlet. ¡ Loose power plug. -
Page 31: Handling Precautions
HANDLING PRECAUTIONS SERVICING CABINET CLEANING ¡ Should your DVD player become inoperative, do not Wipe the front panel and other exterior surfaces of try to correct the problem by yourself. There are no the DVD player with a soft cloth immersed in user-serviceable parts inside. -
Page 32: Specifications
SPECIFICATIONS Product type : DVD Player Discs : DVD video Audio CD Output signal format : PAL colour Frequency response DVD (linear sound) : 20 Hz to 22 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) CD : 20 Hz to 20 kHz Signal-to-noise ratio (S/N ratio) - Page 33 PLEASE PHOTOCOPY AND DISPLAY Used correctly, domestic batteries are a safe and dependable source of portable power. Problems can occur if they are misused or abused — resulting in leakage or, in extreme cases, fire or explosion. Here are some simple guidelines to safe battery use designed to eliminate any such problems.
