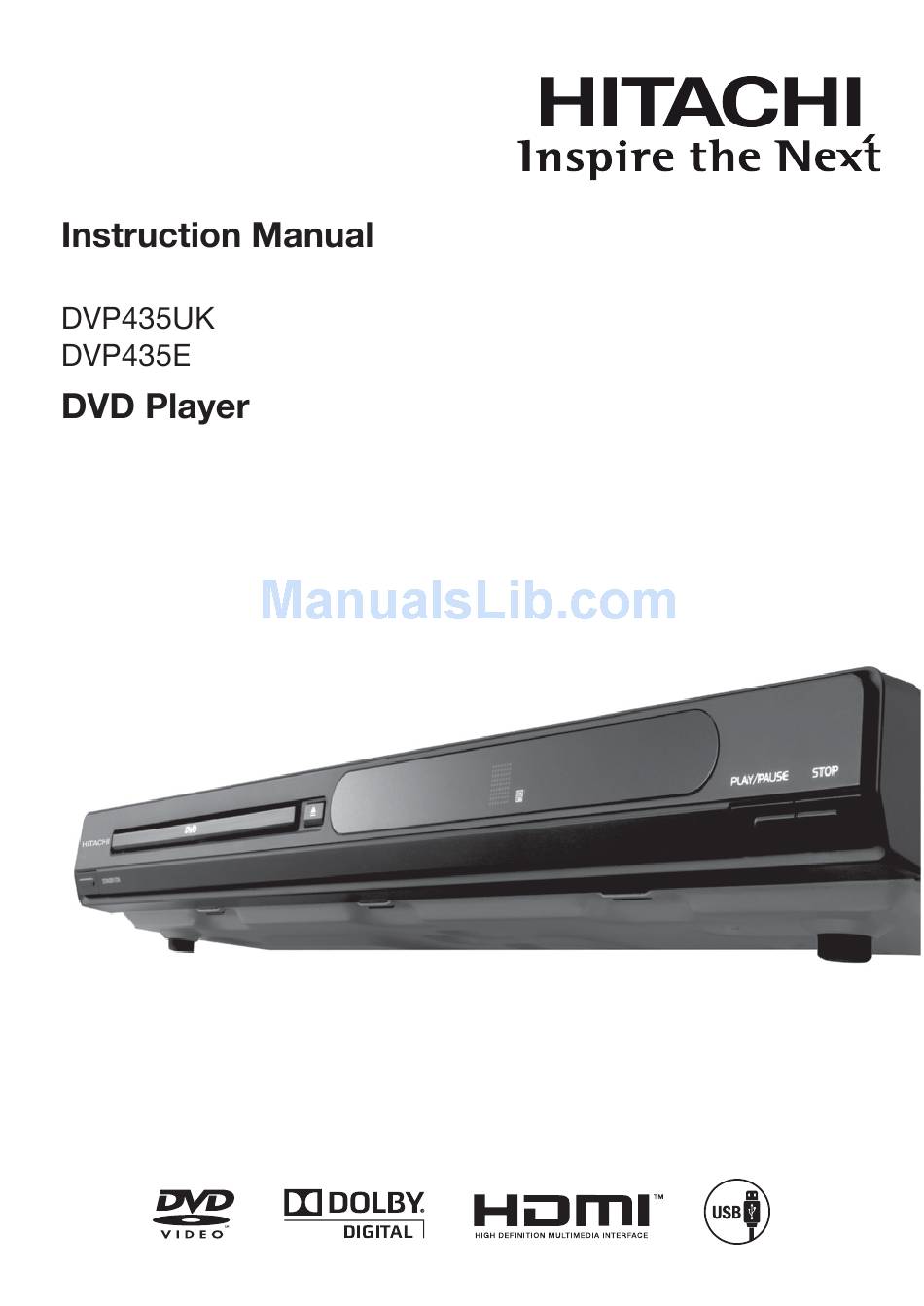

Hitachi DVP435UK Instruction Manual
  1. Manuals
  2. Brands
  3. Hitachi Manuals
  4. DVD Player
  5. DVP435UK
  6. Instruction manual

Hitachi DVP435UK Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Hitachi DVP435UK

Summary of Contents for Hitachi DVP435UK

  • Page 2: Safety Warnings

    Moisture Safety Warnings To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping Read all the instructions carefully or splashing. No objects filled with before using the unit and keep them liquids, such as vases, should be for future reference.
  • Page 3 Standby Failure to do so will risk severely damaging the disc and the unit. button on the remote control does not switch off the unit Do not stack devices, heat from other completely. The unit will continue to devices may affect the performance of draw electricity from the mains supply the unit.

  • Page 4: Electrical Information

    Electrical Information Before using this appliance ensure that the voltage of your electricity supply is suitable for that indicated on the rating plate of the appliance. The ultimate disconnection from the power source is the mains plug. Always make sure it is easily accessible to be unplugged in the event of an emergency. This appliance is fitted with a fused three pin mains plug to BS 1363 which will be suitable for use in all houses fitted with mains sockets to current specifications.

  • Page 5: Table Of Contents

    Contents Safety Warnings......................2 Safety Information and Precaution ....................2 Electrical Information ........................4 Contents ........................5 Unpacking the DVD Player ..................7 Product Overview......................8 Front Panel ............................8 Rear Panel..............................9 Remote Control ..........................10 Installating the Batteries ....................... 12 Handling the Remote Control..................... 13 Remote Control Operation Range..................... 13 Connection.........................
  • Page 6 Title ............................... 20 Subtitle Language ........................... 20 Repeat..............................20 A-B Repeat............................20 Clear..............................20 Zoom..............................20 Angle ..............................21 Audio Channel ..........................21 JPEG Disc Playback.......................... 21 USB Function............................. 21 System Setup ......................22 General Setup Page ........................22 Audio Setup Page ..........................23 Dolby Digital Setup Page......................

  • Page 7: Unpacking The Dvd Player

    Unpacking the DVD Player Remove all packaging from DVD Player. Retain the packaging. If you dispose it please do so according to local regulations. DVD Player Remote Control Part number 1-3000-A602-0000-R Instruction Manual Quick Start Guide Part number Part number 1-3090-A602-0000-R 1-3010-A599-0000-R If items are missing or damaged, please contact Partmaster (UK only).

  • Page 8: Product Overview

    Product Overview Front Panel PLAY/PAUSE STOP STANDBY/ON Control Function STANDBY/ON button Turn the power on or restores the DVD player to standby mode. Power Indicator Illuminate green when the DVD player is power on. Illuminate red when the DVD player is in standby mode.

  • Page 9: Rear Panel

    Rear Panel DVD PLAYER Dolby and the double-D symbol are registered CLASS 1 LASER PRODUCT trademarks of Dolby Laboratories. MODEL: DVP435U AC: 110V-240V~ 50/60Hz HDMI 110V-240V~ 50/60Hz SCART OUTPUT U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; RISK OF ELECTRIC SHOCK S/N: POWER: 12W 6,516,132;...

  • Page 10: Remote Control

    Remote Control DVD/USB SUBTITLE SEARCH TITLE REPEAT A-B RPT CLEA ANGLE SETUP MENU ZOOM PROG F.REV F.FWD PREV NEXT PAUSE/STEP STOP AUDIO MUTE VOLUME Control Function OPEN/CLOSE To open or close the DVD disc tray. DVD/USB To switch between DVD and USB as the input source. OSD (On screen To display information of the disc.
  • Page 11 Control Function TITLE To go back to previous menu or show title menu. SEARCH To search and start playback from selected point on the disc. REPEAT To select between different repeat modes – REPEAT CHAPTER, REPEAT TITLE, REPEAT ALL. A-B RPT To repeat playback between 2 particular points on a disc.

  • Page 12: Installating The Batteries

    Installating the Batteries Press and lift the back cover up to open the battery compartment of the remote control. Insert two AAA size batteries (not supplied). Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment. Close the battery compartment cover.

  • Page 13: Handling The Remote Control

    Handling the Remote Control Take care of your fingernails when you press and hold the battery release tab. To avoid possible failure, read the following instructions and handle the remote control properly. Do not drop or cause impact to the remote control. Do not spill water or any liquid on the remote control.

  • Page 14: Connection

    Connections Television To SCART input DVD PLAYER CLASS 1 LASER PRODUCT Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. MODEL: DVP435U AC: 110V-240V~ 50/60Hz HDMI 110V-240V~ 50/60Hz SCART OUTPUT U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; RISK OF ELECTRIC SHOCK S/N: POWER: 12W 6,516,132;...

  • Page 15: Connecting To The Mains Socket

    Connecting to the Mains Socket After all connection are properly completed, connect the mains cable into the mains socket. Never make or change any connections when the DVD player are connected to the mains socket. For DVP435UK Press the STANDBY/ON button on the DVD player or the button on the remote control to turn the DVD player on.

  • Page 16: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format AUDIO + VIDEO + JPEG...

  • Page 17: Start Up

    Start Up Press the STANDBY/ON button on the DVD player or remote control. Turn on the TV and select the video input connected to the DVD player. Basic Playback Press the OPEN/CLOSE button to open the disc tray, place a disc into the disc tray with the label facing up.

  • Page 18: Fast Forward And Fast Reverse

    Fast Forward and Fast Reverse Press the F.FWD button to fast forward through the disc. Each time the F.FWD button is pressed, the fast forward motion speed changes. Press the ENTER/PLAY button to resume normal playback. Press the F.REV button to fast reverse through the disc. Each time the F.REV button is pressed, the fast reverse motion speed changes.

  • Page 19: Advanced Playback

    Advanced Playback The following functions are applicable only to DVD discs. If other disc formats are played, the screen display and operation will be different. DVD/USB Press DVD/USB button to display the screen menu. Press the buttons on the remote control to navigate in the menu, and then press the ENTER/PLAY button to make your selection.

  • Page 20: Title

    Title With some DVD discs, press the TITLE button to display the title menu, you can press digits to select the chapters preferred. Press the ENTER/PLAY button to play. (Depending on the DVDs) Subtitle Language Press the SUBTITLE button repeatedly to switch between different subtitle languages that are available in the disc.

  • Page 21: Angle

    Angle Press the ANGLE button repeatedly to switch between different camera angles that are available in the disc. Audio Channel Press the AUDIO button on remote control repeatedly to change the mode of audio. For example: Audio 1/2: D D 2 CH English Audio 2/2: D D 5.1 CH English The number of audios tracks depend on the disc.

  • Page 22: System Setup

    System Setup When you press the SETUP button on the remote control, the setup menu will be displayed. Within the setup menu, you can use the buttons on the remote control to move the cursor, and then press the ENTER/PLAY button to make your selection.

  • Page 23: Audio Setup Page

    Angle Mark You can select a particular camera angle when playing a DVD that offers multiple angles. OSD (On Screen Display) Language Allows you to select the setup menu and OSD language. Captions For hearing-impaired people, the program can be displayed with recorded explanatory captions.

  • Page 24: Dolby Digital Setup Page

    Speaker Setup Page Downmix Setup Dolby D General Audio Video Preferen Set front speakers to Lt/Rt or Stereo. Speaker Setup Page Downmix Lt/Rt Lt/Rt Lt / Rt Stereo Select this option if your DVD player is connected to a Dolby decoder. Stereo Set Downmix Mode Select this option to change channel output...

  • Page 25: Video Setup Page

    4. Video Setup Page Video Output General Audio Dolby D Video Preferen Video Setup Page Set the video output. RGB and CVBS video Scart Output CVBS signal can be set. Resolution Quality HDMI Setup Resolution Setup Page You can select the resolution output of the Go To Video Setup Page player from HDMI to match your TV.

  • Page 26: Hdmi Setup Page

    5. HDMI Setup Page HDMI Setup General Audio Dolby D Video Preferen HDMI Setup You can turn HDMI output On or Off. HDMI Setup Audio Source Auto Audio Source You can set the audio source as Auto or PCM (Pulse Code Modulation). HDMI Setup 6.

  • Page 27: Password Mode

    Parental This feature allows you to block disc playback with specific ratings. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or you can have certain discs played with alternative scenes.

  • Page 28: Maintenance

    Maintenance Handling Discs Do not touch the playback side of the disc. Do not attach paper or tape to disc. Playback side Cleaning Discs Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean. If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

  • Page 29: Troubleshooting

    Troubleshooting PROBLEM SOLUTION No operation can Check the batteries in the remote control. They may need be performed with replacing. the remote control. Operate the remote control at a distance of no more than 6m. Removes batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it.

  • Page 30: Specifications

    PROBLEM SOLUTION The DVD player Insert a readable discs with the playback side facing down. does not start the Check the disc type, colour system (PAL/NTSC) and region playback. code. Check for any scratches or smudges on the disc. Press SETUP button to turn off the setup menu . Enter the password in order to change the parental rating level or to unlock the disc for playback.
  • Page 31 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 1-3000-A602-0000-R Instruction Manual 1-3090-A602-0000-R Quick Start Guide 1-3010-A599-0000-R Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
